Before entering the vehicle, you can use the smart key to unlock the vehicle. Depending on the state of the smart key and the surrounding environment of the vehicle, the furthest effective range of the smart key is 30-70 meters outside the vehicle.

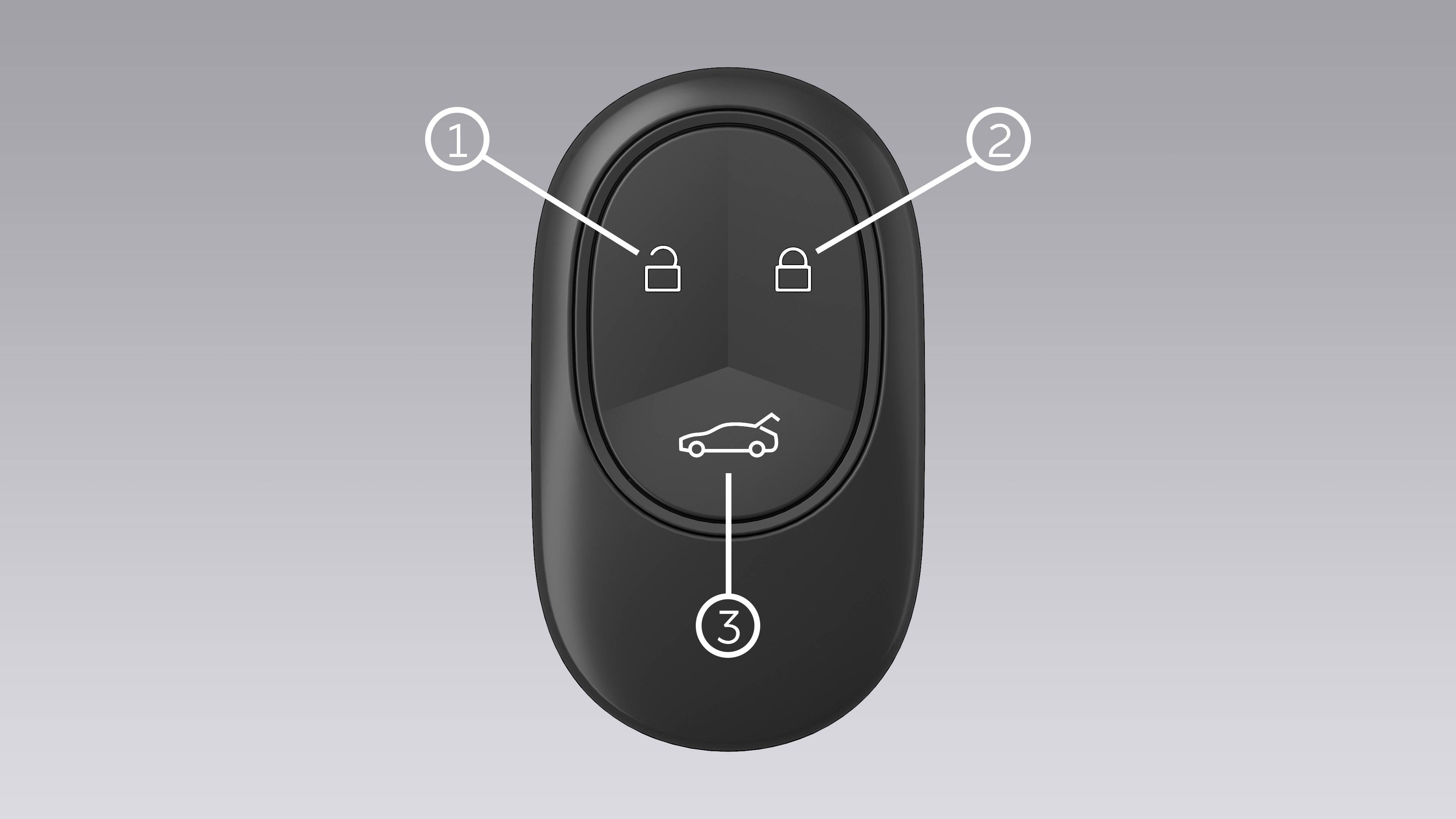

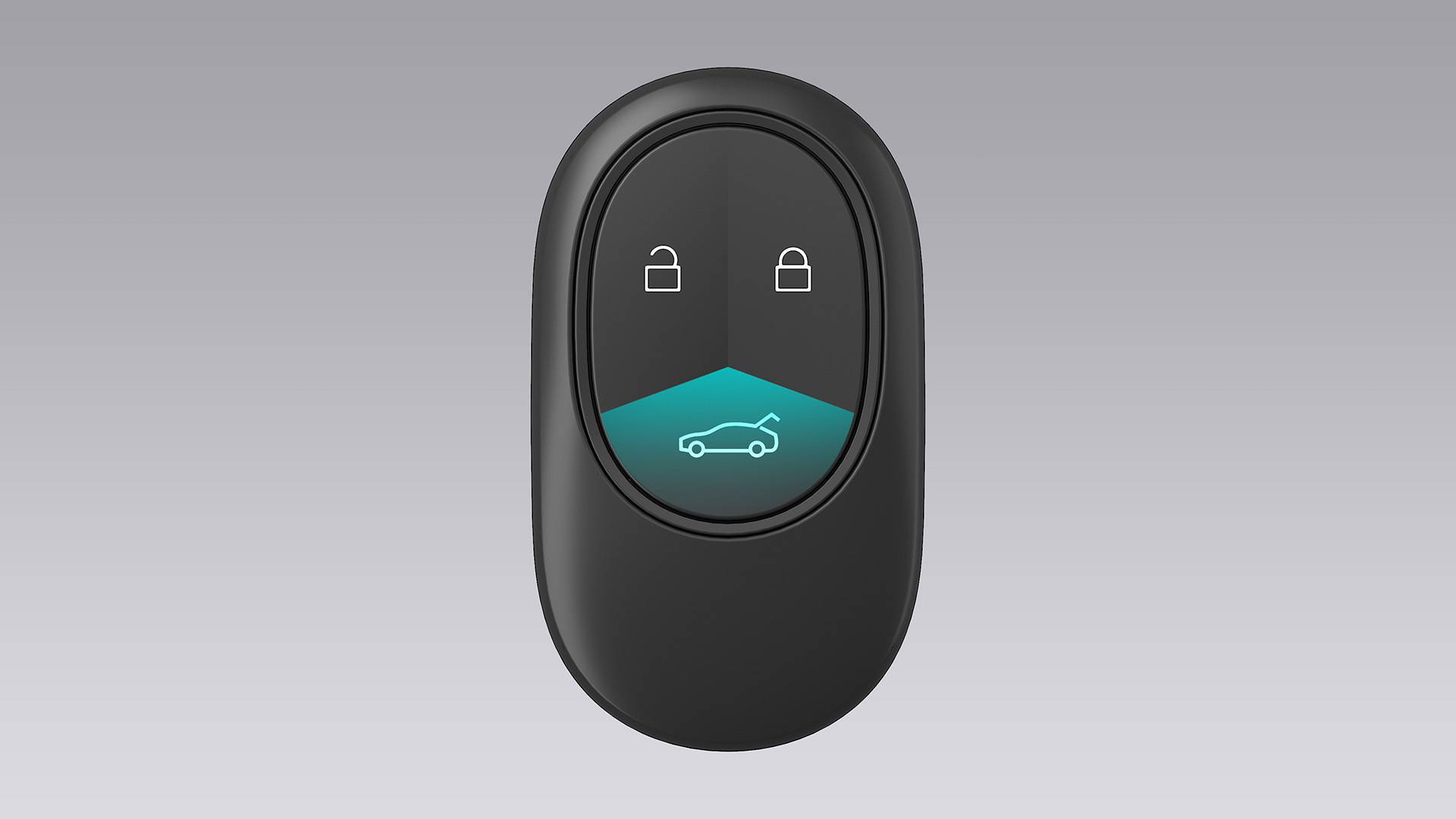

The buttons and features of the smart key are as follows:

1. Vehicle Unlock Button

   • When the vehicle is in P gear, press this button to unlock the vehicle. After unlocking, the turn lights on both sides of the vehicle will flash three times to indicate successful unlocking. After successful unlocking, the outer door handles will automatically pop up.

   • After unlocking the four doors with the smart key, the liftgate can be opened from the outside without a key.

   • Press+hold the unlock button to open all the windows at the same time; release the unlock button during the movement of the windows and the windows will stay at the current position.

   • You can set the unlocking method of the smart key through the center display: enter the Settings interface from the control bar at the bottom of the center display, and tap Doors and Windows Lock > Doors > Vehicle Unlock Mode.

     • If you select "Unlock the Whole Vehicle", you only need to press the key‘s unlock button once to unlock all the doors at the same time;

     • If you select "Unlock the Driver's Door", you can press the key's unlock button once to open only the driver's door and once again to open the other three doors is possible.

2. Vehicle Lock Button

   • When the vehicle is in P gear and all doors (including the hood and liftgate) are closed, press this button to lock the whole vehicle. After the whole vehicle is locked, the turn lights on both sides will flash once and the horn will sound once to indicate the successful locking. At the same time, the outer door handles are retracted, and the side mirrors are automatically folded (enter the Settings interface in the control bar at the bottom of the center display, and tap Position Adjustment > Side Mirrors > Auto-Fold When Vehicle is Locked to set the automatic folding of side mirrors).

   • The locked liftgate can only be opened from the outside with the smart key.

   • You can set the on/off of the horn prompt sound through the center display by entering the Settings interface in the control bar at the bottom of the center display, and tapping Sound > RINGER and ALERTS > Lock Confirmation Sound.

   • Press+hold the lock button to close all the windows at the same time; release the lock button during the window movement and the windows will stay in the current position.

   • When the vehicle is not in driving state and the valid smart key is within 70 meters from the vehicle, you can press it twice within 3 seconds to start the Find My Car feature, and the turn lights and horn will give prompts. Pressing this button once more within 5 seconds, Find My Car will not remind you again; otherwise, it will turn off on its own after 10 seconds.

   • When all the doors are closed, you can press the lock button of the smart key outside the car. At this time, the car is locked. The turn lights will flash once and the horn will sound once to indicate that the locking is successful. If any door is not closed, the vehicle cannot be locked by pressing the lock button at this time, and you will receive a reminder message from the NIO App, reminding you that the vehicle has not been successfully locked.

3. Liftgate Open Button

   When the liftgate is closed, press+hold this button to open the liftgate; when the liftgate is open, press+hold this button again to close the liftgate.

To facilitate the operation of locking the vehicle when the vehicle is in the parked state, you can enter the Settings interface in the control bar at the bottom of the center display, and tap Doors and Windows Lock > Windows > Auto Close When Locking, so that when you use the external locking method (such as smart key, NFC, NIO App, Keyless Locking and Walk Away Lock) to lock the vehicle, it can automatically close all the windows of the vehicle, and has an anti-pinch feature during the closing process. The window closing operation will halt if the smart key or the Unlocking and Locking with NIO App button is pressed in the middle of it.

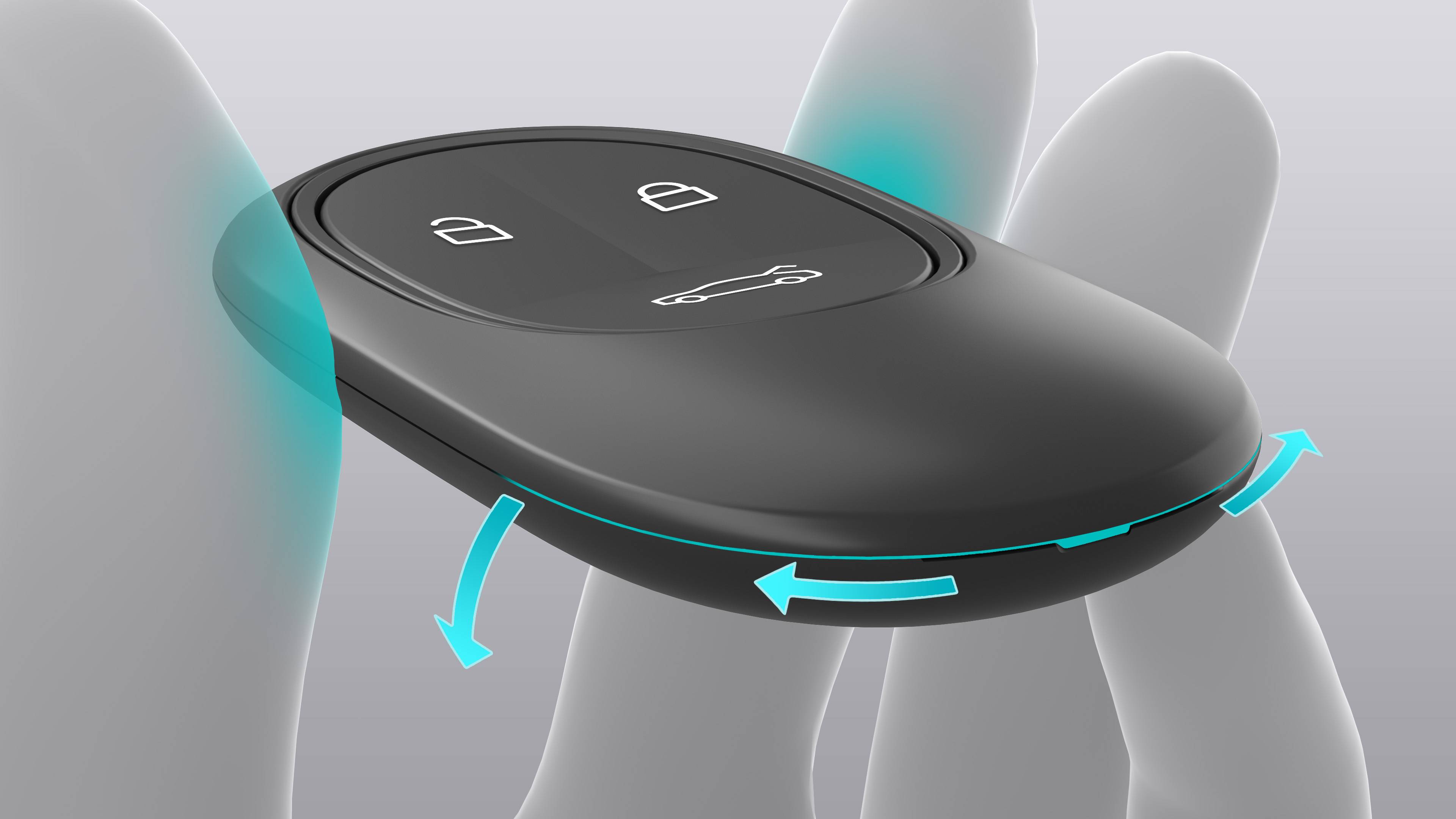

The smart key fob uses a CR2477 coin cell battery. To replace the battery, please pinch the sides of the key fob firmly between fingers, and slide your fingernail or a thin plastic sheet from the bottom gap along the side slit of the key fob until the rear cover can be opened.

Dispose of used batteries according to instructions and local laws. Please see the NIO website for details.

Install the coin cell battery with the positive terminal facing down. After installing, align the battery's contacts, and then close the rear cover properly to ensure proper use of the key fob.

Finding the vehicle when it is far away

You, or the authorized user, can check the parking location information of the vehicle in the mobile App to experience the convenience of finding the vehicle. When the vehicle is connected to the network, you can check the current location where the vehicle is parked at the top of the "My Vehicle" interface in the mobile App. Tap this location information to view the current location of the vehicle on the map interface.

Finding the vehicle when it is nearby

When the vehicle is not in driving state and the valid key is within 70 meters of the vehicle (varies depending on the status of the smart key and the surrounding environment of the vehicle), press the lock button on the smart key twice within a span of 3 seconds, and the vehicle horn will emit a sound and the turn lights will flash to alert you of the precise location of the vehicle. Pressing this button once more within 5 seconds, Find My Car will not remind you again; otherwise, it will turn off on its own after 10 seconds.

When the Bluetooth key feature of the mobile phone is turned on or the vehicle is connected to the network, you can also tap the "Find My Car" button on the "My Vehicle" interface in the mobile App to search for the vehicle, which will trigger the vehicle's horn to emit a sound and the turn light to flash. Press this button again to cancel the Find My Car prompting.

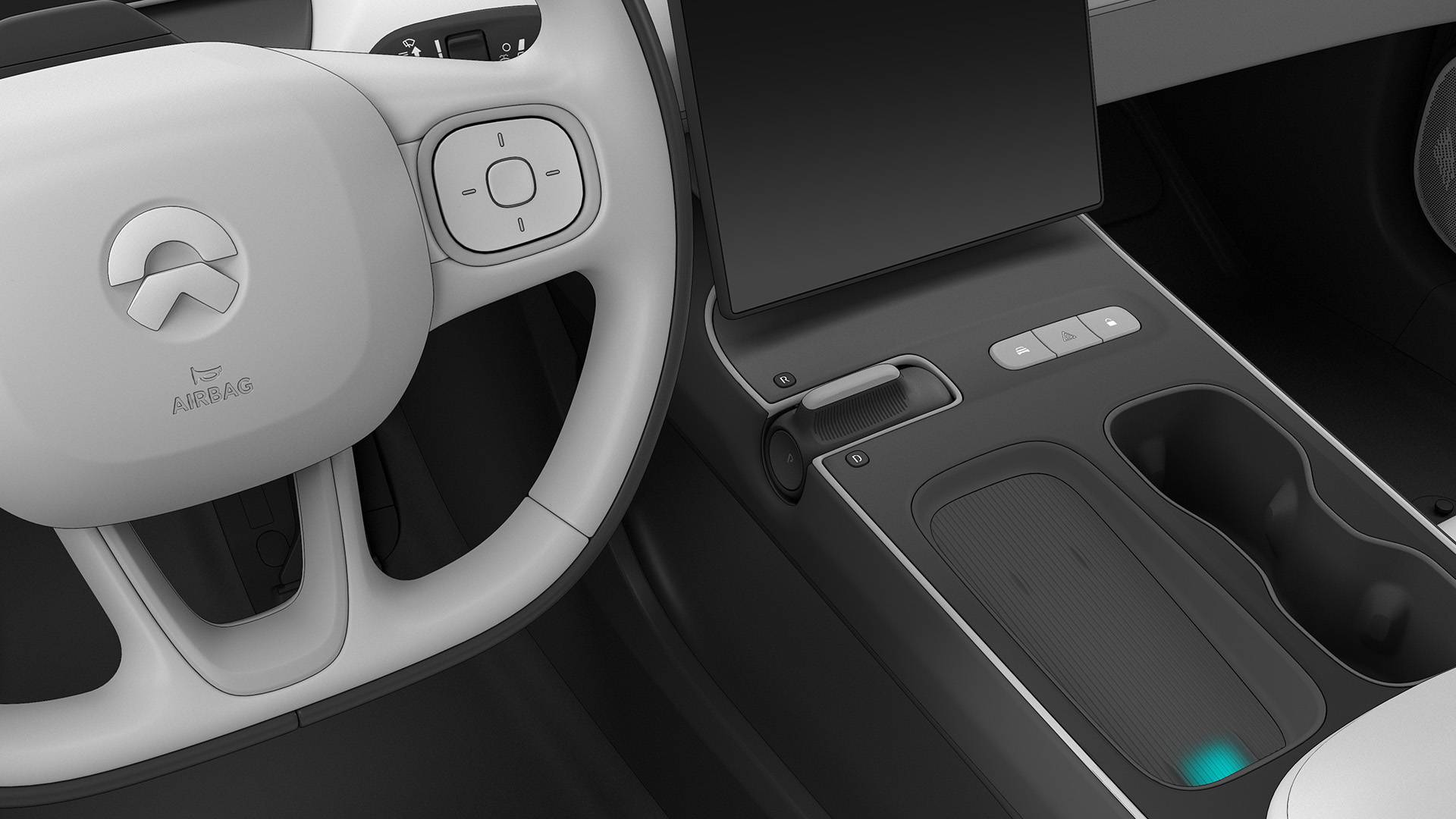

You can lock or unlock the vehicle with the lock button on the center console.

When the vehicle is fully unlocked and all doors are closed, press the lock button on the center console to lock the vehicle. The center display will display the locked status of the vehicle, and the LED on the button will light up green.

When the vehicle is fully locked (not from the outside) or only the driver's door is unlocked, press the lock button on the center console to unlock the vehicle. The center display will display the unlocked status of the vehicle, and the LED on the button will go off.

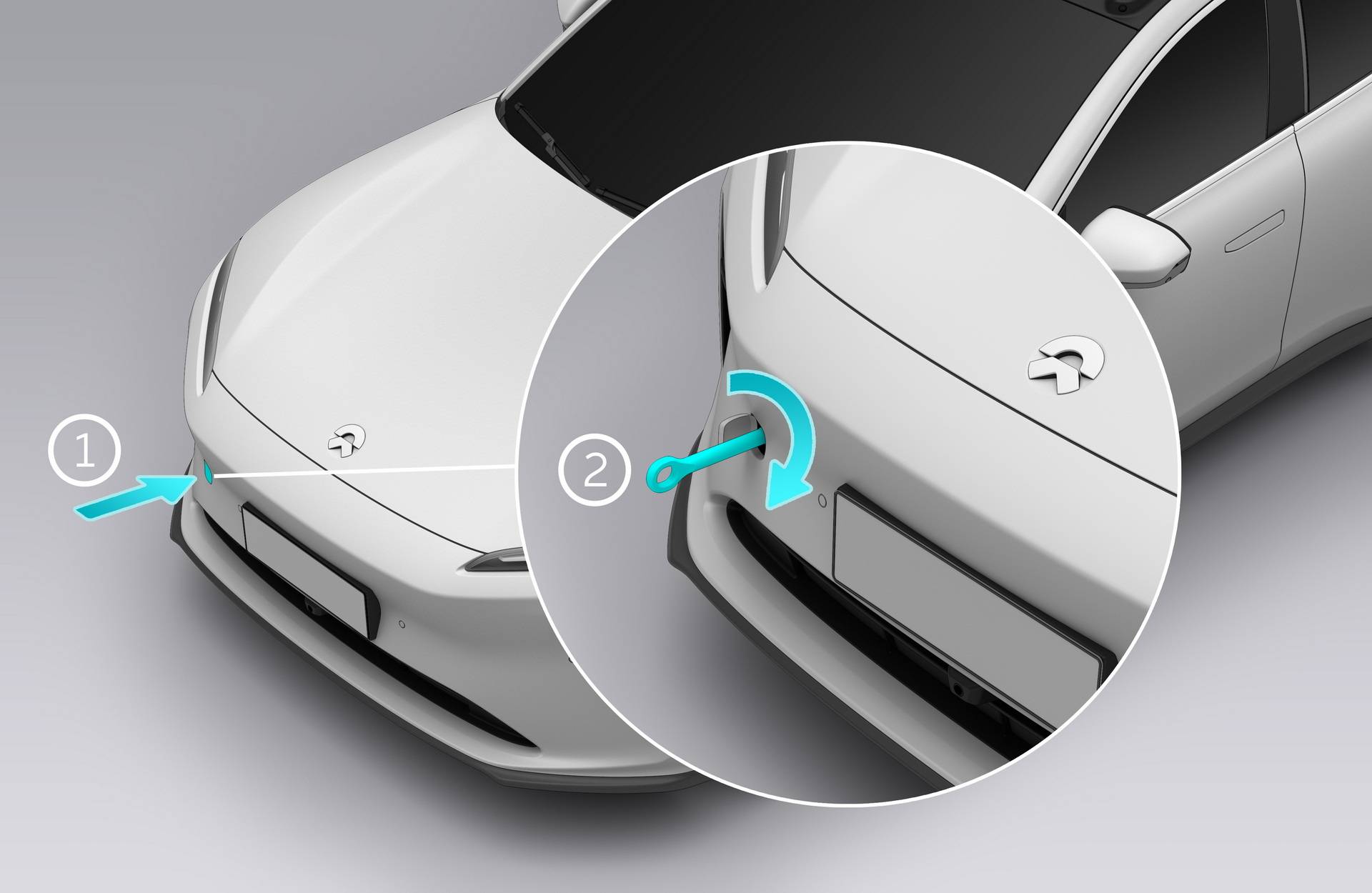

Unlocking/Locking the Vehicle from Outside in an Emergency

When the vehicle cannot be unlocked or locked using the above conventional methods from the outside, you can use the physical emergency key to unlock or lock the driver's door.

When the battery of the vehicle is depleted, the physical emergency key can only lock the driver's door. If you want to lock the other doors, toggle down the door lock hole, and simply close the door to lock it. However, in such a situation, the door cannot be opened from the outside.

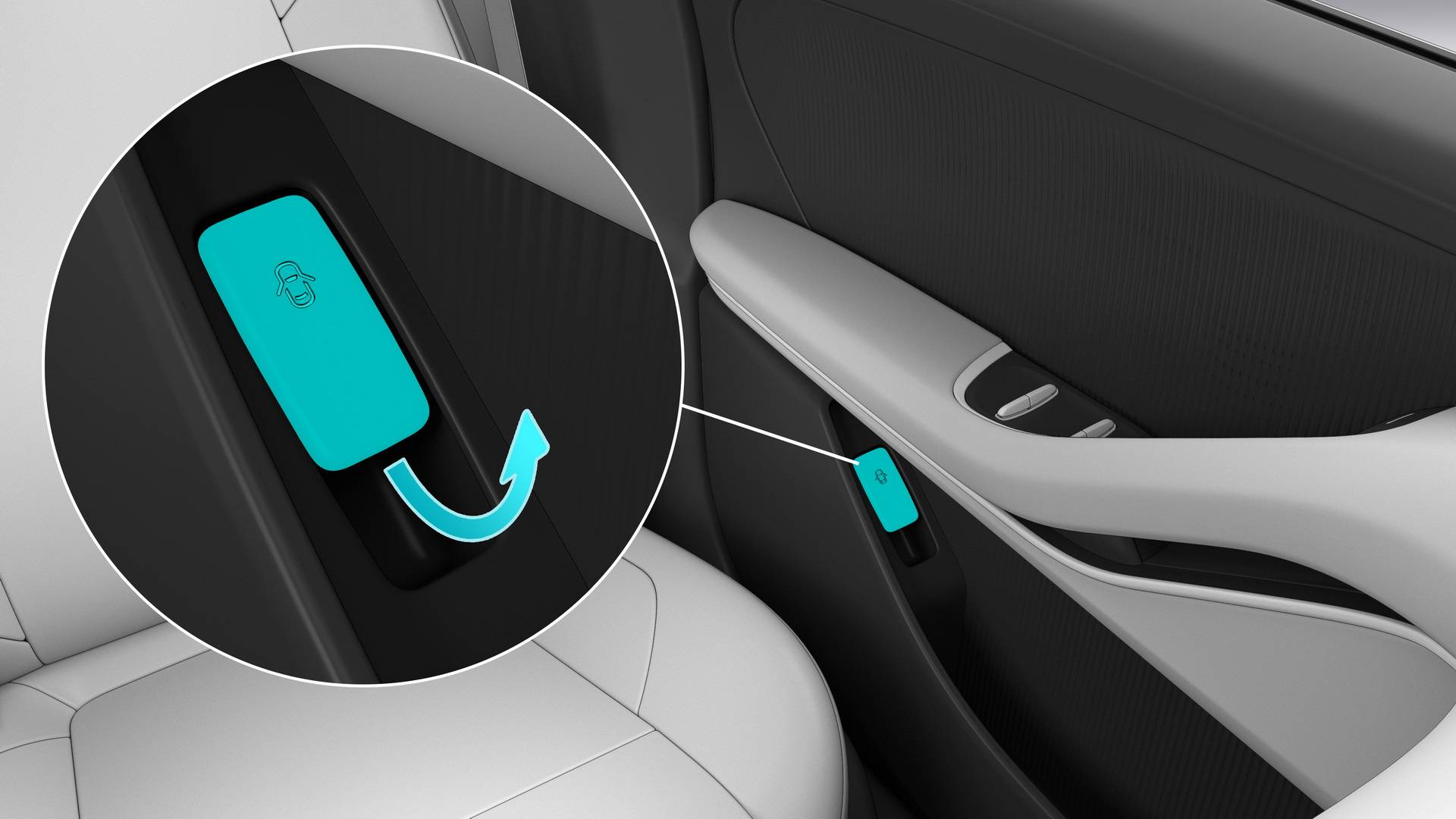

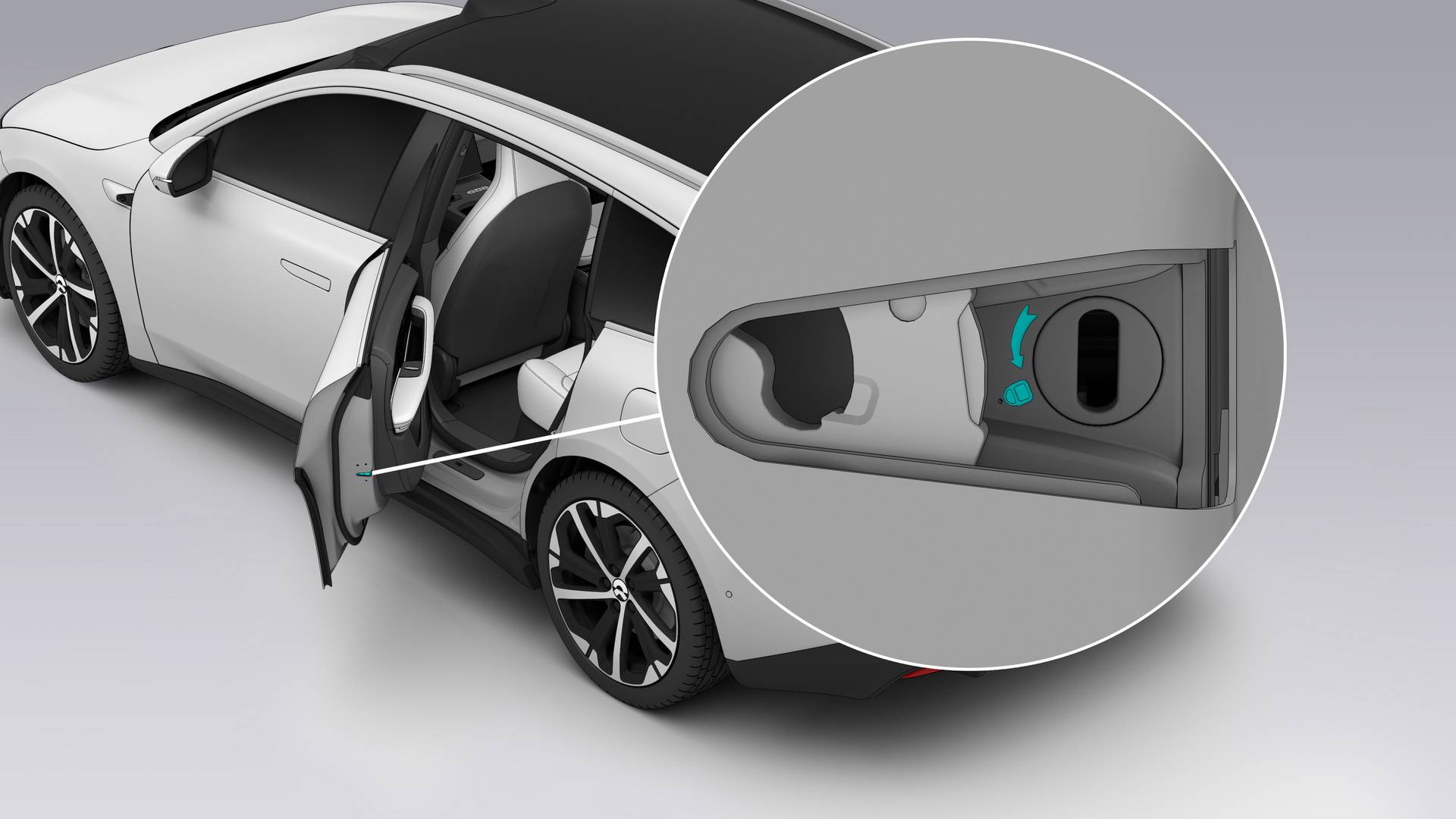

Emergency Unlocking from Inside

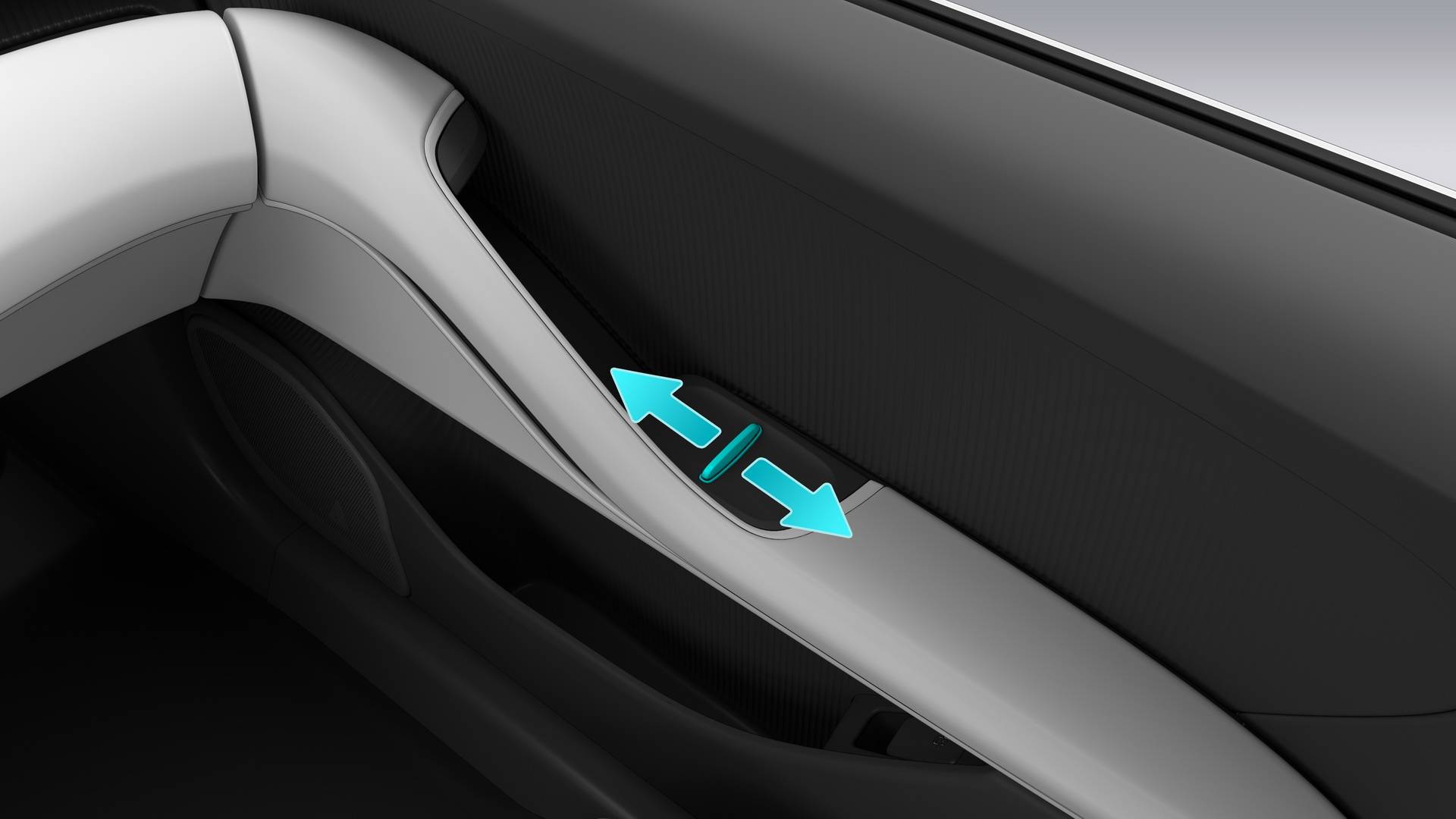

When the whole vehicle is locked, if you need to open the door in an emergency (such as when the door handle electronic switch fails, or the vehicle is soaked in water), pull the mechanical switch of the inner door handle once to open the corresponding side door.

Opening and Closing the Liftgate by Pressing the Button

When you carry the smart key, lightly press the button on the handle of the liftgate to open the liftgate.

During the opening of the liftgate, press+hold the liftgate button for a few seconds, and the height of the liftgate at that moment can be automatically memorized.

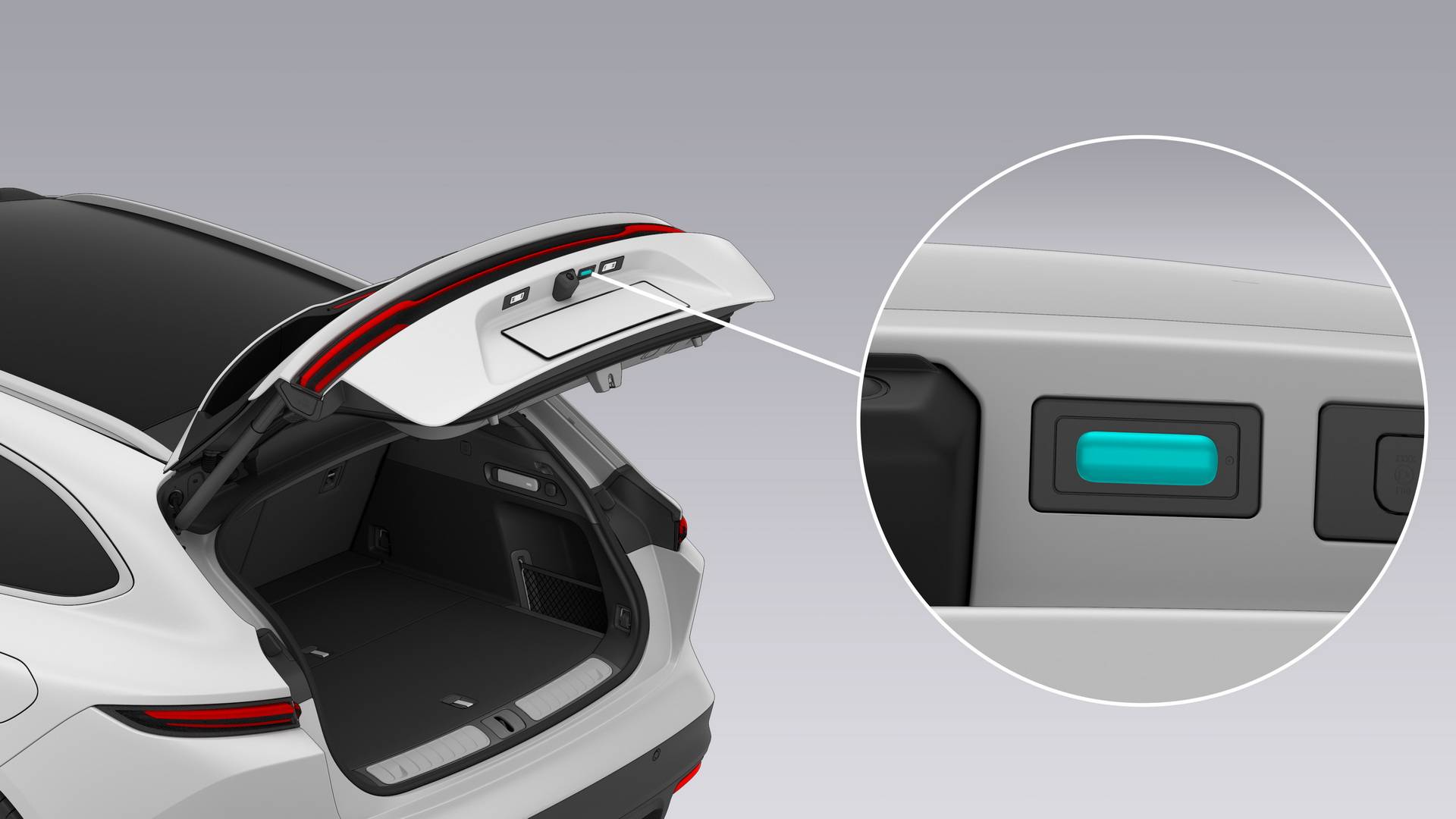

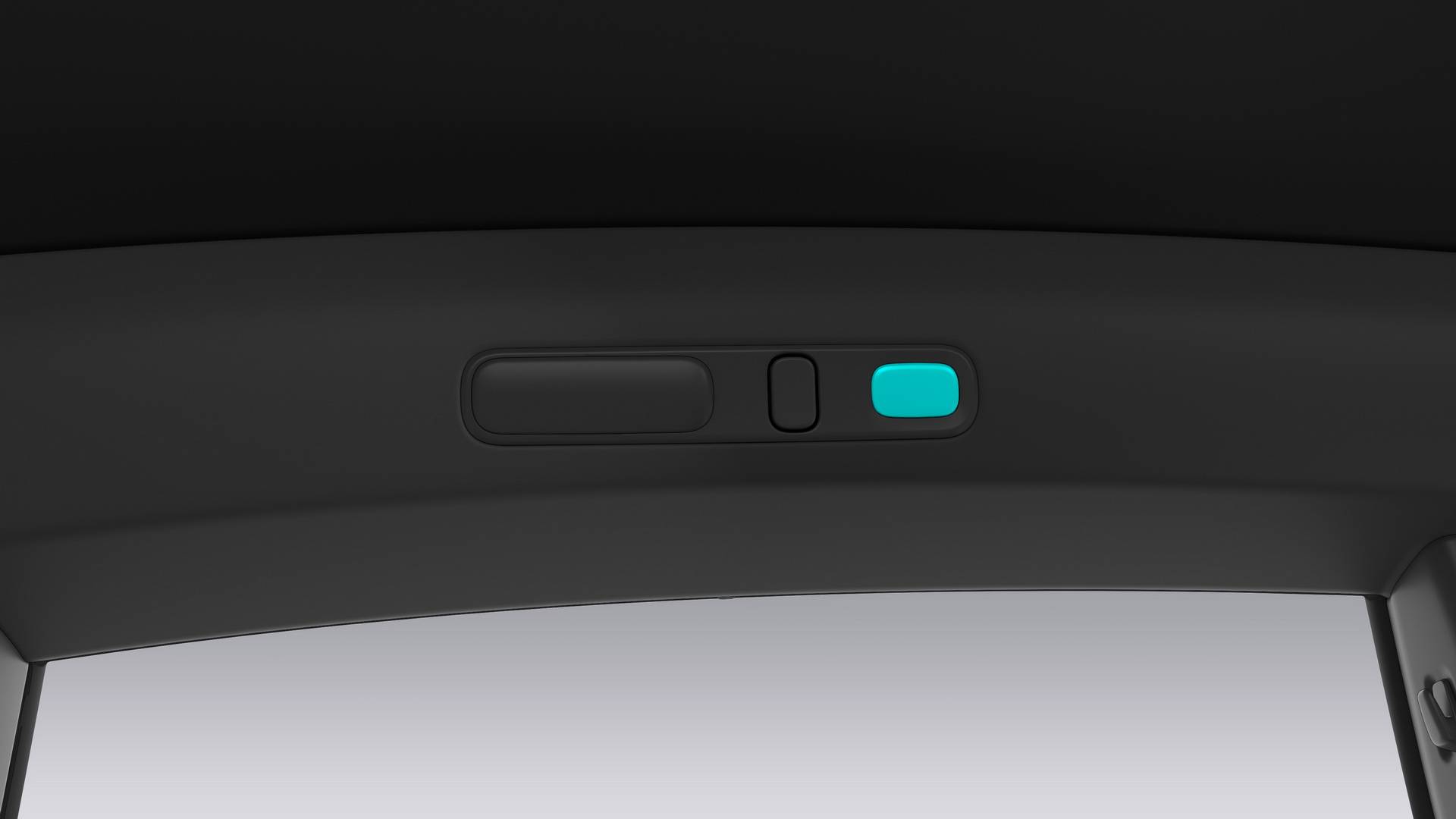

Your vehicle is equipped with a one-button liftgate closing feature.

Press the button on the liftgate to automatically close and lock the liftgate, and you will hear a "click" to confirm the closure.

Opening and Closing the Liftgate with the Center Display

Swipe right on the left edge of the center display to enter the Quick Access interface, then tap Rear Trunk to open the liftgate.

Opening the liftgate: press+hold Press+Hold to Open, and the liftgate will open automatically.

Closing the liftgate: press+hold Press+Hold to Close, and the liftgate will close automatically.

During the opening or closing of the liftgate, tap the liftgate opening or closing button, and the movement will stop.

Opening and Closing the Liftgate with the Smart Key

Opening the liftgate: press+hold the liftgate button on the smart key, and the liftgate will open automatically.

Closing the liftgate: press+hold the liftgate button on the smart key, and the liftgate will close automatically.

Opening and Closing the Liftgate in the Mobile App

When the vehicle is put in Park and the doors are closed, you can open the My Vehicle interface in the NIO mobile App, and tap the Rear Trunk button to open the liftgate. It will prompt you that rear trunk has been opened. Tap the highlighted Rear Trunk button again to close the rear trunk. If it is blocked during the closing process, it will prompt you that the rear trunk has failed to close.

Opening and Closing the Liftgate by a Kicking Action

When your hands are occupied or it is inconvenient for you to take out the key, you can open the liftgate by kicking under the rear bumper.

In the middle of the rear bumper, lift a foot up close to the rear bumper and kick the forefoot into the rear bumper at least 10 cm deep, then retract quickly to open the liftgate; or sweep your forefoot sideways from one side to the other at least 10 cm below the rear bumper to open the liftgate.

You must have your mobile Bluetooth key or smart key with you to open the liftgate with a kicking action.

To avoid accidental opening caused by someone near the rear trunk, you can enter the Settings interface from the bottom of the center display, tap Doors and Windows Lock > Hands-Free Liftgate, and turn off the liftgate kick open/close feature.

This feature may be temporarily disabled in situations that include but are not limited to the following:

• Frequent opening and closing

• A lingering leg

• When the kicking is not within the valid detection range

If the liftgate does not respond, wait a few seconds and try again, or use other methods to open or close the liftgate.

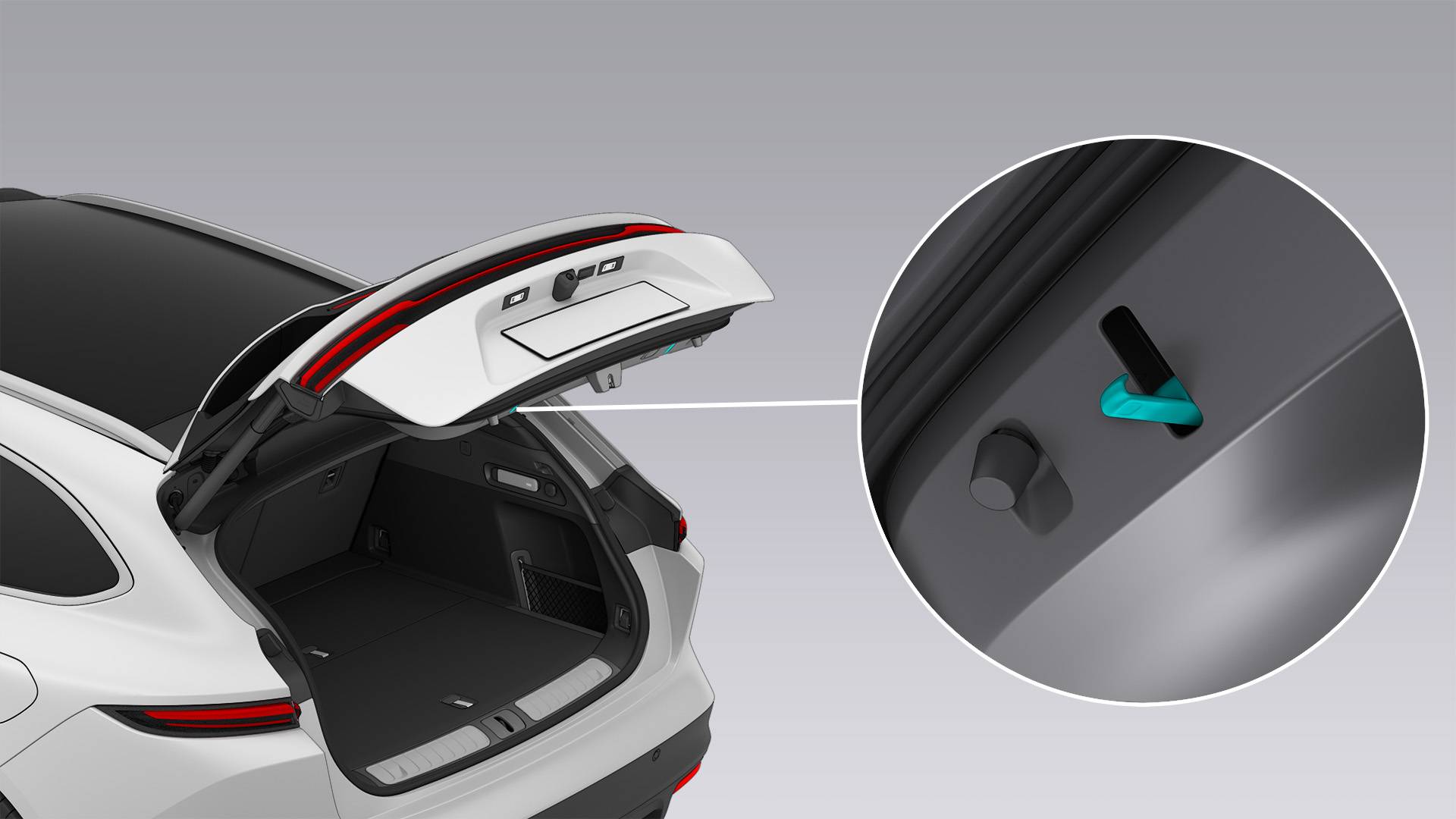

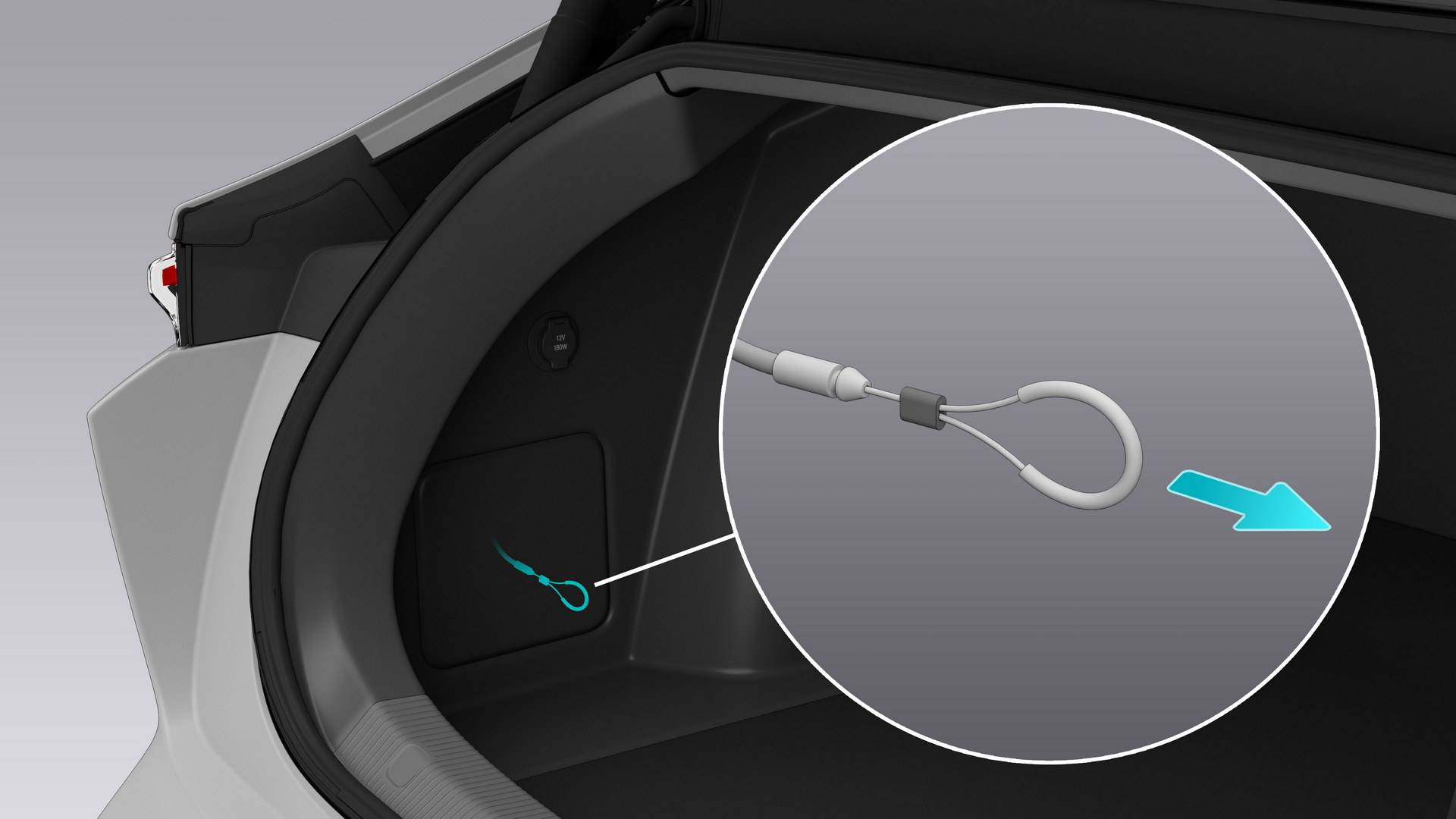

Opening and Closing the Liftgate Manually

If the liftgate is not opened/closed properly, you need to manually open/close the liftgate in a slow and smooth motion.

Anti-pinch Protection of the Liftgate

Your vehicle is equipped with liftgate anti-pinch protection.

If an obstacle restricts the movement of the liftgate during automatic opening or closing, the opening or closing motion will stop and the anti-pinch feature will be activated.

• The opening process is interrupted, the liftgate stops and you will hear a long warning tone.

• The closing process is interrupted, the liftgate stops, a long warning tone sounds, and the liftgate rises again for a certain distance.

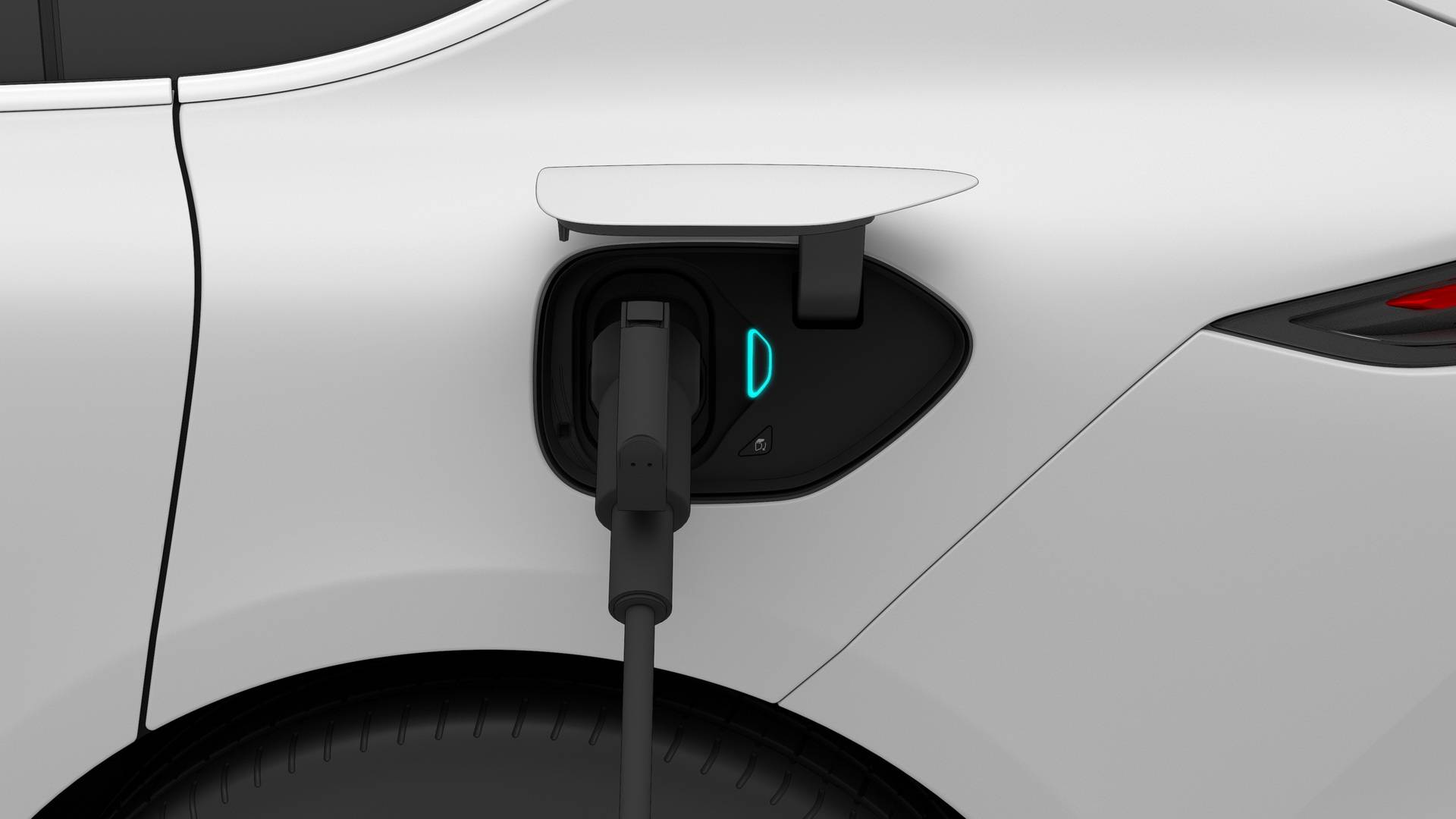

Charging Process

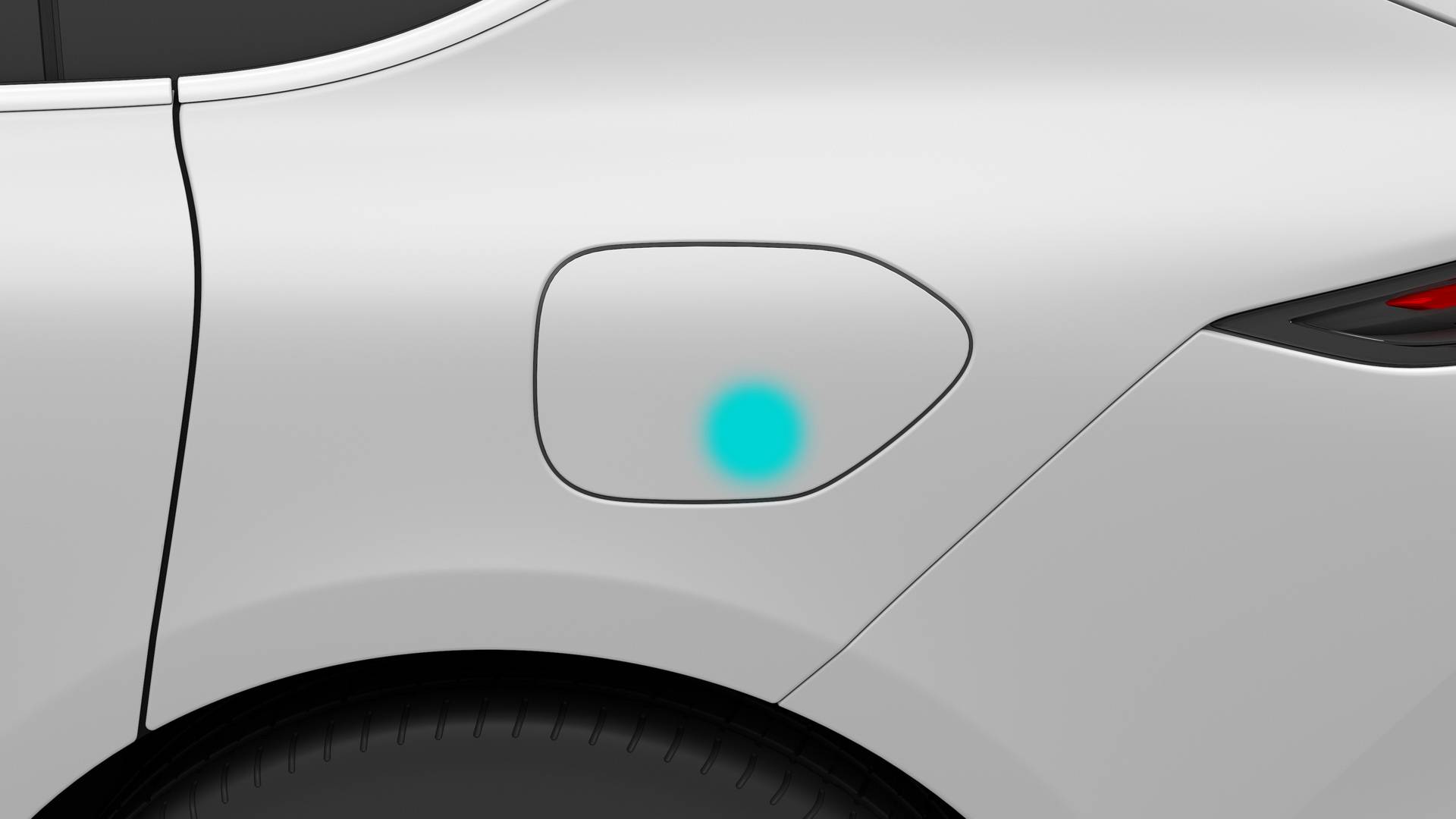

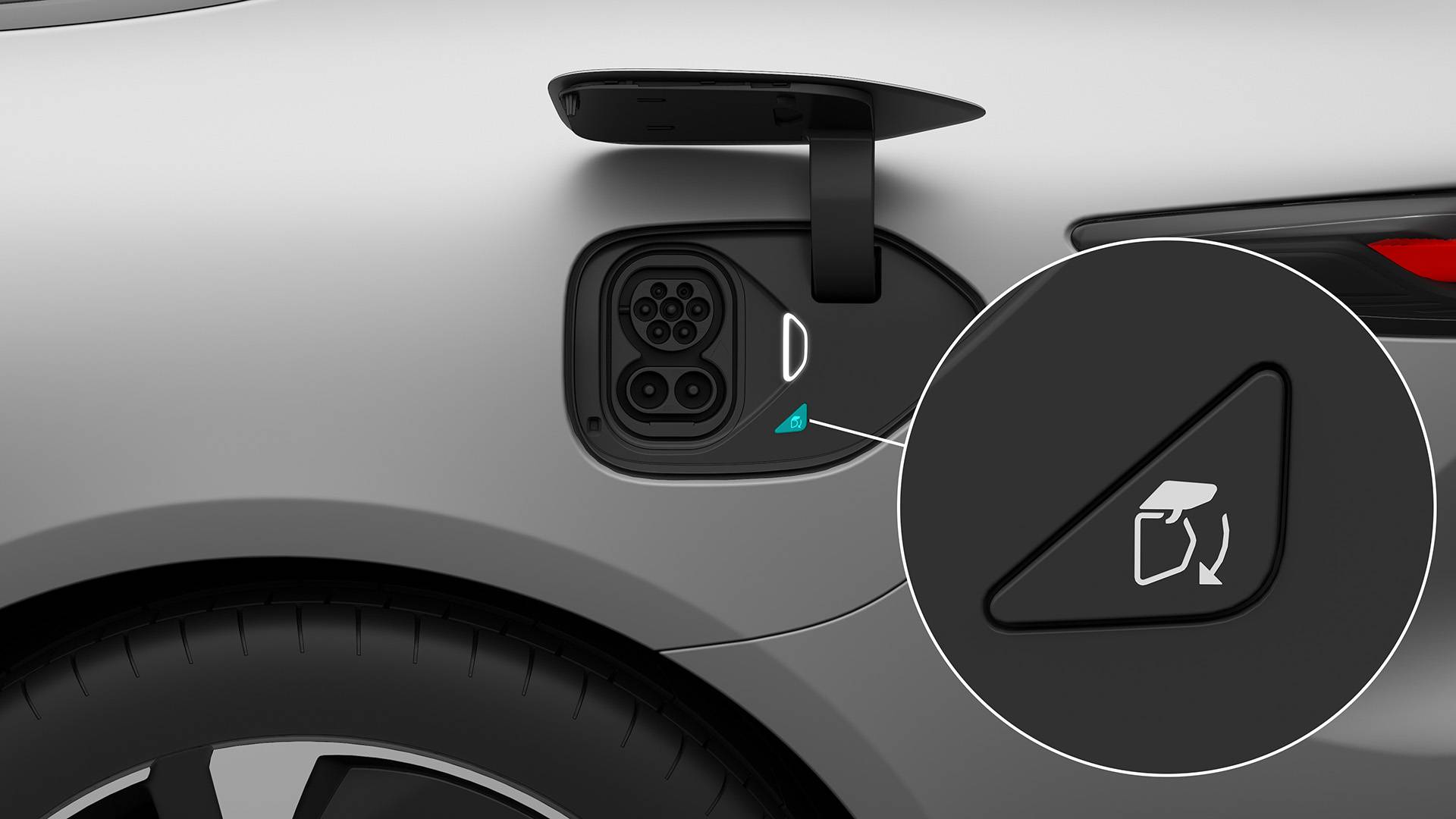

1. Put the vehicle in Park, press the charge port cover to open it, or swipe right on the main interface of the center display to enter Quick Access and tap Charge Port, and the charge port cover will automatically open. The indicator of the charge port will light up white steadily.



   Caution 充电口饰板旋转运动过程中请勿用力拨动，以免损坏充电口饰板。打开充电口盖时请确保已关闭车辆高压电源。

   Do not forcefully adjust the charge port cover when it is active or open. Doing so may damage the cover.

2. Check whether the charging connector and charging equipment are in good condition, align the charger to the charge port of the vehicle, then the charger and the charge port will start matching: if the indicator of the charge port flashes and then lights up blue, the charge port is working properly; if the matching fails or times out, the indicator of the charge port will flash blue and then go out, and you will need to connect the charger again.



3. Turn the charging equipment on and start charging. You can tap Battery on the Settings interface of the center display or use the mobile App to check the current charging status. The indicator of the charge port should be blue during charging to indicate that it is charging.

4. If you are to manually stop charging midway, tap Battery on the Settings interface of the center display after the vehicle is fully unlocked to stop charging, and wait for the indicator of the charge port to light up green steadily to unplug the charger.

   When the charging is completed, press the unlock button of the charger before unplugging the charger.



   Caution 进行直流快充过程中，可先将车辆解锁，再长按充电口关闭按钮，即可手动停止充电。

   • In the process of DC fast charging, you can unlock the vehicle first, and then press+hold the OFF button at the charging port to manually stop charging.

   • When inserting and removing the charger, please face the charging socket. If the charger is stuck, try to lift it slightly. Do not forcibly shake the charger while inserting or removing it to prevent the charger or charging socket from being damaged.

   • During the charging process, do not forcefully pull out the charger directly. Otherwise, there may be sparks and smoke on the charging socket, endangering personal safety.

   • After charging is complete, please wait 3 seconds before disconnecting the charger, to avoid pulling it out too quickly, which may cause an arc and result in personal injury.

5. If the indicator of the charge port flashes red during charging, switch to another Power Home and try again. If the indicator is still flashing red, stop charging immediately and contact the NIO Service Center.



6. After unplugging and putting away the charger, press down on the charge port cover, press the charge port close button, or tap Charge Port on the center display, and the charge port cover will be automatically closed.



   Note 使用蔚来家充桩充电时，充电口饰板将在充电枪从桩上拔下时自动打开，在充电枪从车辆拔下后自动关闭。如充电口饰板自动旋转关闭过程中卡滞在充电枪上，可长按5秒钟充电口关闭按钮，此时充电口饰板将自动打开。

   When you charge your vehicle using NIO Power Home, the charge port cover will automatically open if you remove the charger from the port and will automatically close if you remove the charger from your vehicle. If the charge port cover is stuck on the charger while rotating to close automatically, press+hold the close button for 5 seconds, and the charge port cover will open automatically.

On-Route Battery Warmup

The On-Route Battery Warmup feature is enabled by default. You can go to the Settings interface from the control bar at the bottom of the center display, and select to enter the Battery interface to disable the feature. After this feature is enabled, when the destination or waypoint in the navigation state is the charging station , the vehicle will automatically start the high-voltage battery preconditioning on the premise that it can ensure arrival at the destination, so as to improve the charging efficiency. On-Route Battery Warmup only advances the battery warming step and does not waste additional charging energy.

In the navigation state, the On-Route Battery Warmup feature will be automatically activated under the following conditions. The current preconditioning status will be displayed on the status bar at the top of the center display:

• The navigation destination or waypoint is a Charging Station , or a service area with a Charging Station .

• The driver is seated.

• The current remainder range is more than 120 km.

• The vehicle is not in ECO+ mode.

You can manually disable the On-Route Battery Warmup feature by selecting "Disable This Time" (enabled by default next time) or "Keep Disabled".

This feature will automatically deactivate the preconditioning process (the switch remains on) in one of the following conditions:

• Connect a charger.

• Turn off the navigation or stop navigating to the Charging Station .

• The current remainder range does not support a preconditioning to the destination with 20 km remaining.

• The vehicle enters ECO+ mode.

Manual Battery Warmup

The Manual Battery Warmup feature is disabled by default. If you are familiar with the charging route and do not need to follow the navigation guide to the charging point, it is recommended to enter the Battery interface on the center display in a low temperature environment and enable the Manual Battery Warmup feature. The vehicle will enable the high-voltage battery preconditioning to improve charging efficiency. When starting Manual Battery Warmup, it is necessary to ensure that the ambient temperature is below 20 ℃ and the vehicle's remainder range is greater than 10 kilometers.

You can enable or disable the Manual Battery Warmup feature on the center display . The status bar at the top of the center display shows the current preconditioning status.

This feature will automatically deactivate the preconditioning process (the switch is off now) in one of the following conditions:

• Connect a charger.

• The On-Route Battery Warmup feature is enabled.

• The battery has been warmed up to the set temperature and maintained for 1 hour.

• The vehicle enters ECO+ mode.

NIO Smart Charging

Feature can be activated in vehicle settings and will be remembered in this location.

Tibber Smart Charging

User needs to subscribe to the Tibber electricity contract and have a smart meter at home. Activation is possible with every AC charging station/home charging cable.

How does it work:

1. User subscribes to Tibber.

2. User is onboarded by Tibber, opens the App.

3. User activates the Power-Up "NIO" in the Tibber App.

4. User logs in once with the NIO credentials.

5. User sets the departure times per weekday day in Tibber App.

6. Vehicle charging at the Tibber Home location will be controlled by Tibber from now on.

7. User can always control the charging in the Tibber App. To stop Tibber from controlling your vehicle altogether - go to the Power-ups section in the Tibber app and disconnect the NIO Power-up. Or contact the Tibber support.

Specifically for problems (App doesn't work, charging doesn't work, etc...) or general questions (how do I sign up, when will my account be active, etc...), please direct them to the local Tibber.com, which redirects to the local website.

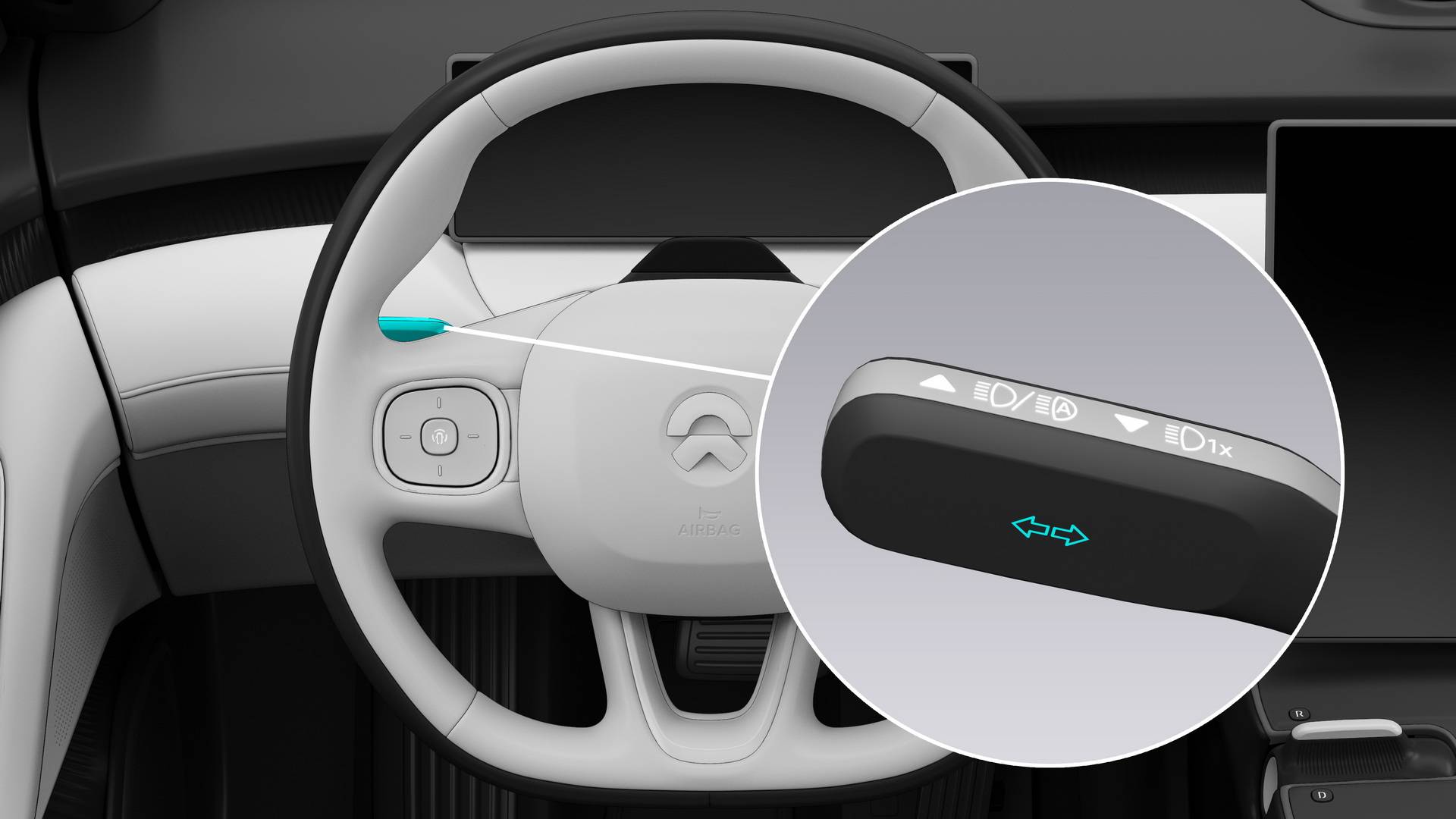

To make manual adjustments, use the light control lever on the left side of the steering wheel.

• To enable Auto High Beams (AHB), push the light control lever forward, and the instrument cluster displays the Auto High Beams (AHB) icon ; pushing the lever forward again activates the high beam headlights and displays its icon on the instrument cluster.

• If the Auto High Beams (AHB) feature is turned off, moving the light control lever forward will switch only between the high and low beams.

To turn off the high beams and Auto High Beams (AHB), move the light control lever backward and release it.

After the light control lever is moved backward and released, the high beams will flash once.

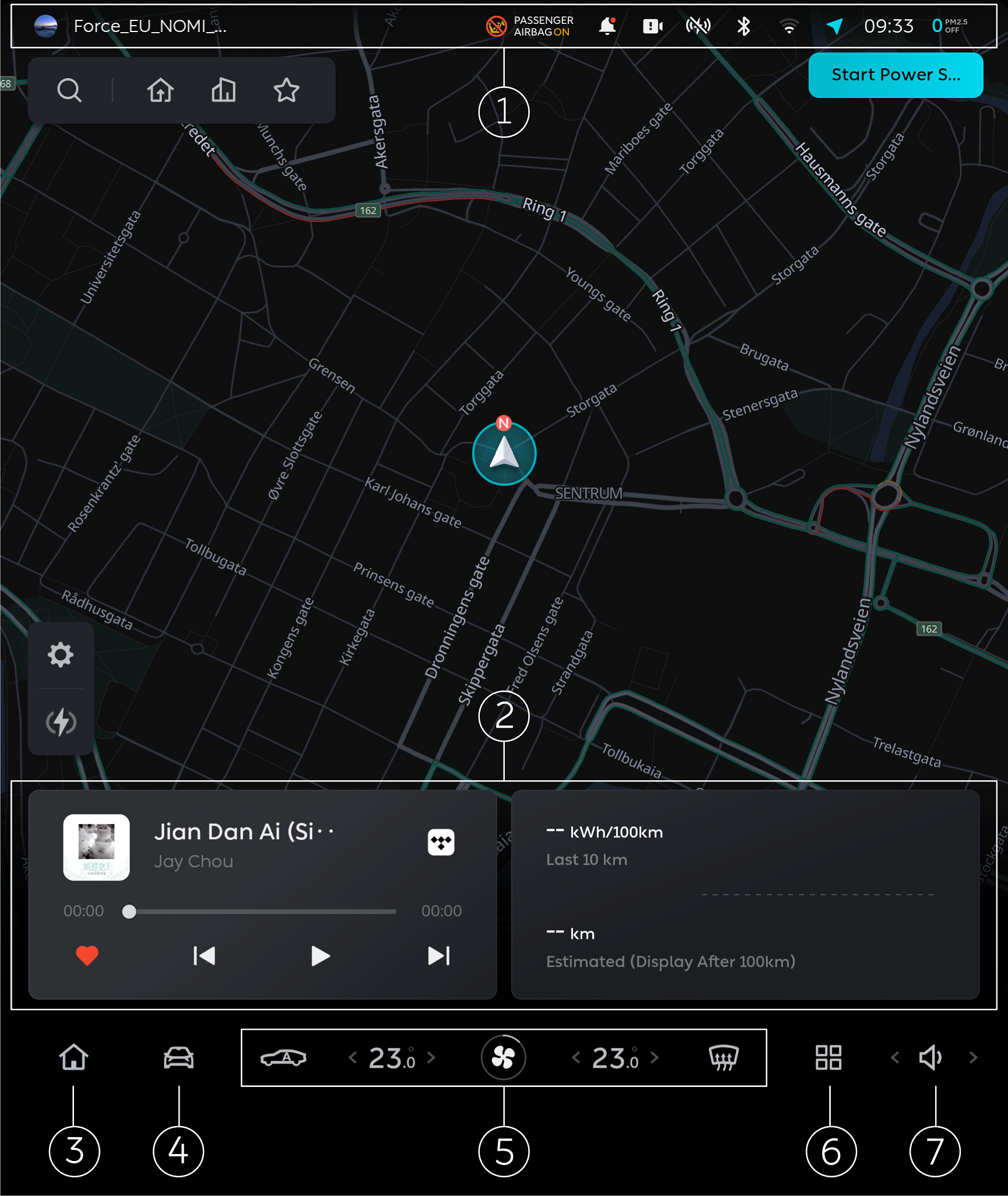

Go to the Settings interface from the control bar at the bottom of the center display, and tap Lights > Exterior Lighting. Press Front Fog Lights and Rear Fog Lights to turn on/off the front/rear fog lights.

Alternatively, swipe right from the left of the center display to enter the Quick Access interface, and press Front Fog Lights and Rear Fog Lights to turn on/off the front/rear fog lights.

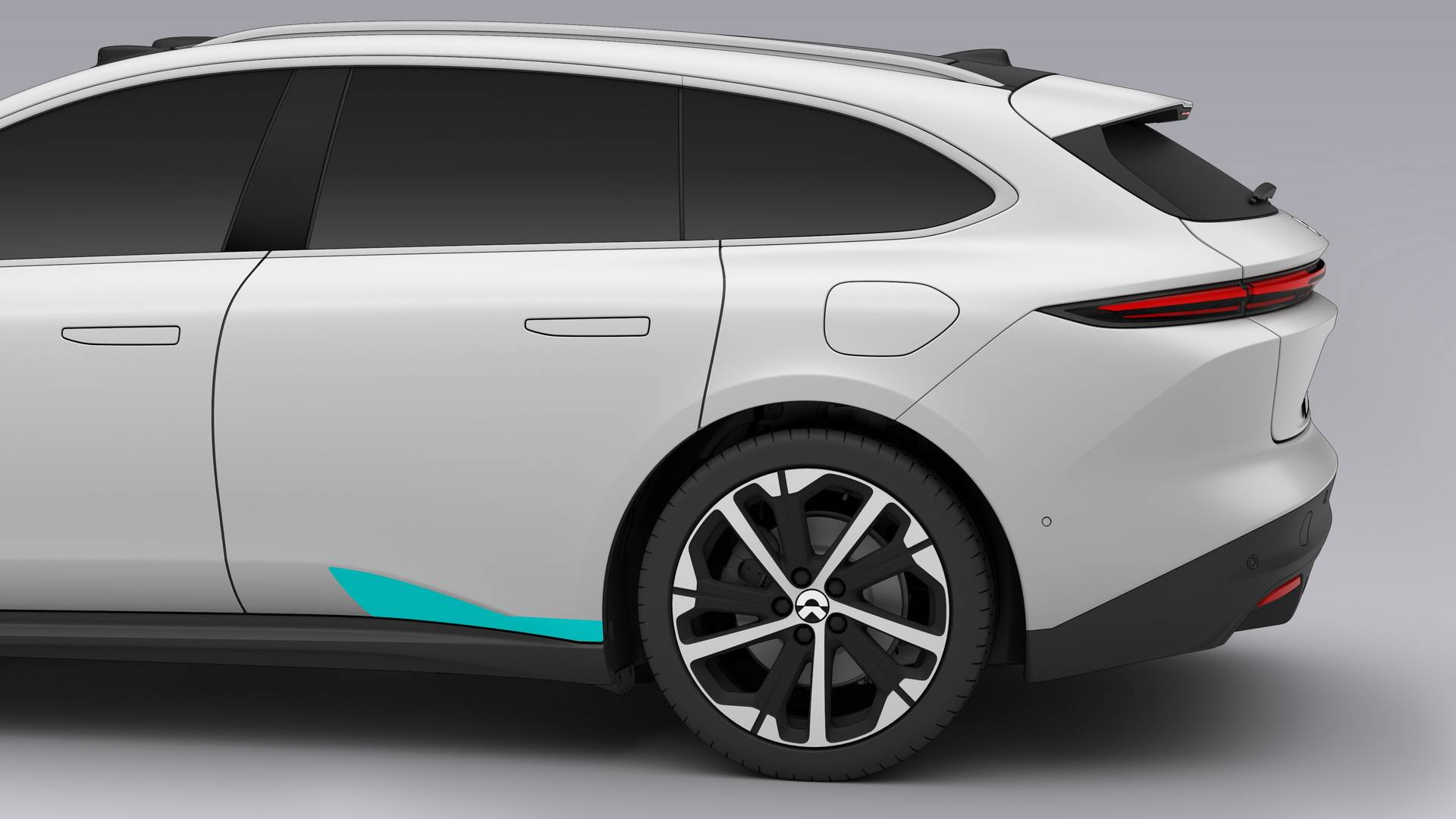

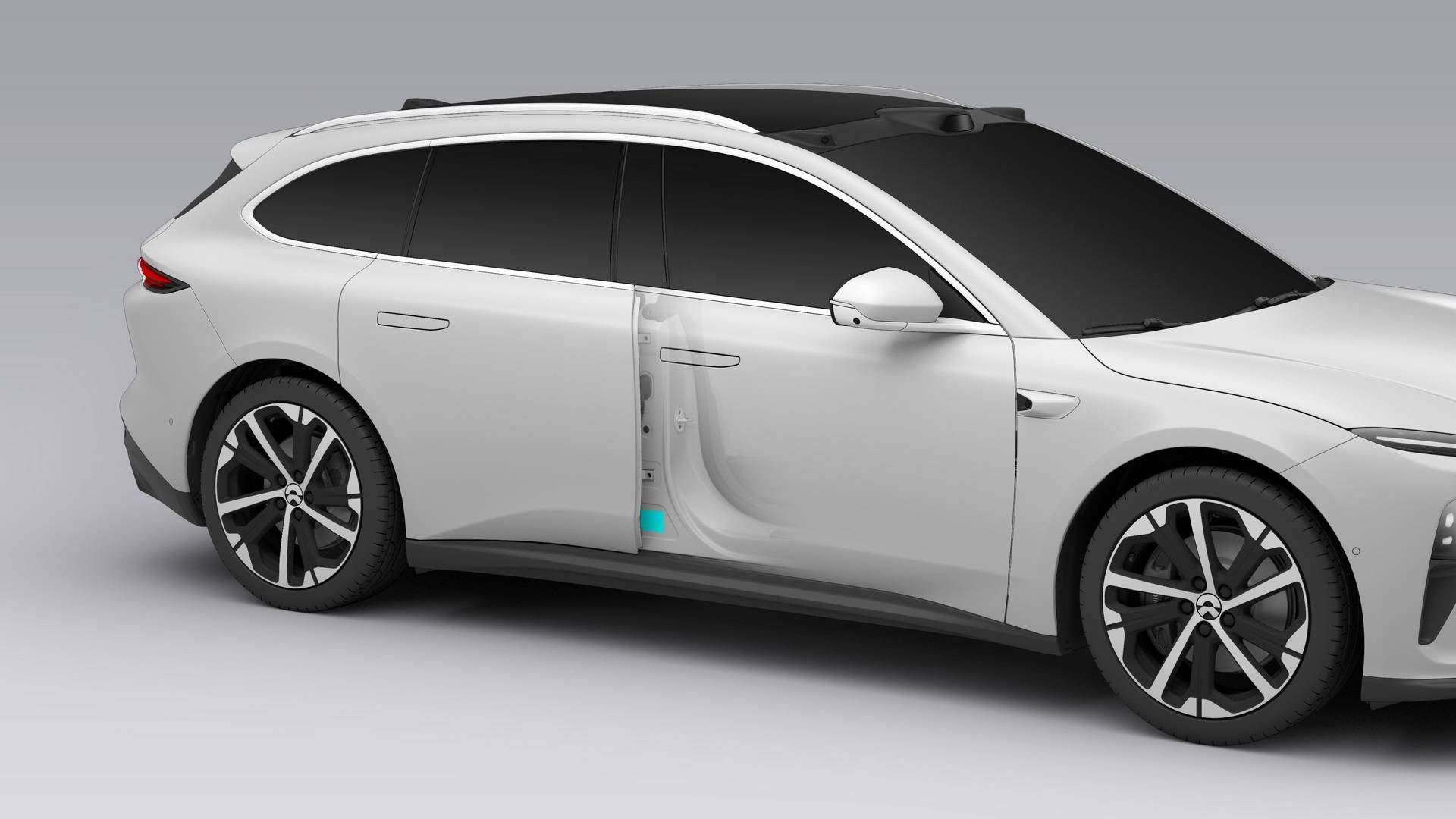

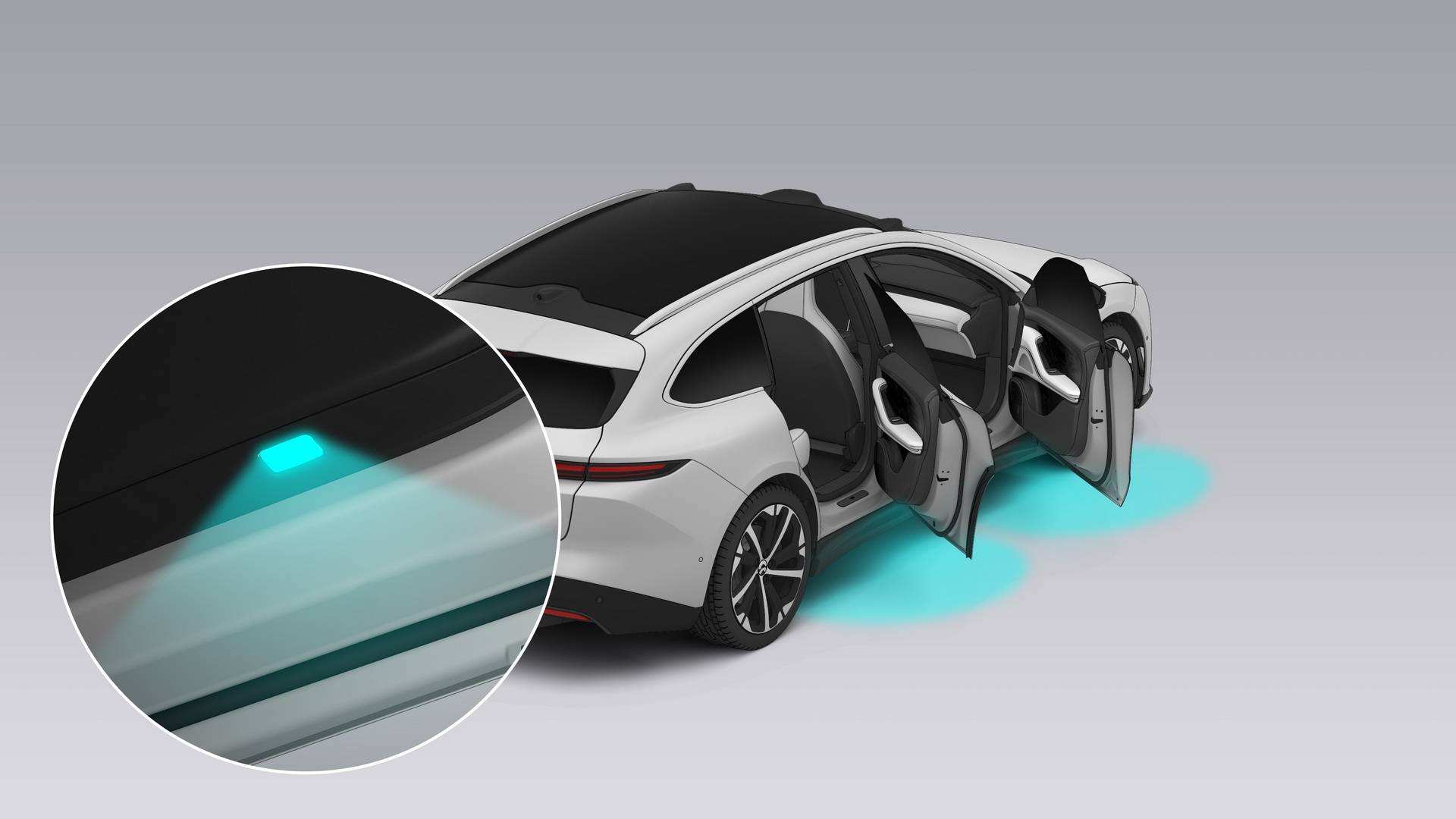

There is a puddle light under each of the four vehicle doors, providing convenience for entry and exit at night; there are also two puddle lights on the liftgate to help you see the ground conditions clearly (such as mud pits, water puddles, etc.) when putting things away.

By opening the door or liftgate, the corresponding puddle light will be turned on. The puddle light will go out 10 minutes after the door is opened, or when the door is closed.

Auto Control of Reading Lights

When you unlock the whole vehicle or open any door (including the liftgate), the interior reading lights will automatically light up to illuminate the inside of the vehicle. The reading lights will be automatically turned off in one of the following situations, by then you can manually turn the reading lights on by touching the reading light touch switch on the roof:

• Driving;

• Locking the vehicle from the outside;

• 10 minutes after the door is opened;

• 15 seconds after all doors are closed.

Enter the Settings interface from the control bar at the bottom of the center display, and tap Lights > Interior Lighting > Auto Reading Lights to control the automatic turning on of the reading lights.

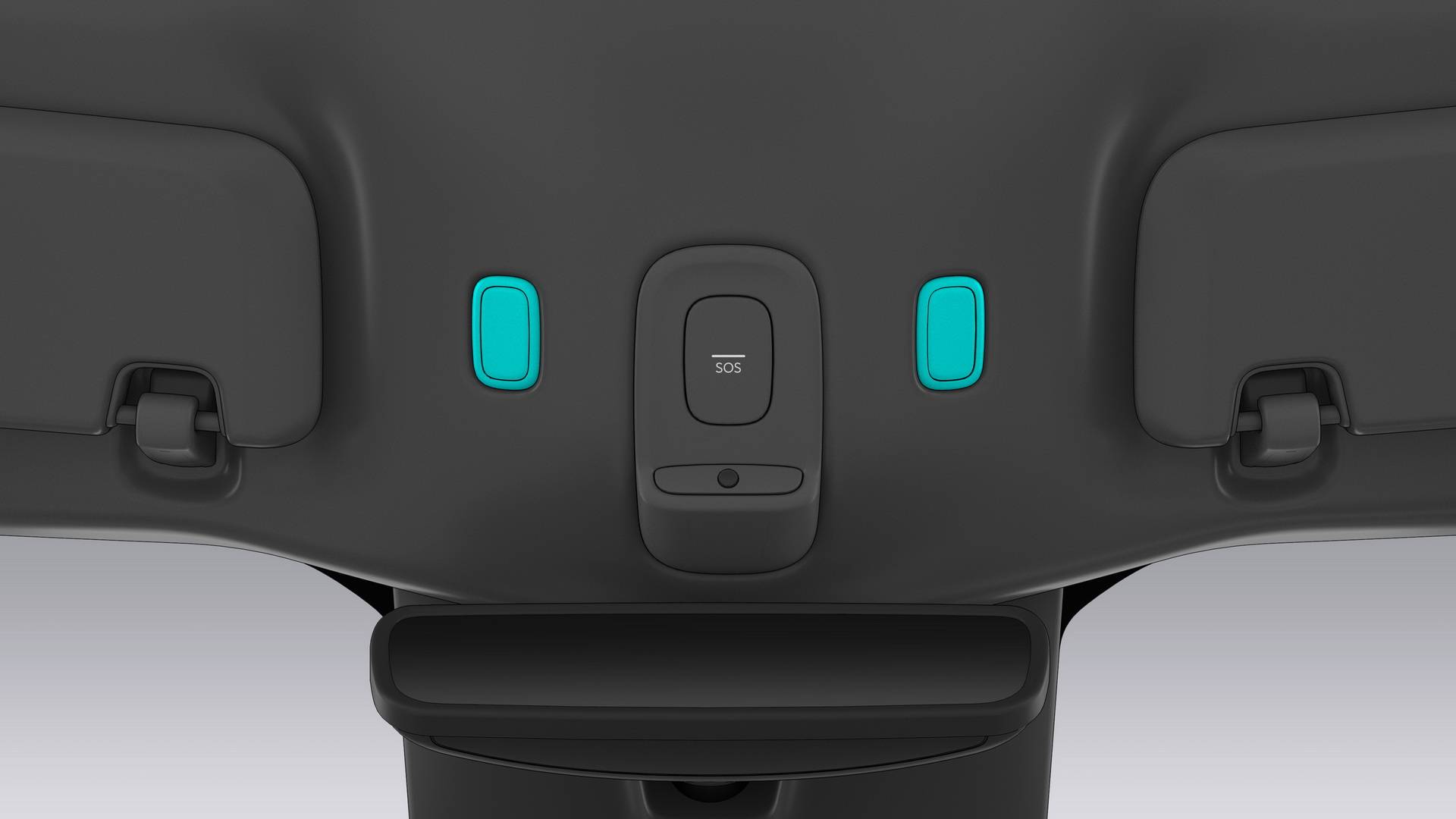

Manual Control of Reading Lights

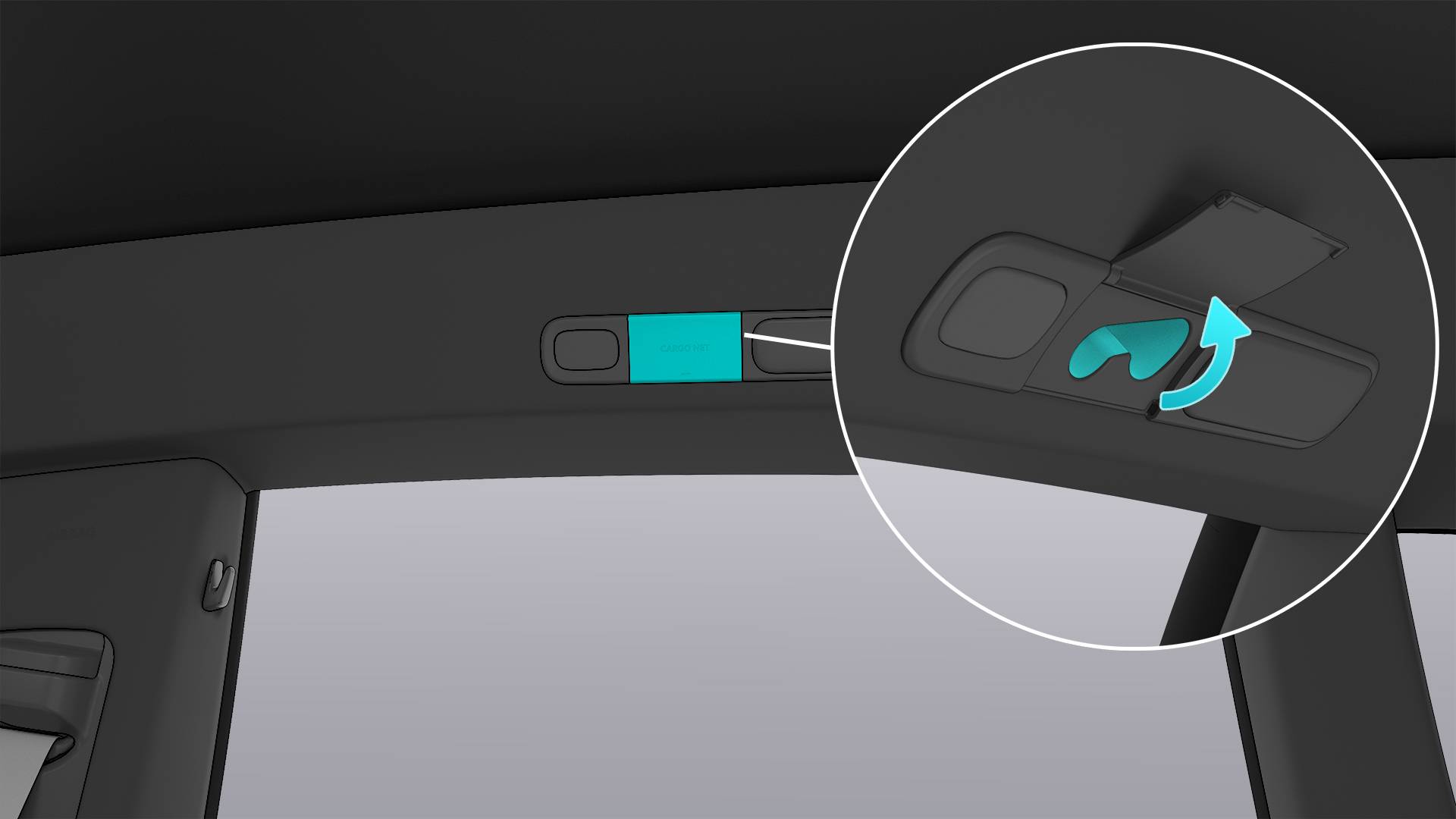

You can turn the interior reading lights on manually to provide lasting illumination for the passenger compartment for you to tidy up, and read maps or documents. There are touch switches to control the reading lights on the roof. By touching the reading light switch, you can control the turning on/off of each reading light separately. There is also a master switch on the center display for controlling all the reading lights. You can enter the Settings interface from the control bar at the bottom of the center display, and tap Lights > Interior Lighting > Reading Lights to turn all interior reading lights on/off at the same time with this master switch.

When you lock the vehicle from the outside (using the smart key or mobile App feature), all interior reading lights will be turned off at the same time.

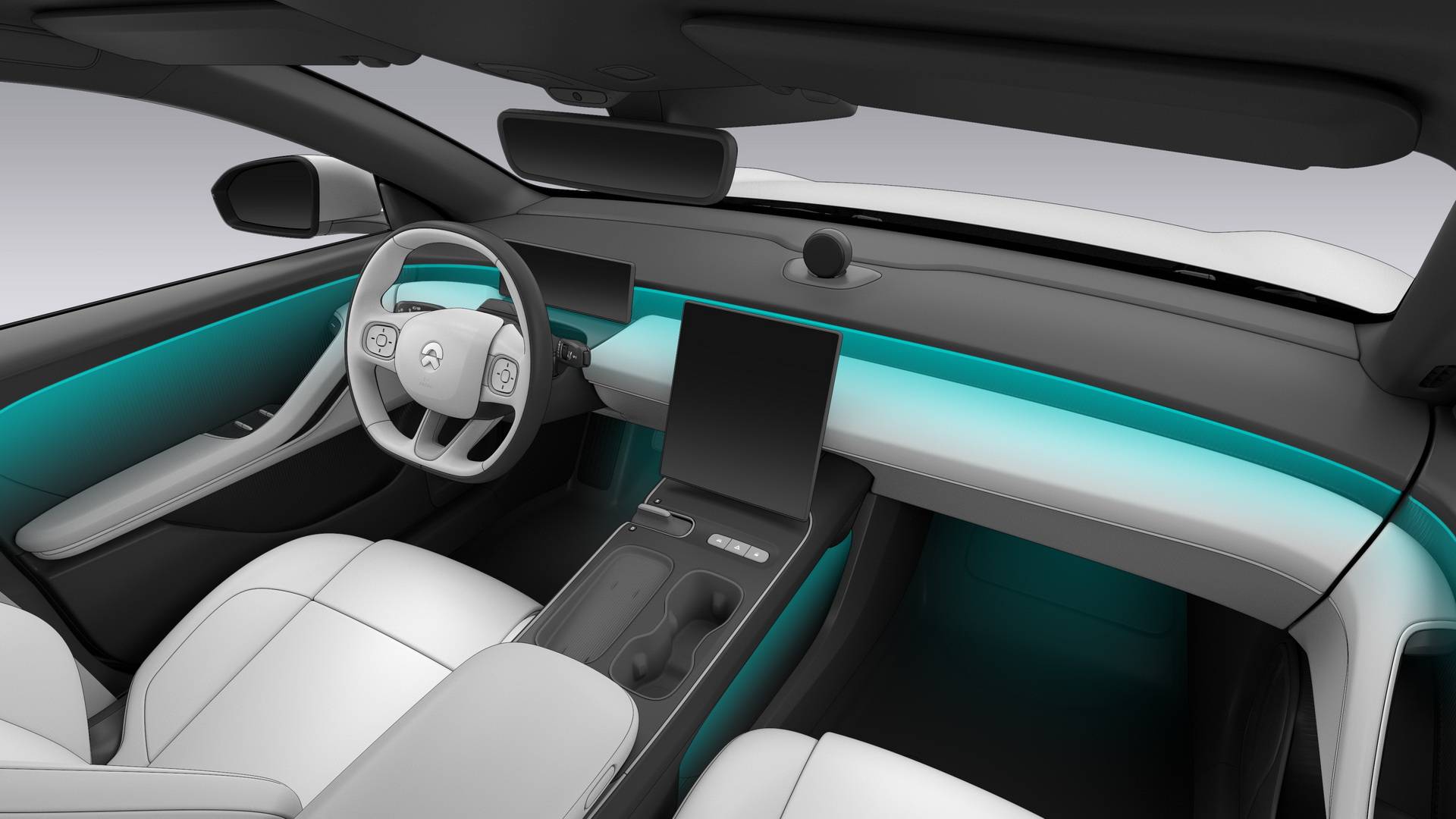

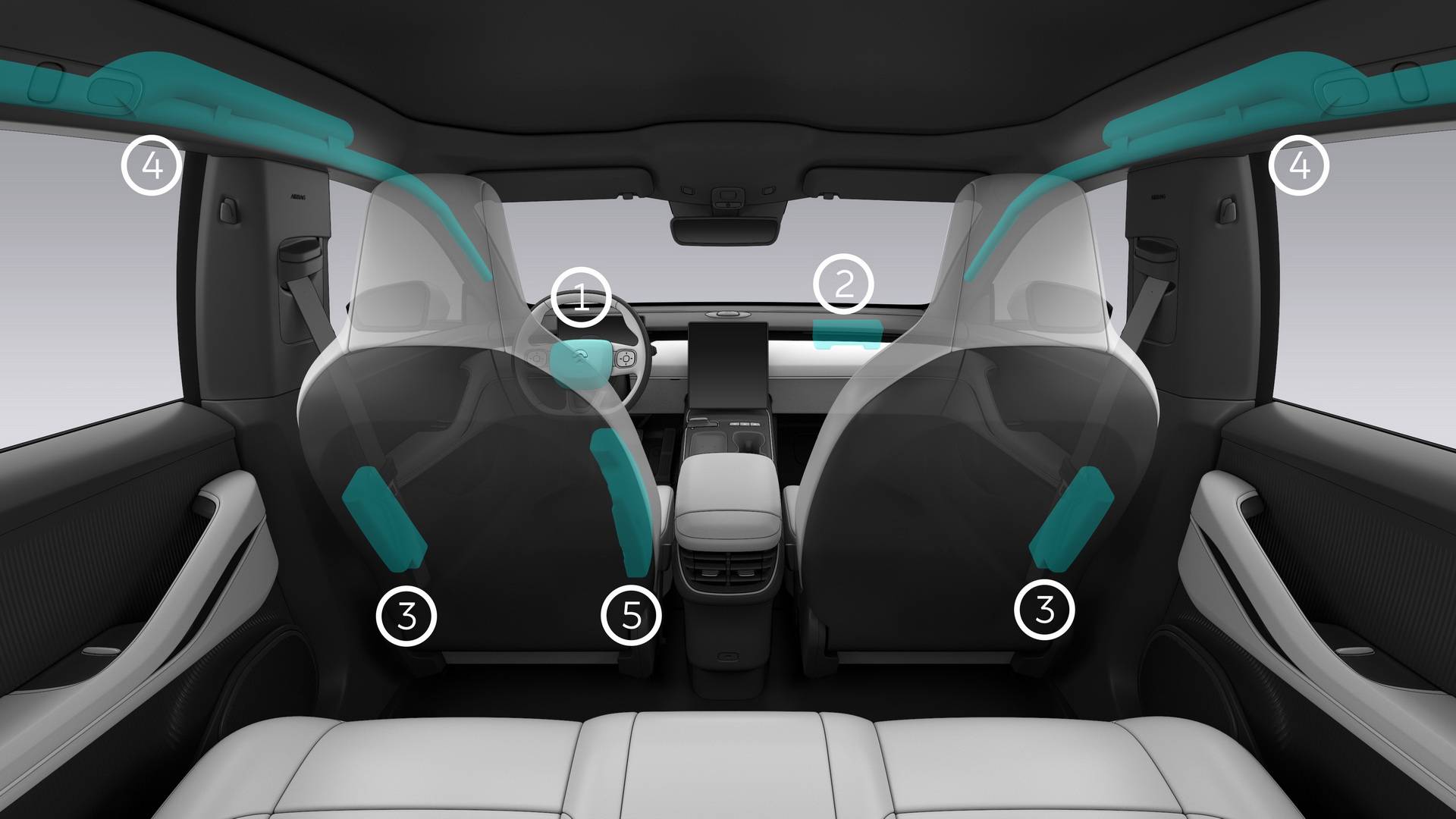

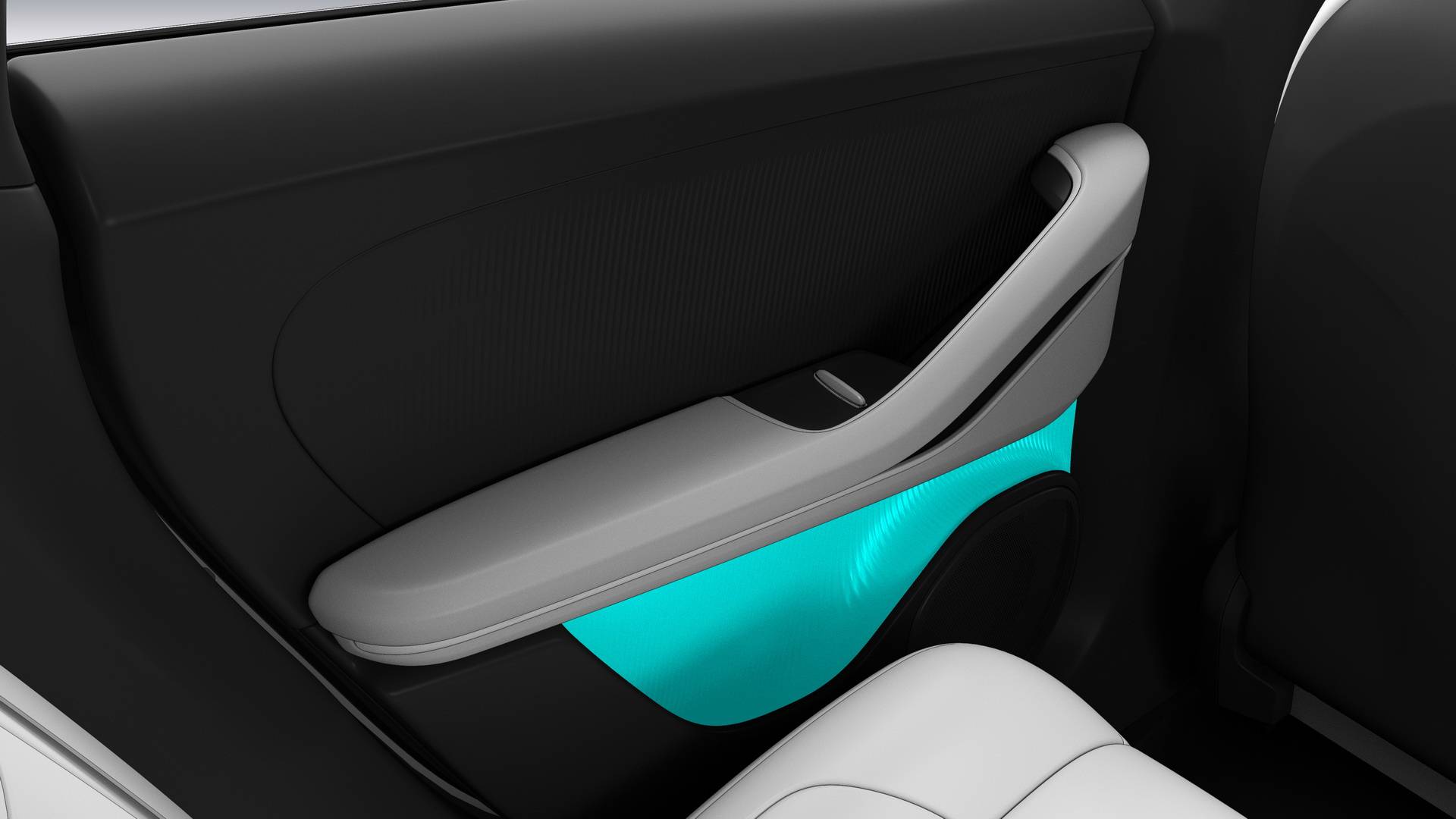

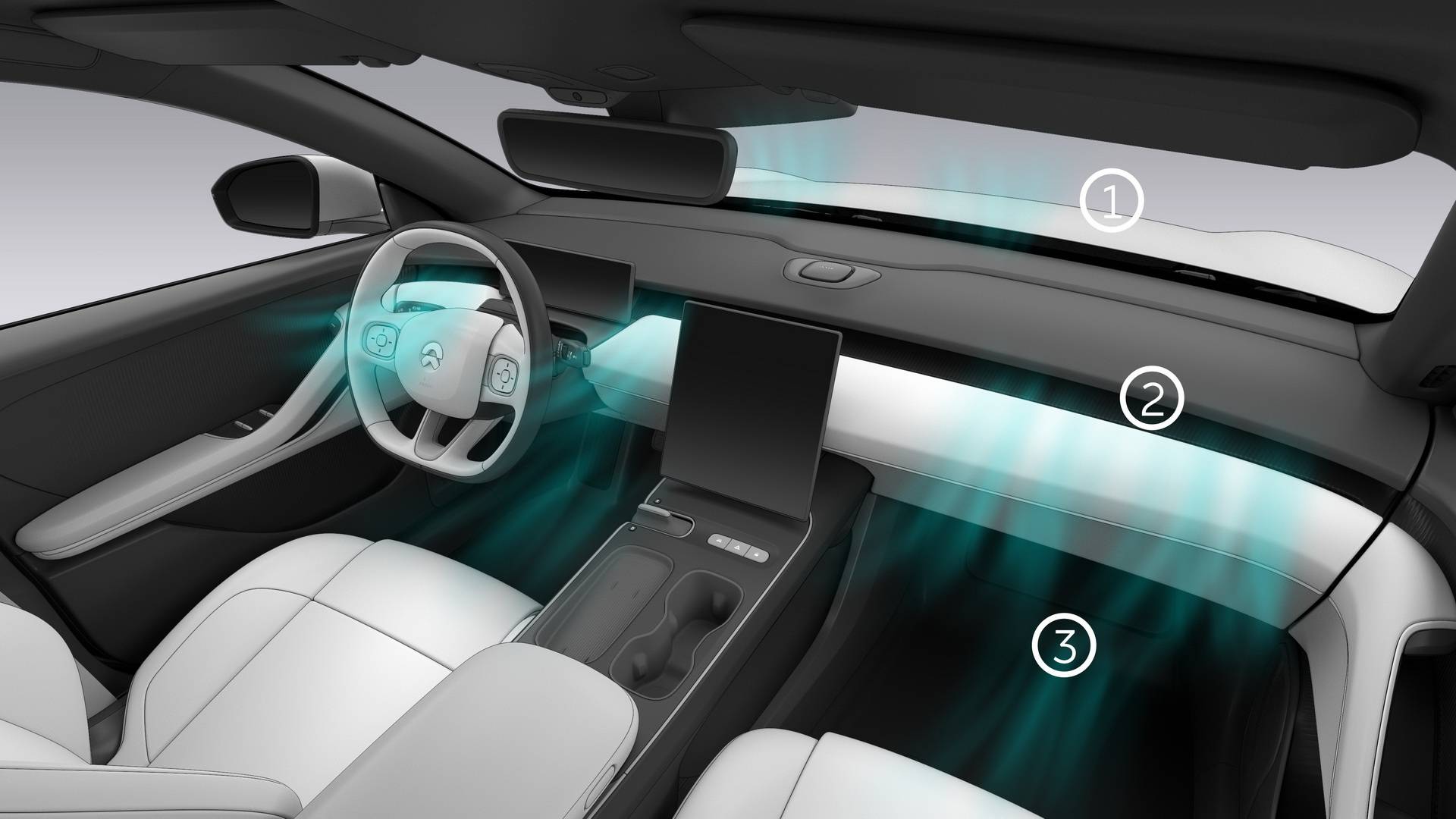

The vehicle is equipped with adjustable smart ambient lighting on the door panels, storage, and floorboard. You can choose your favorite ambient lighting effect to create a pleasant driving experience.

After you are seated, you can enable the ambient lighting feature on the center display. The vehicle will show the default ambient lighting effect in the current drive mode. Enter the Settings interface of the center display, and tap Lights > Ambient Lighting to select the color and brightness for the ambient lighting of different position (main colors, auxiliary colors, and floorboard). This setting will be saved in your personal profile. You can also set different ambient lighting modes, such as Breathing and Rhythmic. This setting will be saved on the center display.

The ambient lighting is integrated with the side door open warning. When any door is about to be opened and triggers the warning, the corresponding side door's ambient lighting on the door panel will illuminate in red and flash.

When the vehicle is first activated and passes the verification process, the key is automatically bound to the owner's account. Subsequently, when using the key to unlock the vehicle, it will automatically load the owner's account data.

The owner can use the mobile App's key management interface to bind the key with authorized accounts. As a result, when authorized users use their corresponding keys to unlock the vehicle, the bound authorized account's content will be automatically loaded. The owner can view the bound account information and perform unbinding operations on the mobile App. Both the owner and user of the bound account will receive SMS and mobile App notifications upon successful binding or unbinding.

Authorization by Owner

You can tap Profile Photo > Account Settings on the Settings interface of the NIO App or in the upper left corner of the center display, and then enter the gesture password of your vehicle to go to the authorization management interface.

You can authorize a user and set related authorized features by entering his/her NIO App user name. Up to nine users can be authorized. After setting the user's authorization, you can tap the profile photo or user name of the authorized user to view the user's detailed information and authorized features (such as media, video and safe box). If the current authorization is active, you can also edit the range of authorized access or disable the user's authorization. An authorized user can only access authorized features, and cannot manage authorization or set the guest mode.

After the vehicle is locked, if you unlock the vehicle using your smart key, the vehicle will automatically log in to the owner's account.

Unlocking by an Authorized User

An authorized user can unlock the vehicle using his/her NFC key or NIO App. To view the account information and authorized features of an authorized user, tap his/her profile photo on the center display:

• NFC unlocking: Open the NFC key App on the mobile phone and place it close to the center area of vehicle body on the left side.

• Remote unlocking by NIO App: Tap "Door Locks" on the "My Vehicle" interface in NIO App.

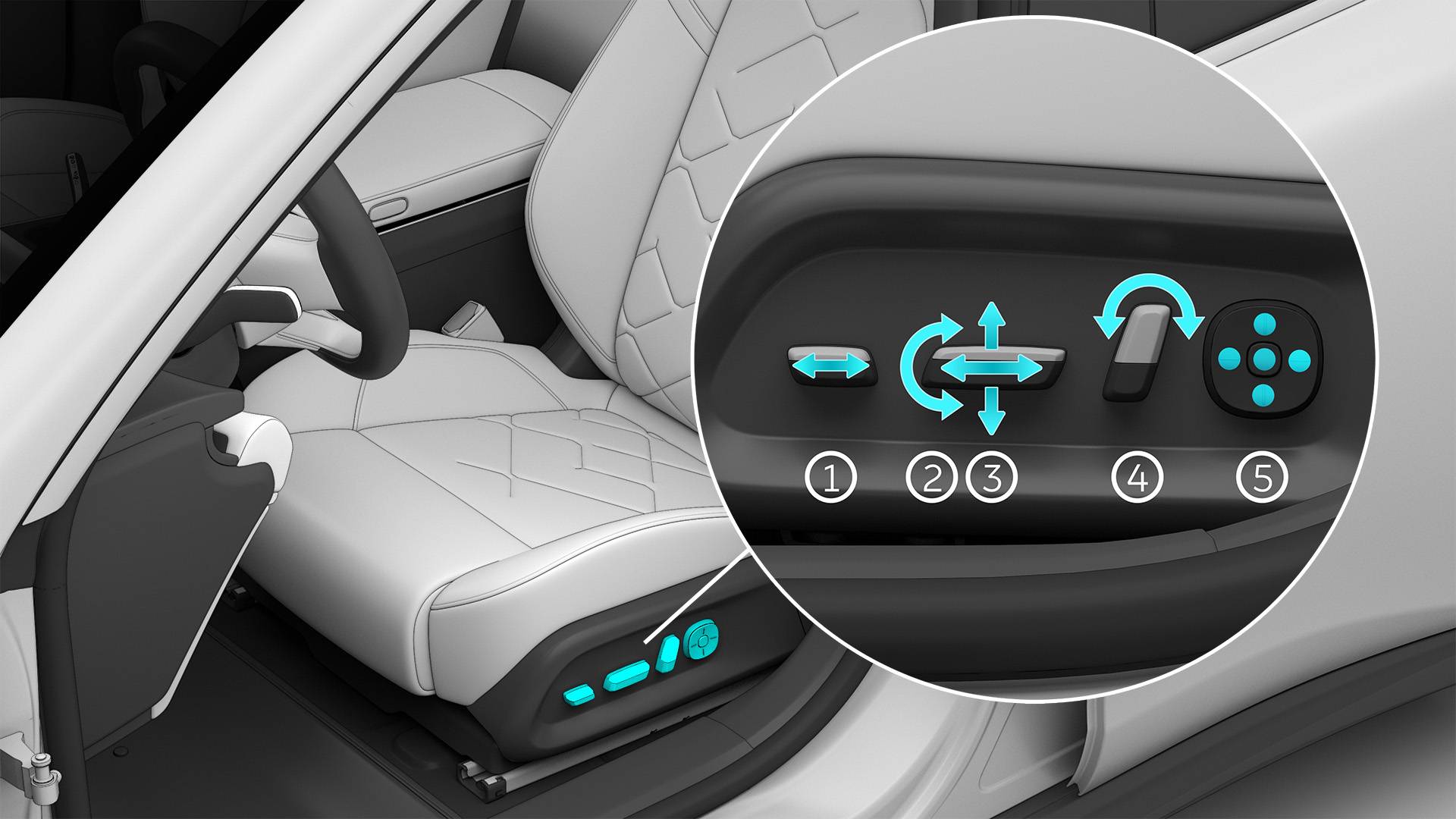

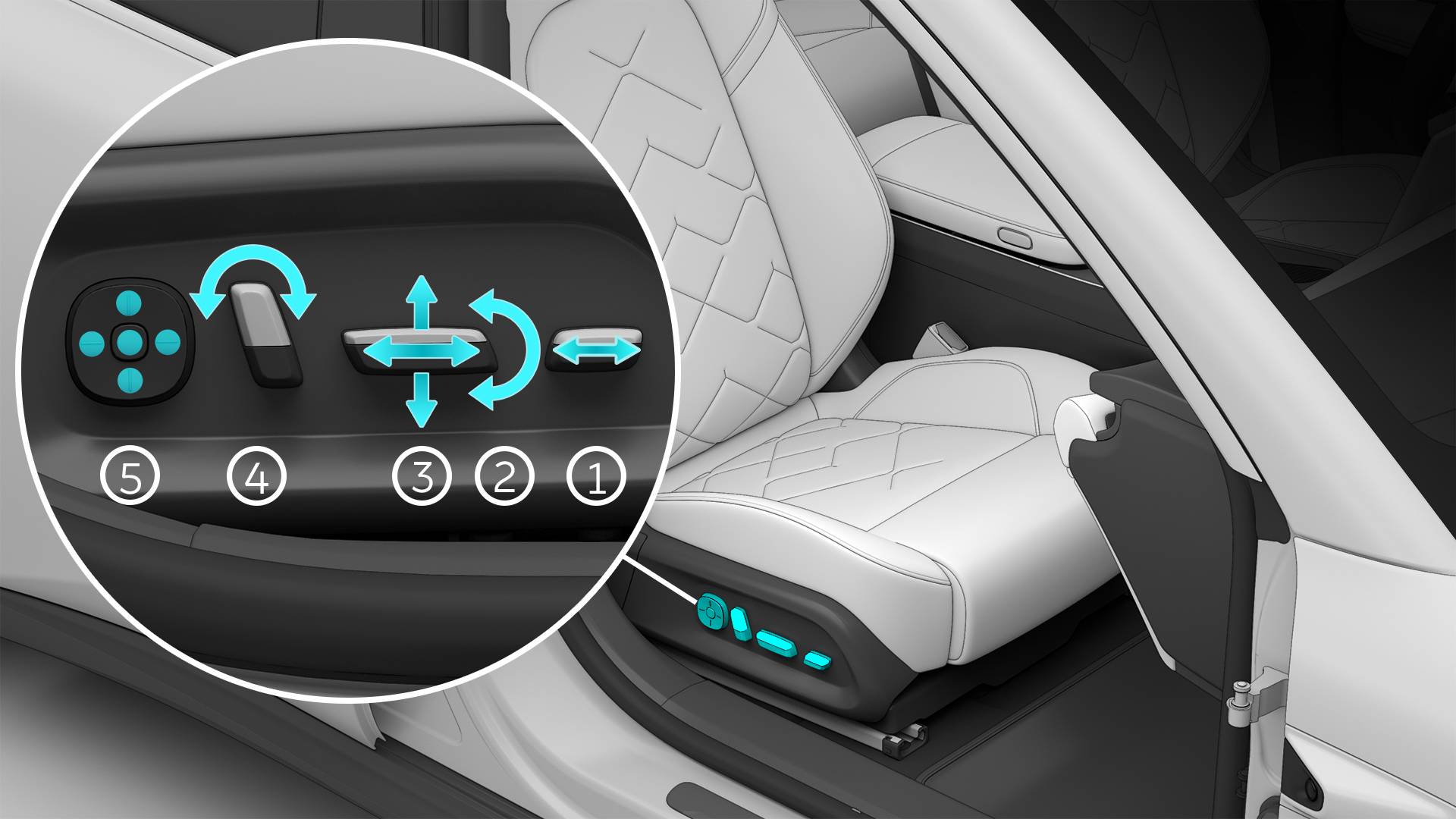

Adjusting the seat position via buttons

The buttons under the seat allow you to adjust the position of the driver seat.

1. Length of seat cushion

   Toggle the button back and forth to adjust the length of the seat cushion.

2. Front inclination angle of seat cushion

   To adjust the seat cushion's front inclination angle, turn this button.

3. Lateral position of the seat

   Toggle this button back and forth to move the seat forward or backward.

   Height of seat

   To raise or lower the seat, toggle the center portion of this button up or down.

4. Reclining of the backrest

   Toggle the upper end of this button back and forth to adjust the reclining of the seat backrest.

5. Lumbar support adjustment

   Press and hold the up, down, left, or right button to adjust the lumbar support.

   Customizable comfort button

   Press the middle button to turn on or off the comfort feature; press+hold the middle button to save the seat's current comfort options.

Adjusting the seat position via buttons

The buttons under the seat allow you to adjust the position of the driver seat.

1. Front inclination angle of seat cushion

   To adjust the seat cushion's front inclination angle, turn this button.

2. Lateral position of the seat

   Toggle this button back and forth to move the seat forward or backward.

   Height of seat

   To raise or lower the seat, toggle the center portion of this button up or down.

3. Reclining of the backrest

   Toggle the upper end of this button back and forth to adjust the reclining of the seat backrest.

4. Lumbar support adjustment

   Press and hold the up, down, left, or right button to adjust the lumbar support.

   Customizable comfort button

   Press the middle button to turn on or off the comfort feature; press+hold the middle button to save the seat's current comfort options.

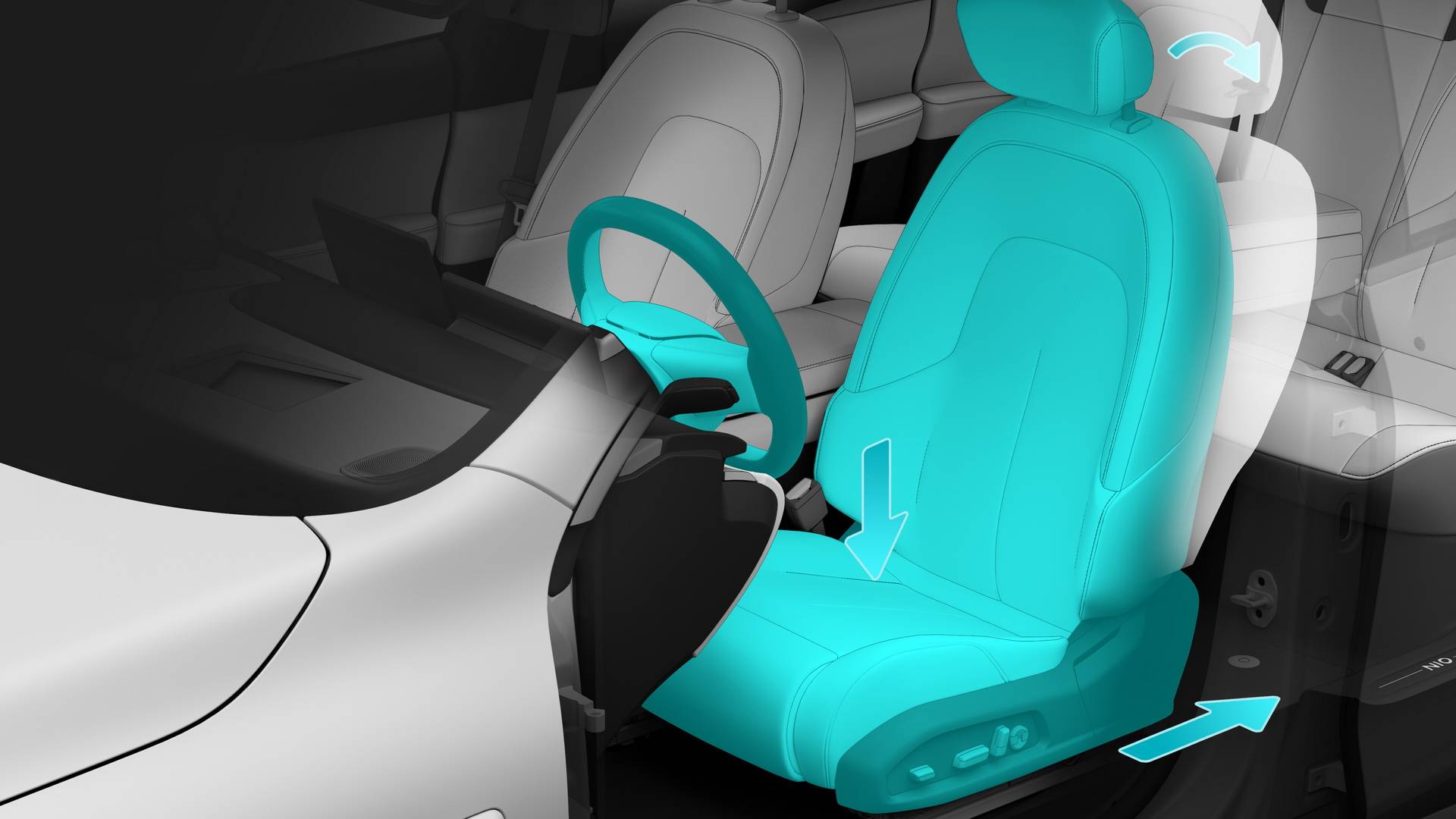

Controlling the movement of the seat on the center display

You can control the movement of the driver's seat on the center display.

On the driver's seat control interface of the center display, tap the "Position", "Backrest" and "Cushion" control arrows to adjust the position of the driver's seat, the reclining of the backrest and the position of the seat cushion respectively.

The center display provides five position options: driving position, rest position, exit position, other position, alternate position and reclining position. Every position needs to be set up by you, with the exception of the reclining position.

How to set up a memory position:

Enter the Settings interface from the control bar at the bottom of the center display, tap Position Adjustment > Seat > Driver to set up the position of the driver's seat on this interface.

You can adjust the seat position through the seat buttons or on the center display to set up personalized positions in different scenes by pressing the Drive/Alternate/Rest/Exit button on the interface, and the settings will be saved under the corresponding user account. When you need to update a set position, adjust the seat and re-save.

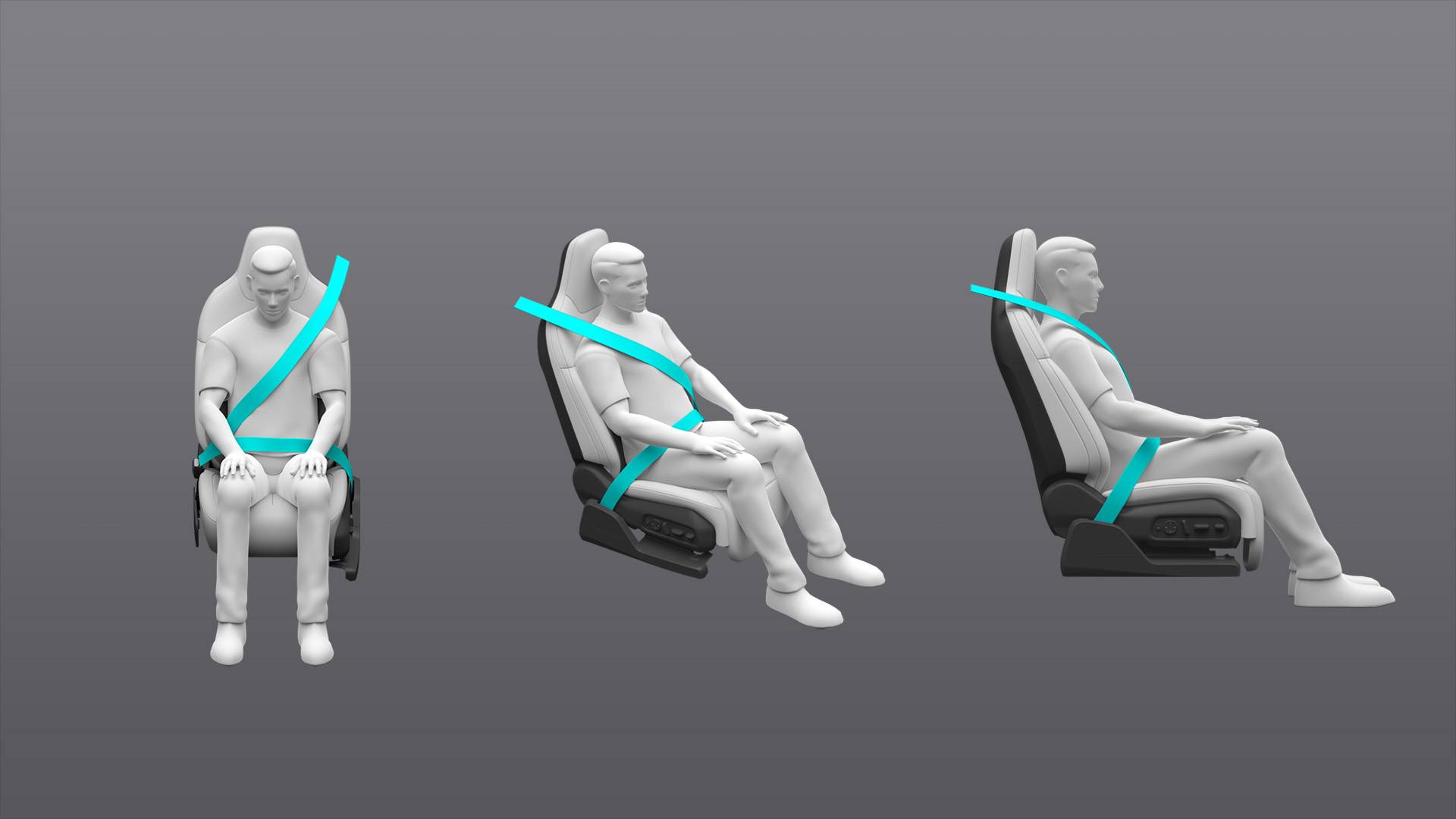

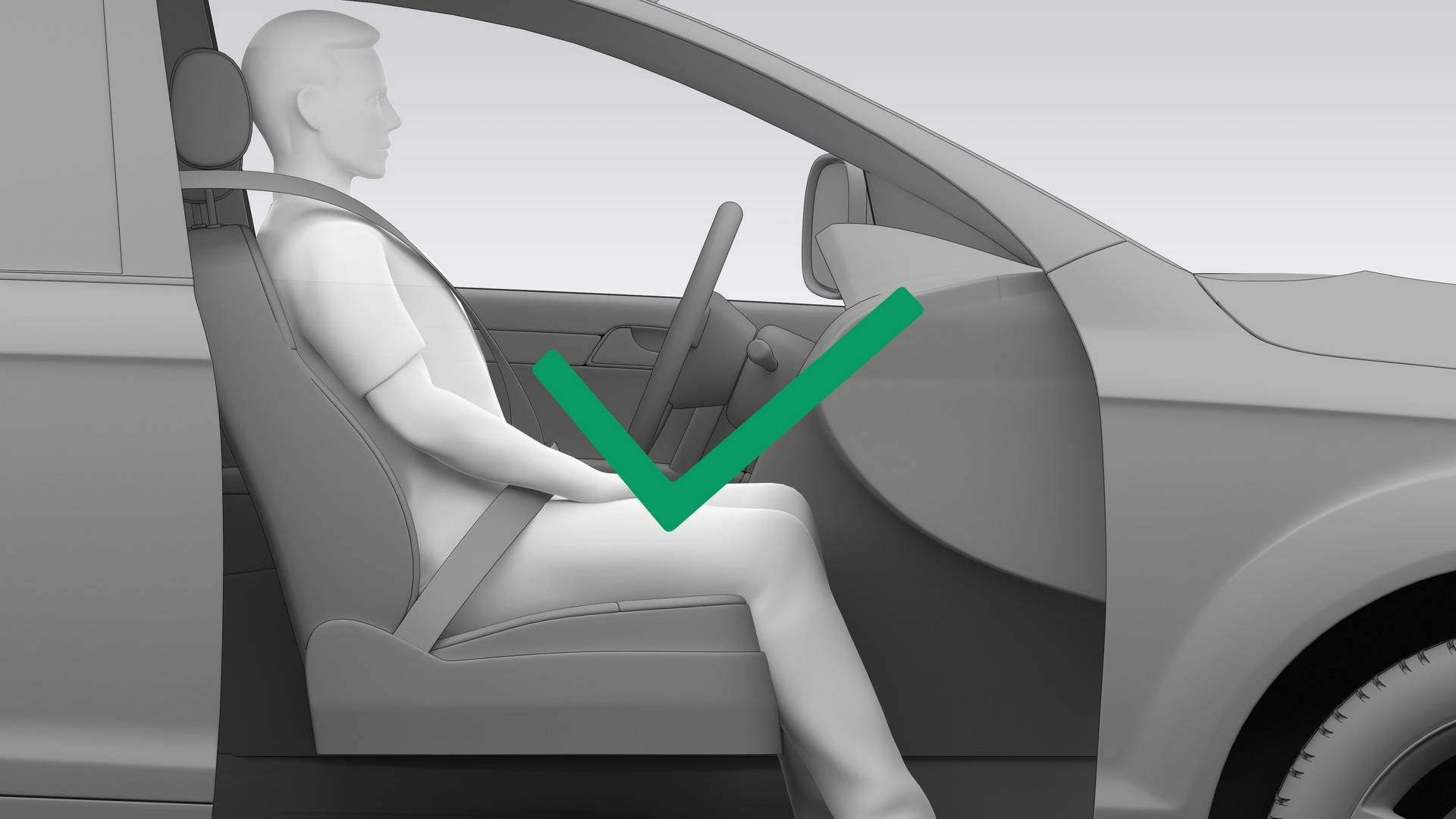

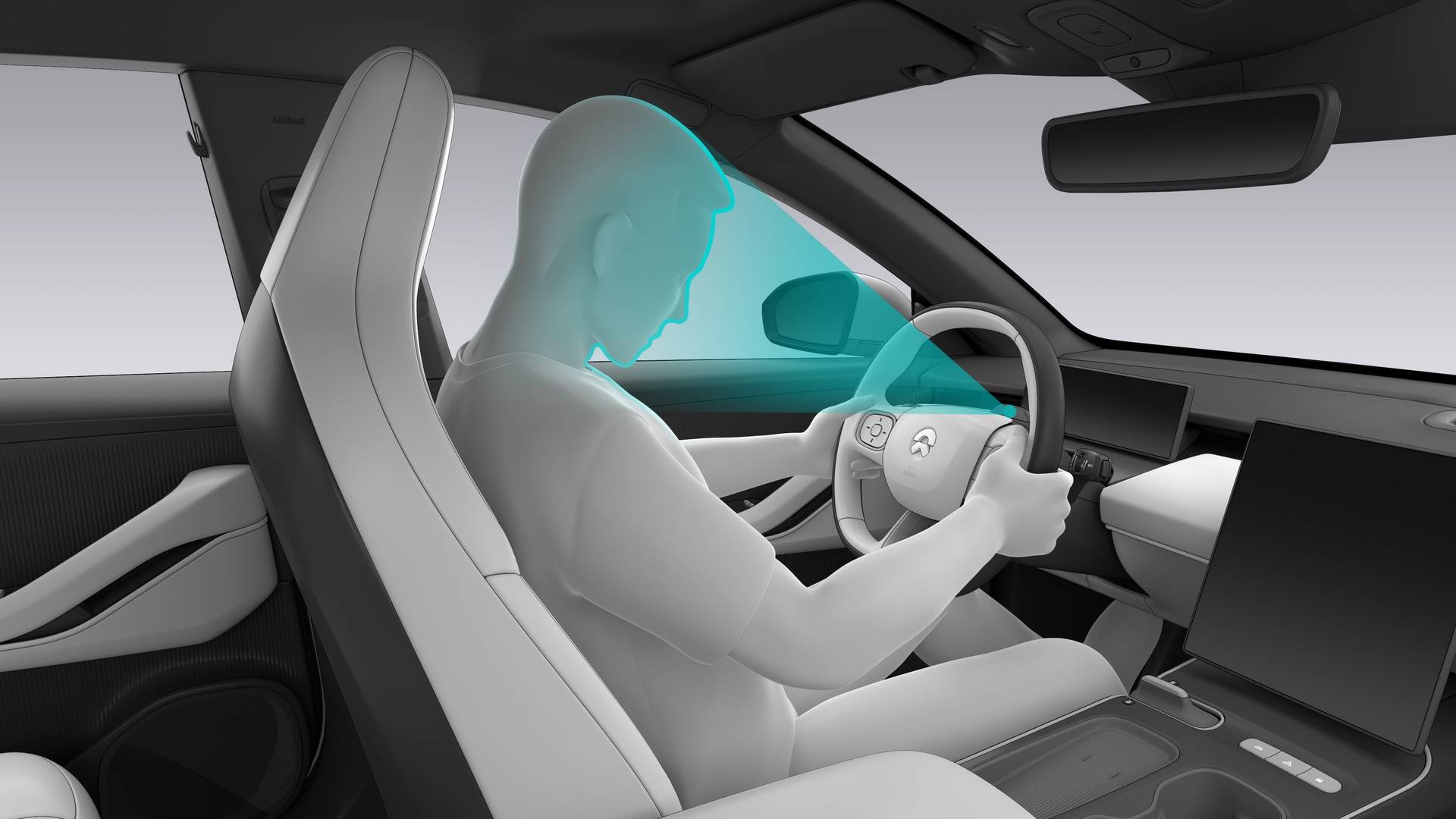

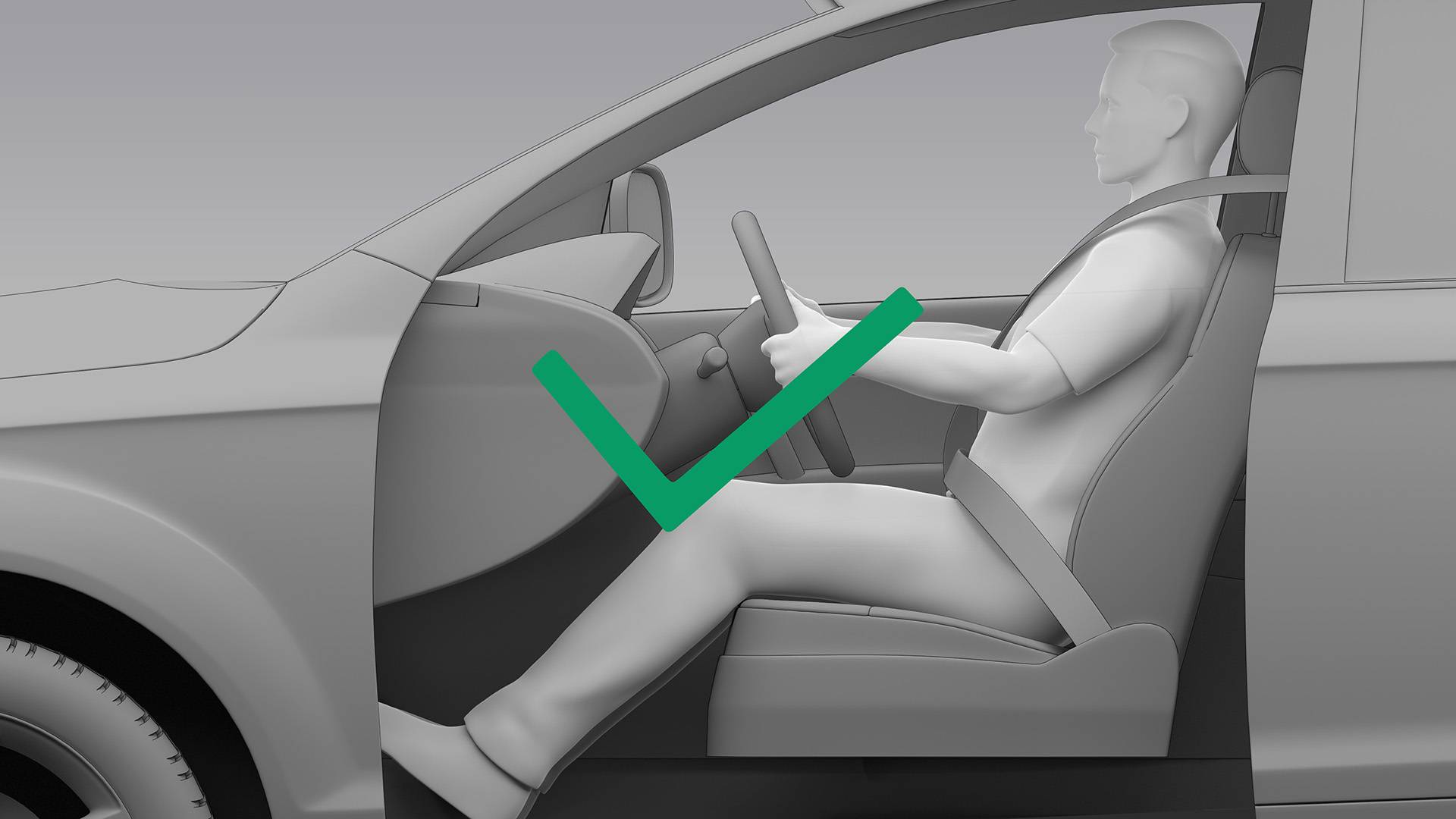

Correcting sitting posture of the driver

To minimize potential risks and protect your safety, please adjust the seat as follows:

• Move the seat back and forth into a position where you can easily floor the accelerator and brake pedals.

• Adjust the seat backrest to a suitable straight-back sitting posture where your back completely fits the backrest, and the backrest does not recline too much.

• Adjust the height of the seat to an appropriate position where you can comfortably put both hands on the steering wheel.

• Adjust the steering wheel so that there is at least 25cm of distance between your chest and the steering wheel.

• Lay the middle part of the seat belt between your neck and shoulder. Fit the lap section of the seat belt tightly across your hip joints, not across your abdomen.

Adjusting the seat position via buttons

The buttons under the seat allow passengers to adjust the position of the front passenger seat.

1. Length of seat cushion

   Toggle the button back and forth to adjust the length of the seat cushion.

2. Front inclination angle of seat cushion

   To adjust the seat cushion's front inclination angle, turn this button.

3. Lateral position of the seat

   Toggle this button back and forth to move the seat forward or backward.

   Height of seat

   To raise or lower the seat, toggle the center portion of this button up or down.

4. Reclining of the backrest

   Toggle the upper end of this button back and forth to adjust the reclining of the seat backrest.

5. Lumbar support adjustment

   Press and hold the up, down, left, or right button to adjust the lumbar support.

   Customizable comfort button

   Press the middle button to turn on or off the comfort feature; press+hold the middle button to save the seat's current comfort options.

Adjusting the seat position via buttons

The buttons under the seat allow passengers to adjust the position of the front passenger seat.

1. Front inclination angle of seat cushion

   To adjust the seat cushion's front inclination angle, turn this button.

2. Lateral position of the seat

   Toggle this button back and forth to move the seat forward or backward.

   Height of seat

   Toggle the middle part of this button up or down to move the seat upward or downward.

3. Reclining of the backrest

   Toggle the upper end of this button back and forth to adjust the reclining of the seat backrest.

4. Lumbar support adjustment

   Press and hold the up, down, left, or right button to adjust the lumbar support.

   Customizable comfort button

   Press the middle button to turn on or off the comfort feature; press+hold the middle button to save the seat's current comfort options.

Controlling the movement of the seat on the center display

You can control the movement of the front passenger seat on the center display.

On the front passenger seat control interface of the center display, tap the "Position", "Backrest" and "Cushion" control arrows to adjust the position of the front passenger seat, the reclining of the backrest and the position of the seat cushion respectively.

The center display provides four position options: the default position, regular position, rest position and alternate position. Among which the default position cannot be changed, and the regular position, rest position and alternate position need to be set up by you.

How to set up a memory position:

Enter the Settings interface from the control bar at the bottom of the center display, tap Position Adjustment > Seat > Front Passenger to set up the position of the front passenger seat on this interface.

You can adjust the seat position through the seat buttons or on the center display to set up personalized positions in different scenes by pressing the Regular/Rest/Alternate button on the interface, and the settings will be saved under the corresponding user account. When you need to update a set position, adjust the seat and re-save.

Correcting sitting posture of front passenger

To minimize potential risks and protect your safety, please adjust the seat as follows:

• Move the seat back and forth into a position where you can place both feet in the footwell in front of the seat.

• Adjust the seat backrest to a suitable straight-back sitting posture where your back completely fits the backrest, and the backrest does not recline too much.

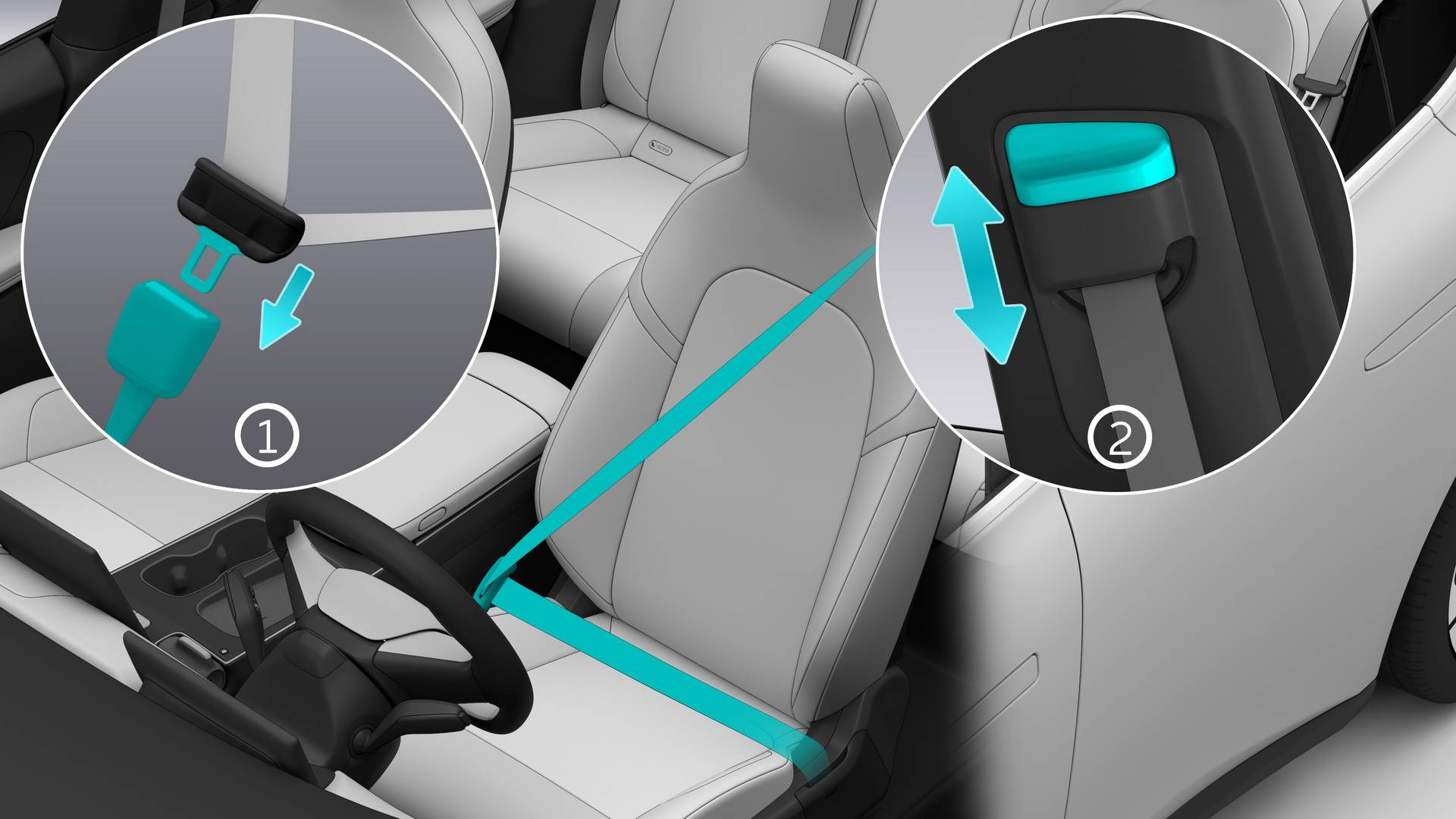

• Lay the middle part of the seat belt between your neck and shoulder. Fit the lap section of the seat belt tightly across your hip joints, not across your abdomen.

Correct Sitting Posture of Rear Row Passengers

To minimize potential risks and protect your safety, please adjust the seat as follows:

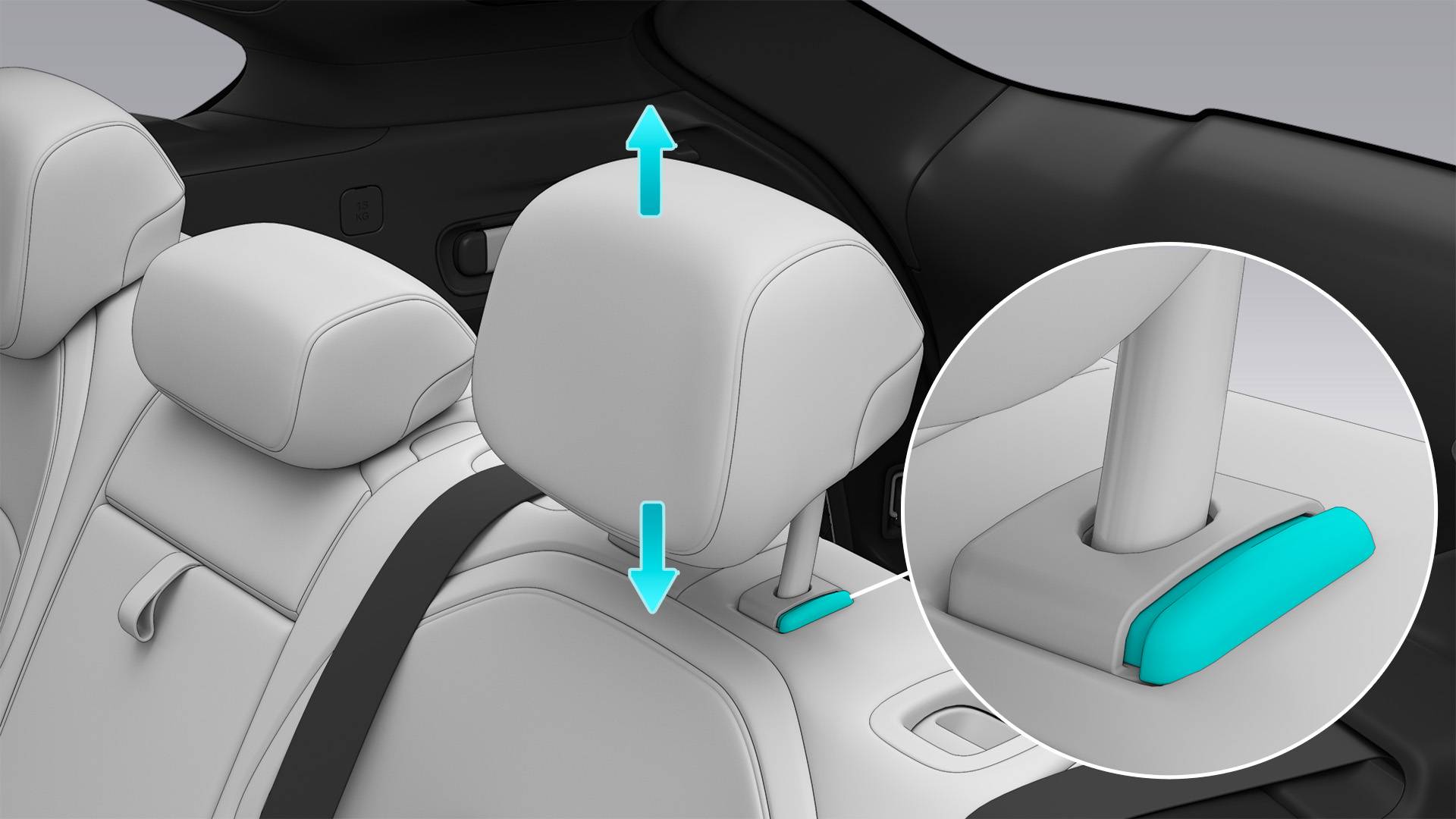

• Adjust the headrest so that the center of the headrest is flush with your eyes.

• Place your feet in the footstep space in front of the rear seats.

• Place the middle part of the seat belt between your neck and shoulder, and tightly wrap the lap part of the seat belt around your hip joint (not your abdomen).

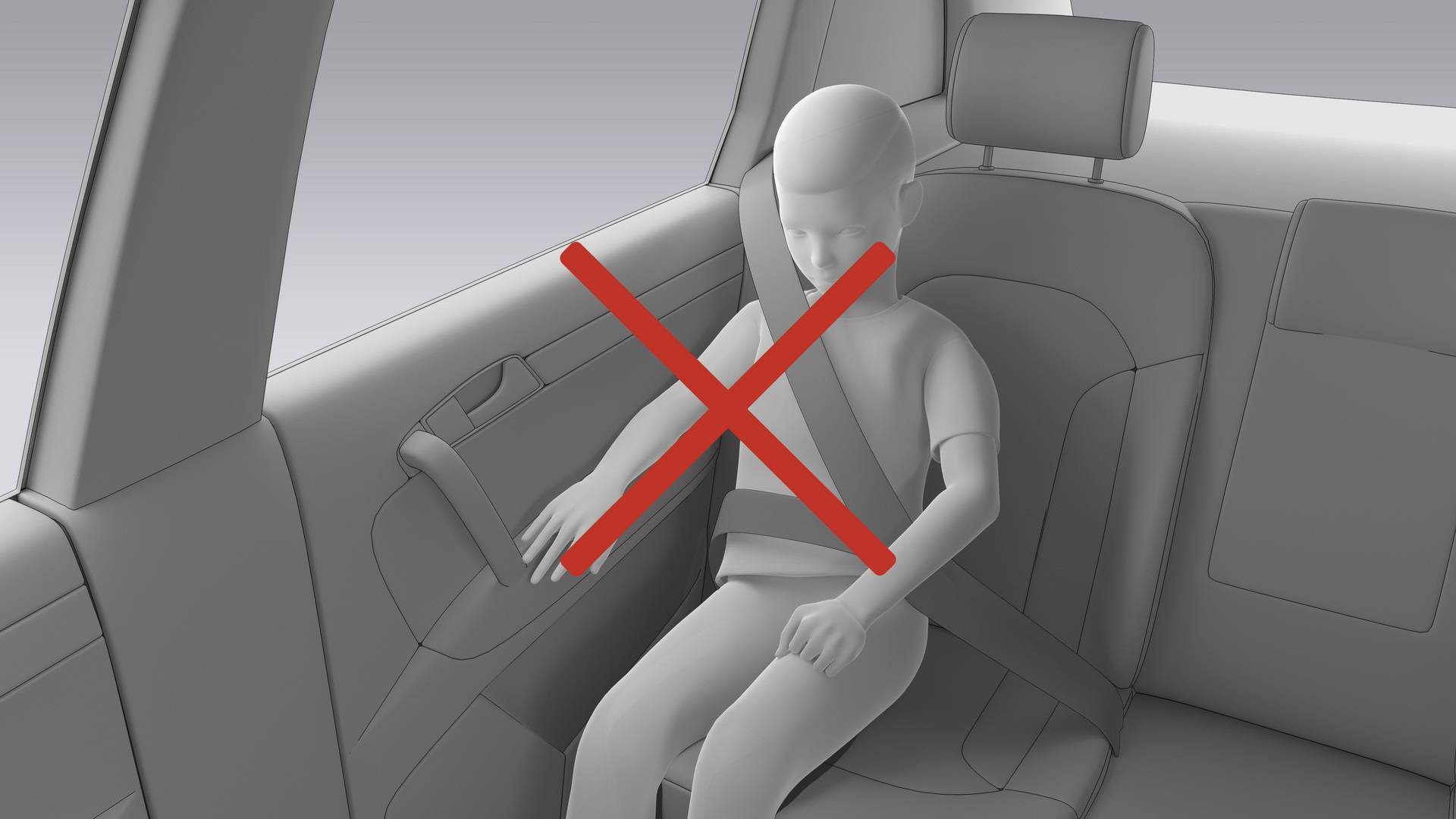

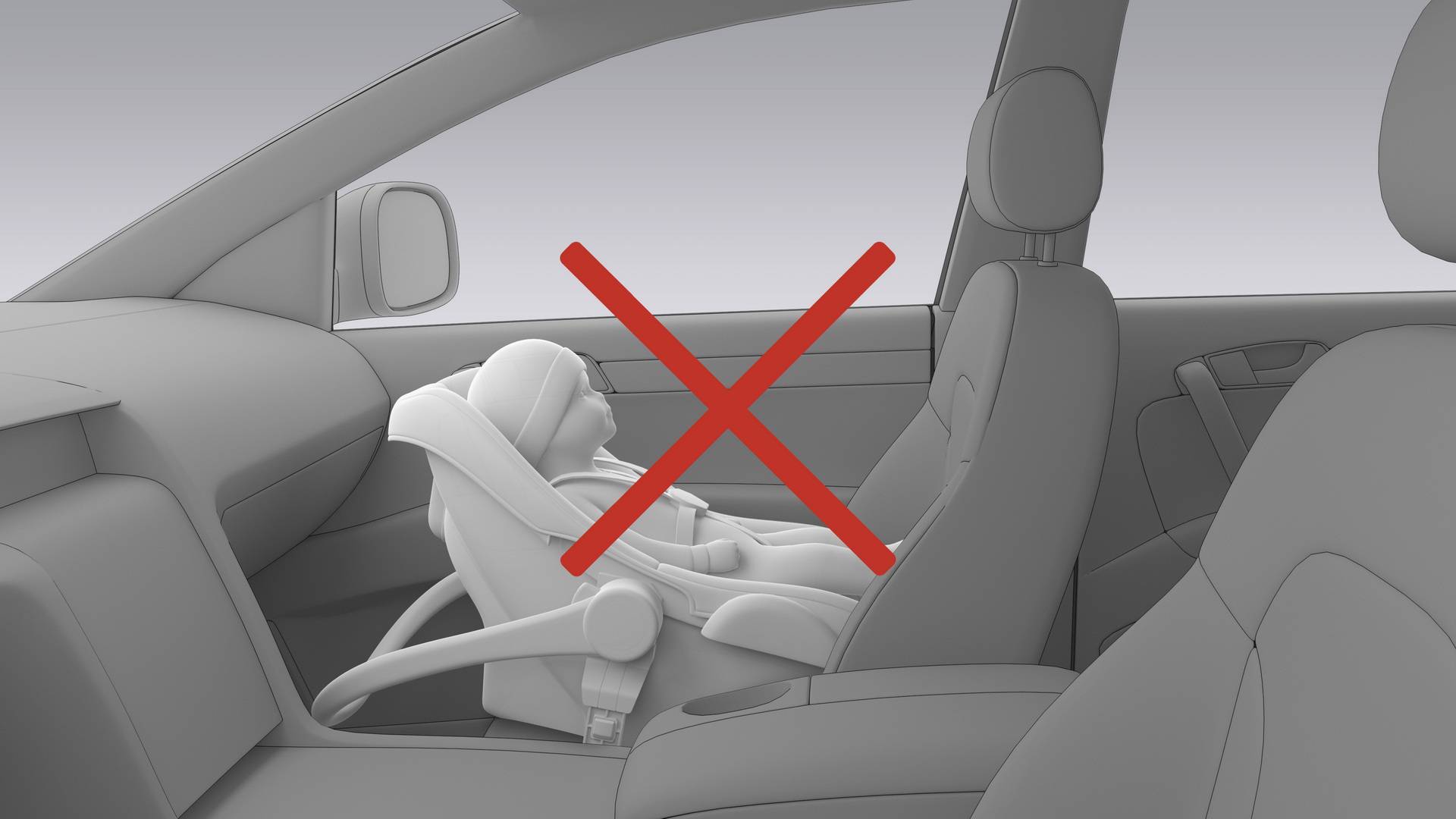

• When driving with children in your vehicle, use appropriate child safety seats to protect children. See the chapter on child safety seats for details.

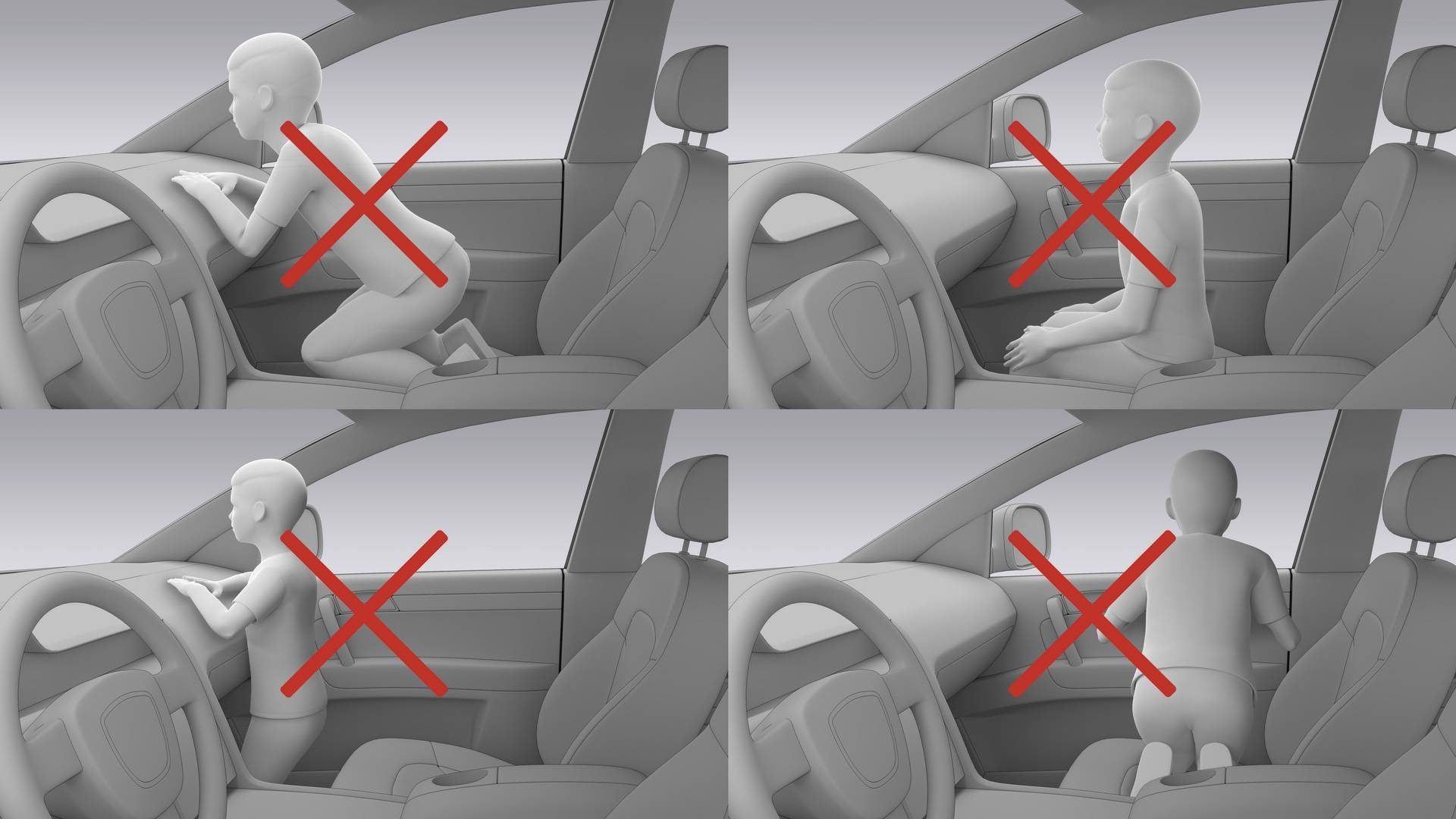

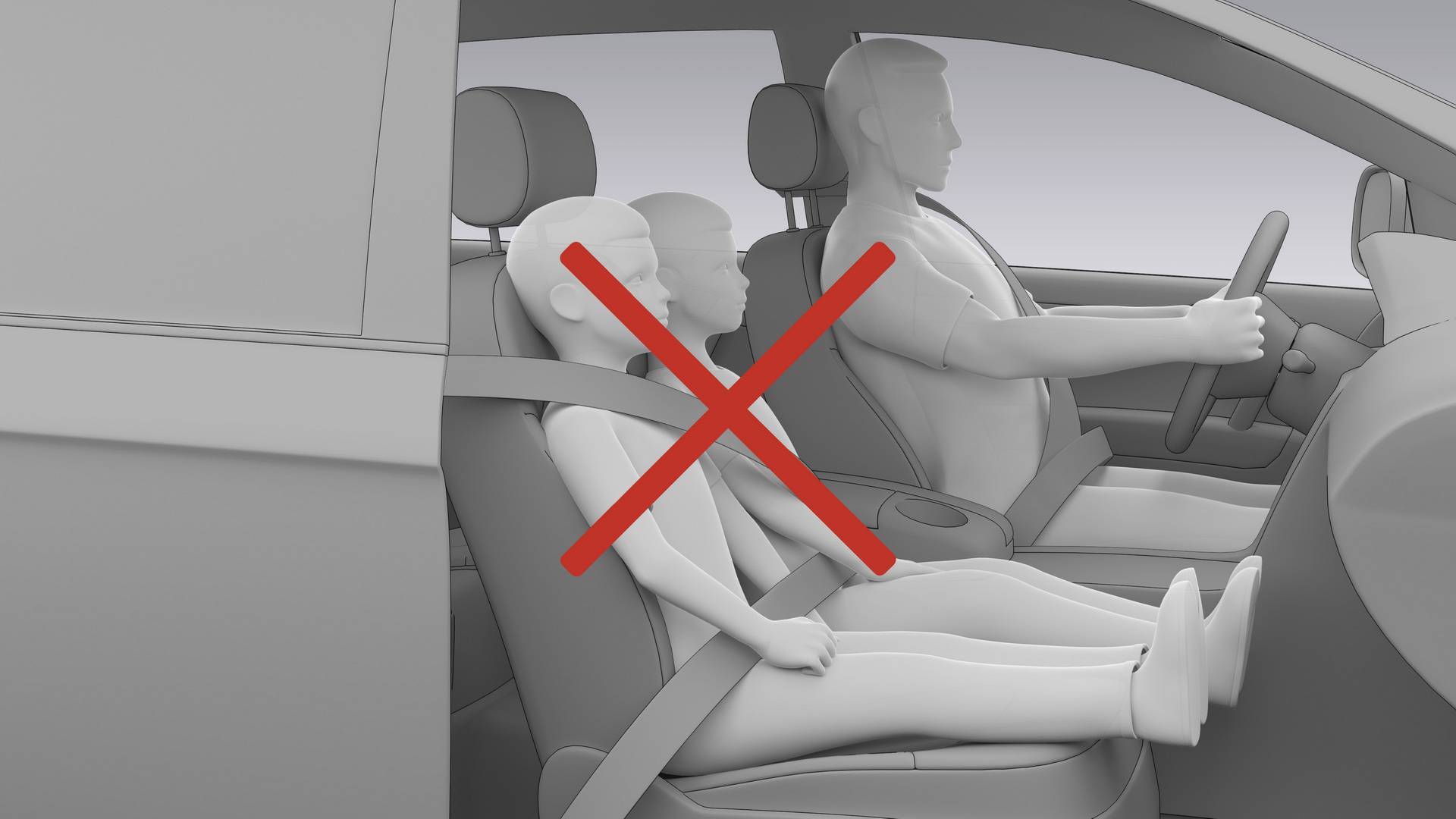

Warning 后排乘员请勿有以下乘坐行为：

Passengers in the rear seats are prohibited from engaging in the following behaviors:

The massage will automatically turn off if the massage mode is not switched within 20 minutes.

Driver Easy Entry

After initializing the driver’s seat on the center display, you can set the most convenient exit position for you to get out of the vehicle. With the vehicle stopped and in PARK, the driver’s seat will move to the preset exit position (including the cushion position and backrest inclination) when you open the driver’s door, and the steering wheel will move to the uppermost position. This will provide you with a larger space to get in and out of the vehicle conveniently.

You can enter Settings from the bottom of the center display, and tap Position Adjustment > Driver Seat > Driver Easy Entry to enable or disable this feature. You or an authorized user can personalize the exit position for the corresponding account. After manually adjusting the driver’s seat to your desired exit position, tap Position Adjustment > Driver Seat > Position Memory and choose Exit Position to save the current settings. Every time you open the driver’s door or unfasten the seat belt (which can be selected from the center display) to get out of the vehicle, the driver’s seat will move to the corresponding exit position.

Front Passenger Easy Entry

If a passenger opens the front passenger door when the vehicle is stopped and in PARK, the front passenger seat will move to the preset exit position (the position of the cushion and inclination of the backrest will move to the rear, and the leg support will automatically move to its lowest position) to make entering and exiting the vehicle more convenient.

You can enter Settings from the bottom of the center display, and tap Position Adjustment > Front Passenger Seat > Front Passenger Easy Entry to enable or disable this feature. Front Passenger Easy Entry has two setting options:

• Exit: When the passenger unfastens the seat belt and opens the passenger door (which can be selected from the center display), the seat will move to the default position; when the passenger gets into the vehicle and closes the passenger door, the seat will remain unchanged from the default exit position.

• Exit + Entry: When the passenger unfastens the seat belt or opens the passenger door, the seat will move to the default position; when the passenger gets into the vehicle and closes the passenger door, the seat will automatically move to the default position saved in the corresponding account (which can be edited from the center display).

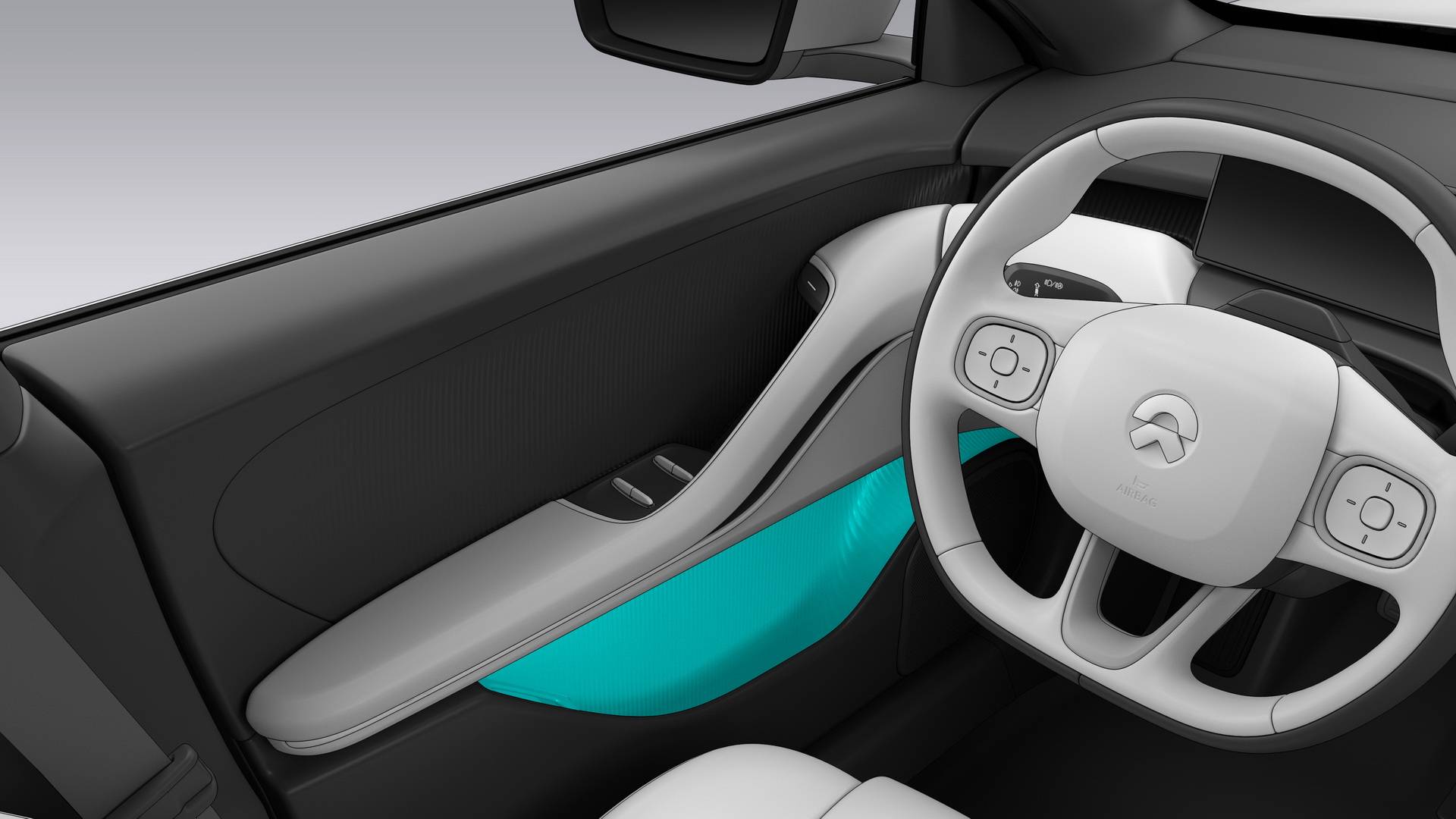

Door Storage

There is a storage space at the lower part of each door, which can be used for storing items, and is equipped with door storage lighting for illumination at night, when the light is dim or when the position lights are turned on.

Cup Holder

There are two cup holders on the central armrest, which can be used for drinks.

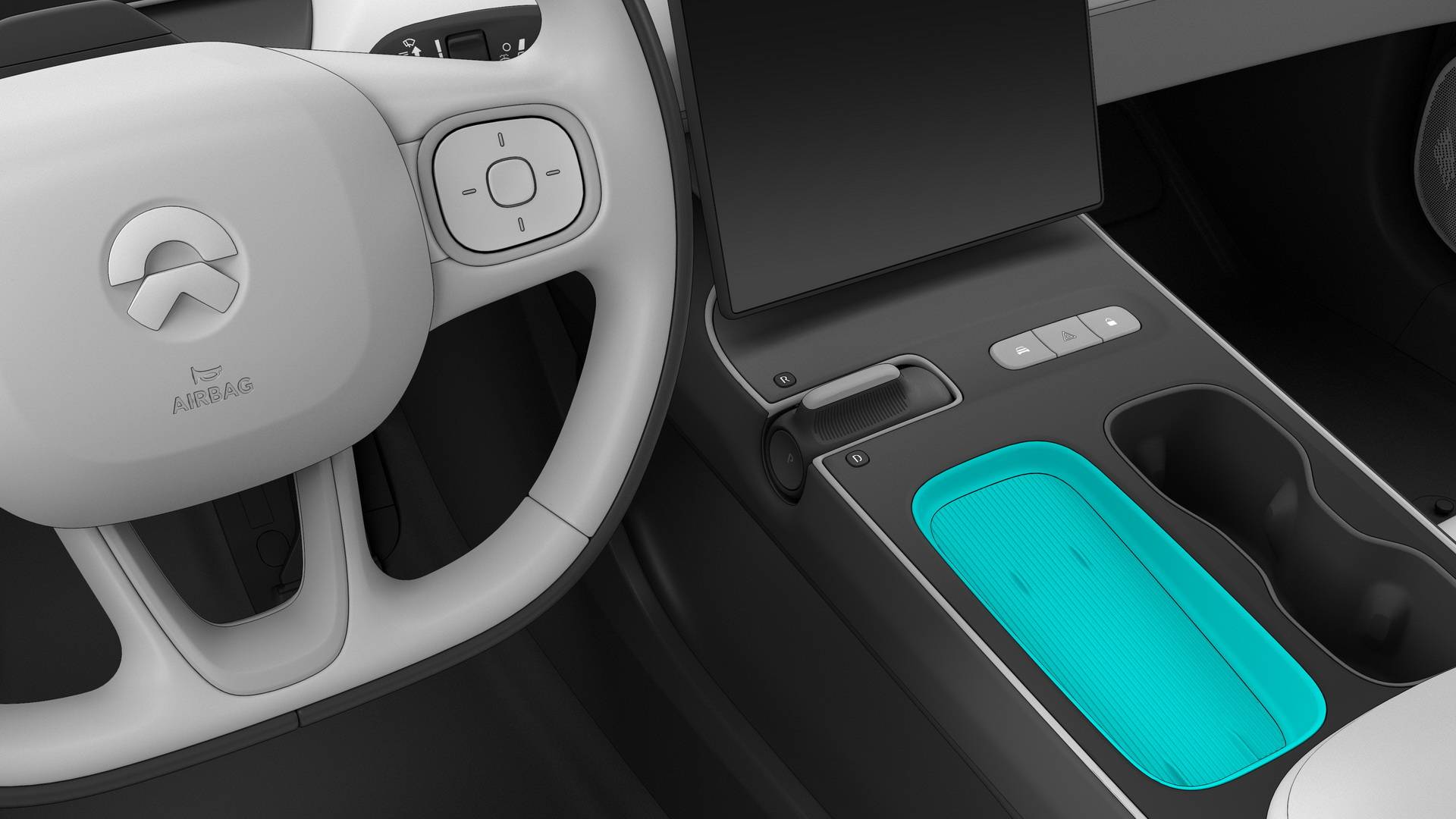

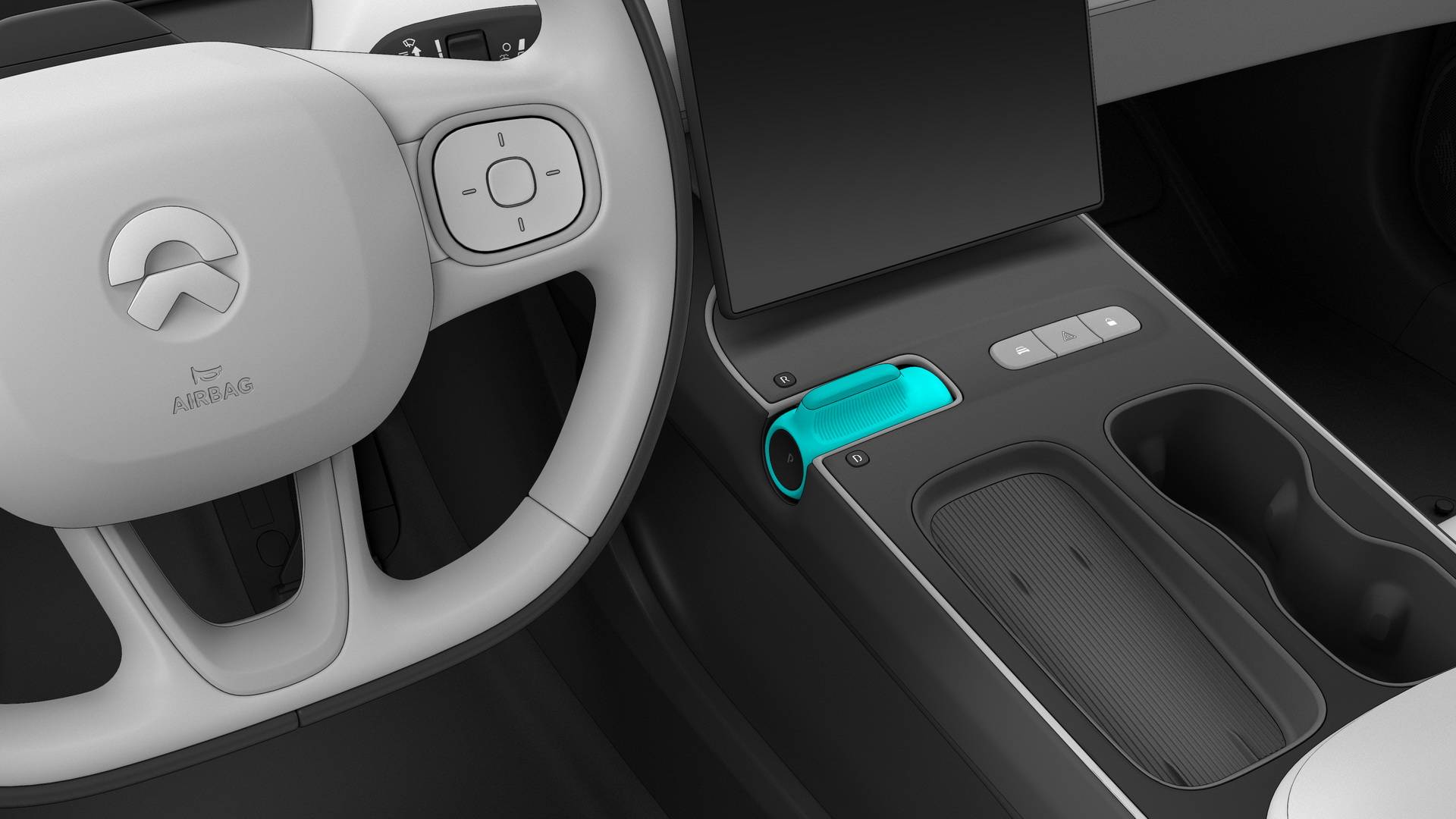

Center Console Open Storage

The open storage space under the center console can be used for temporary storage of some non-important items, and there is a 12V power supply at the rear that can be used to charge the passenger's electronic devices.

Rear Doors

There are convenient storage spaces beside the rear seats. There is a storage space on both rear doors, which can be used for drinks or items, and is equipped with door storage lighting for illumination at night, when the light is dim or when the position lights are turned on.

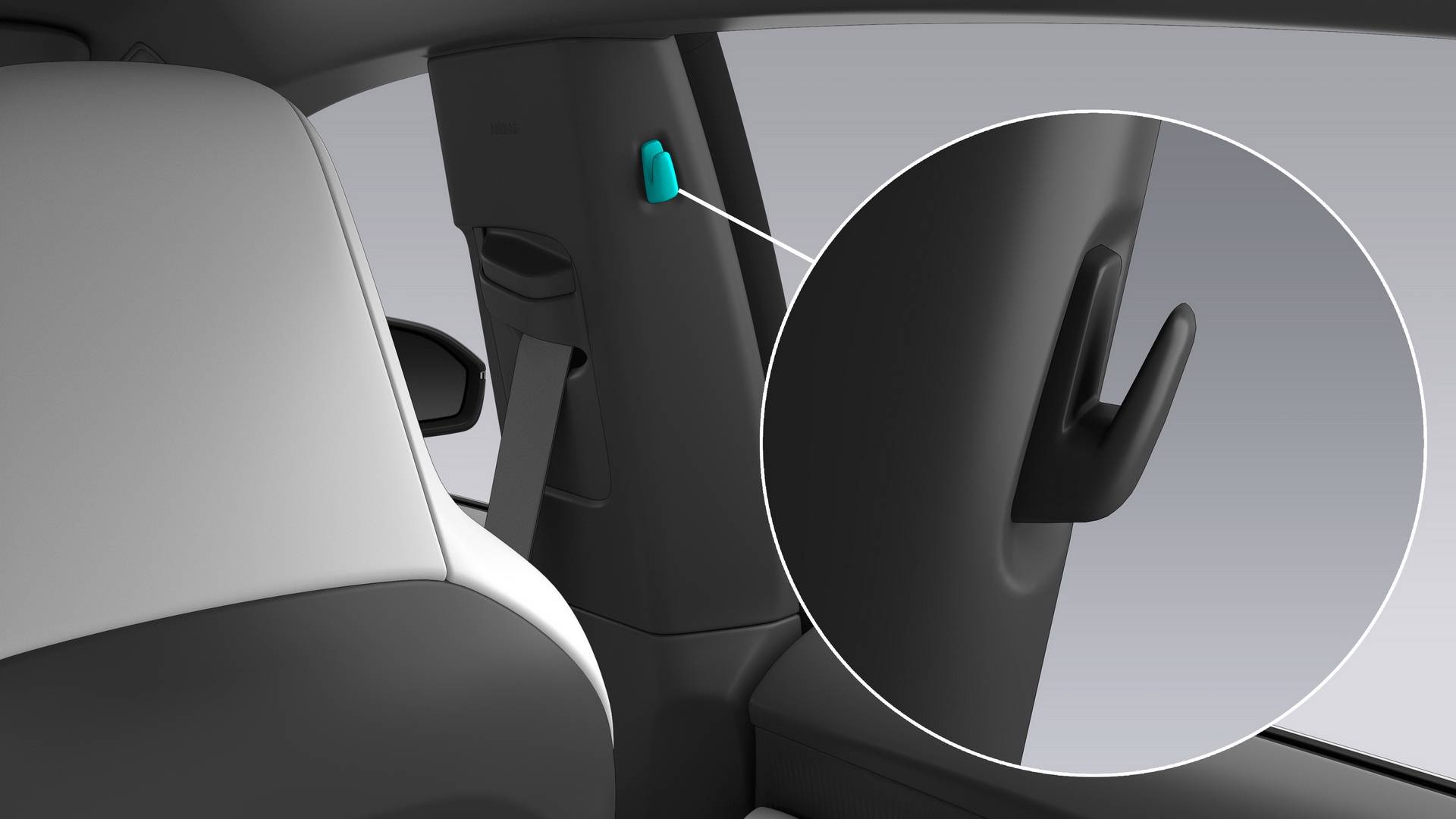

There are also coat hooks beside both rear doors, which can be used to neatly store clothes.

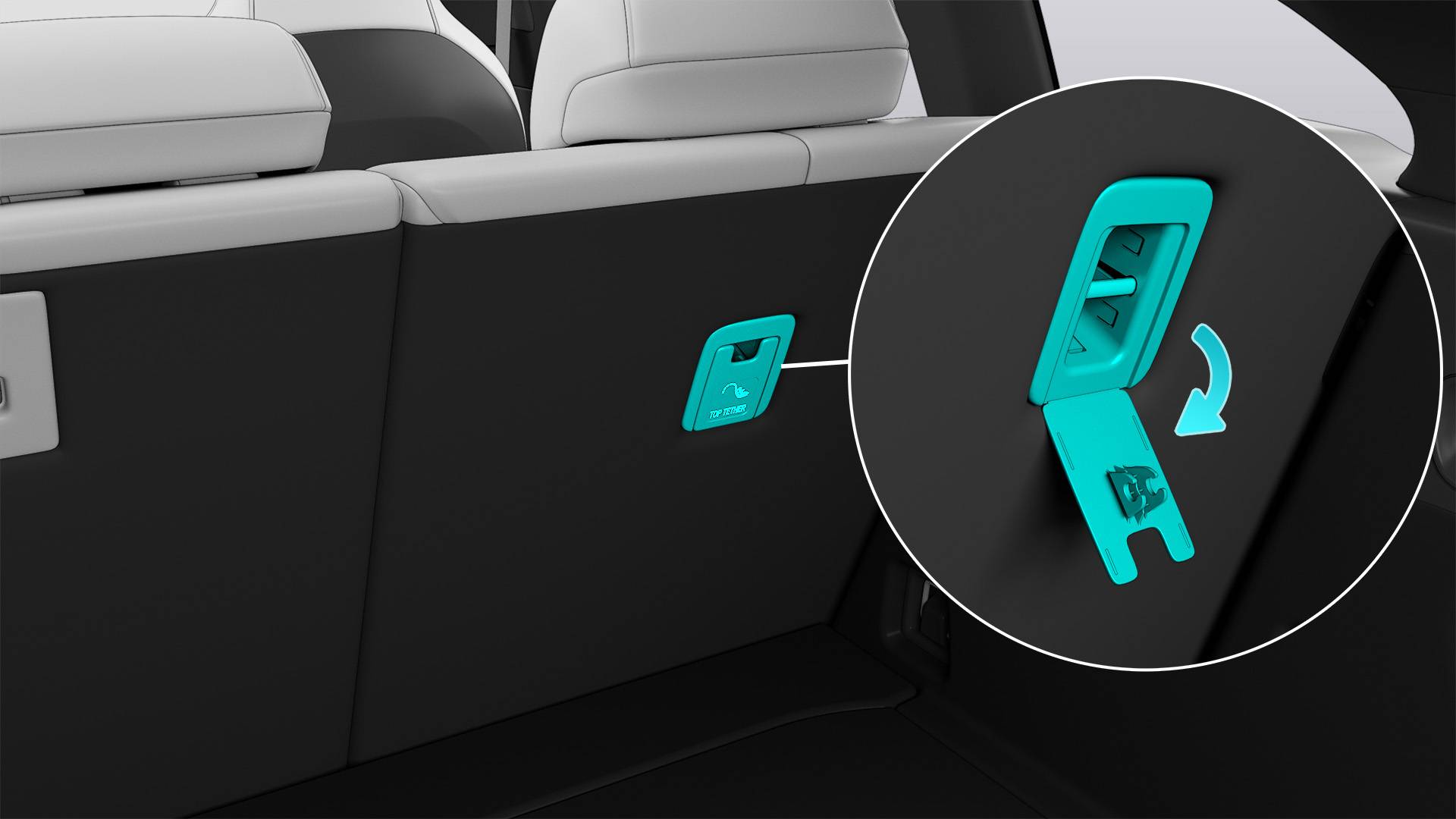

There are cargo barrier net installation slots on both sides of the rear ceiling. When loading items in the rear trunk or with the second row backrest folded down, the cargo barrier net can be installed to prevent the items from impacting the front passengers due to unexpected situations such as sudden braking or collision of your vehicle.

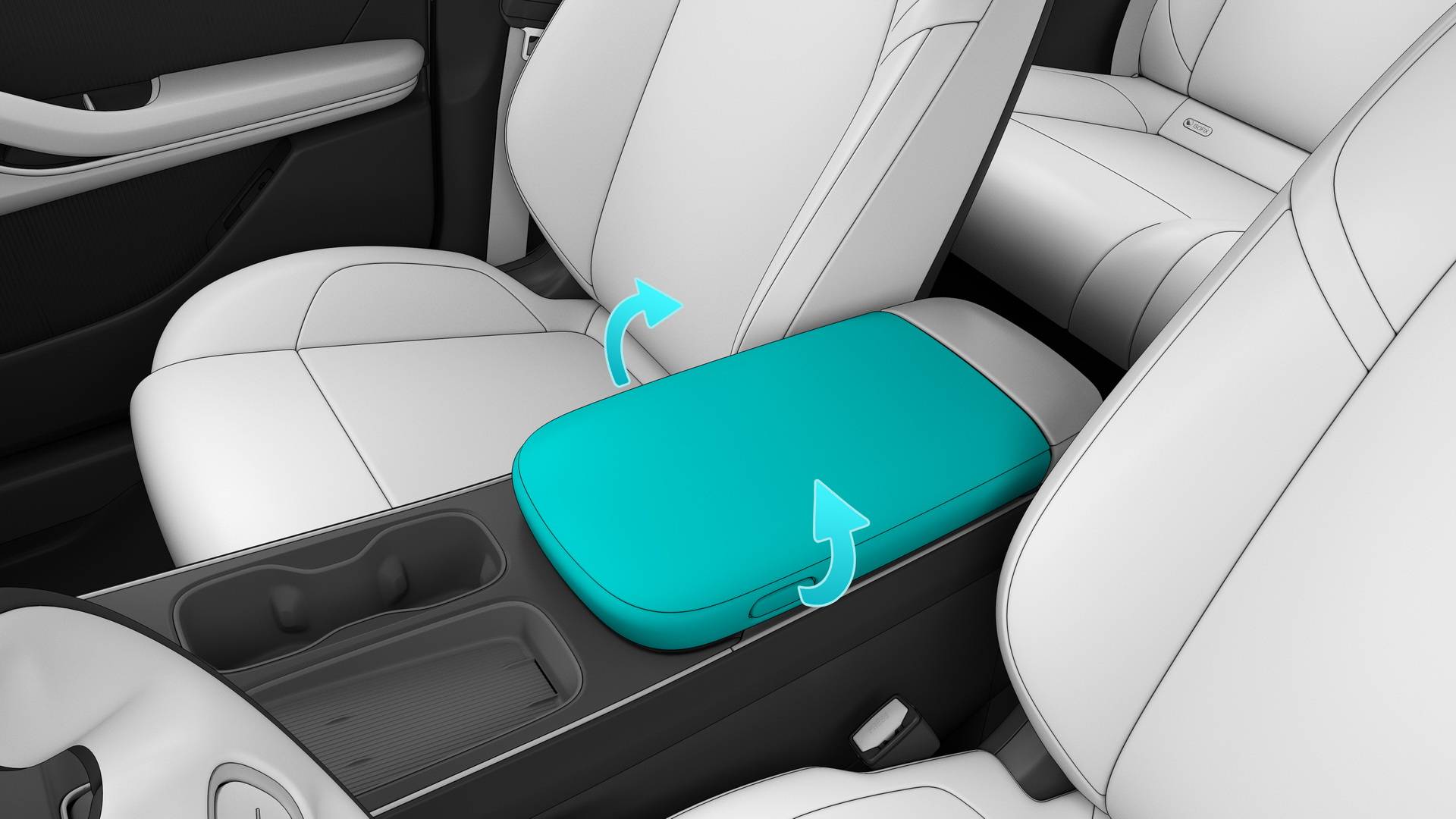

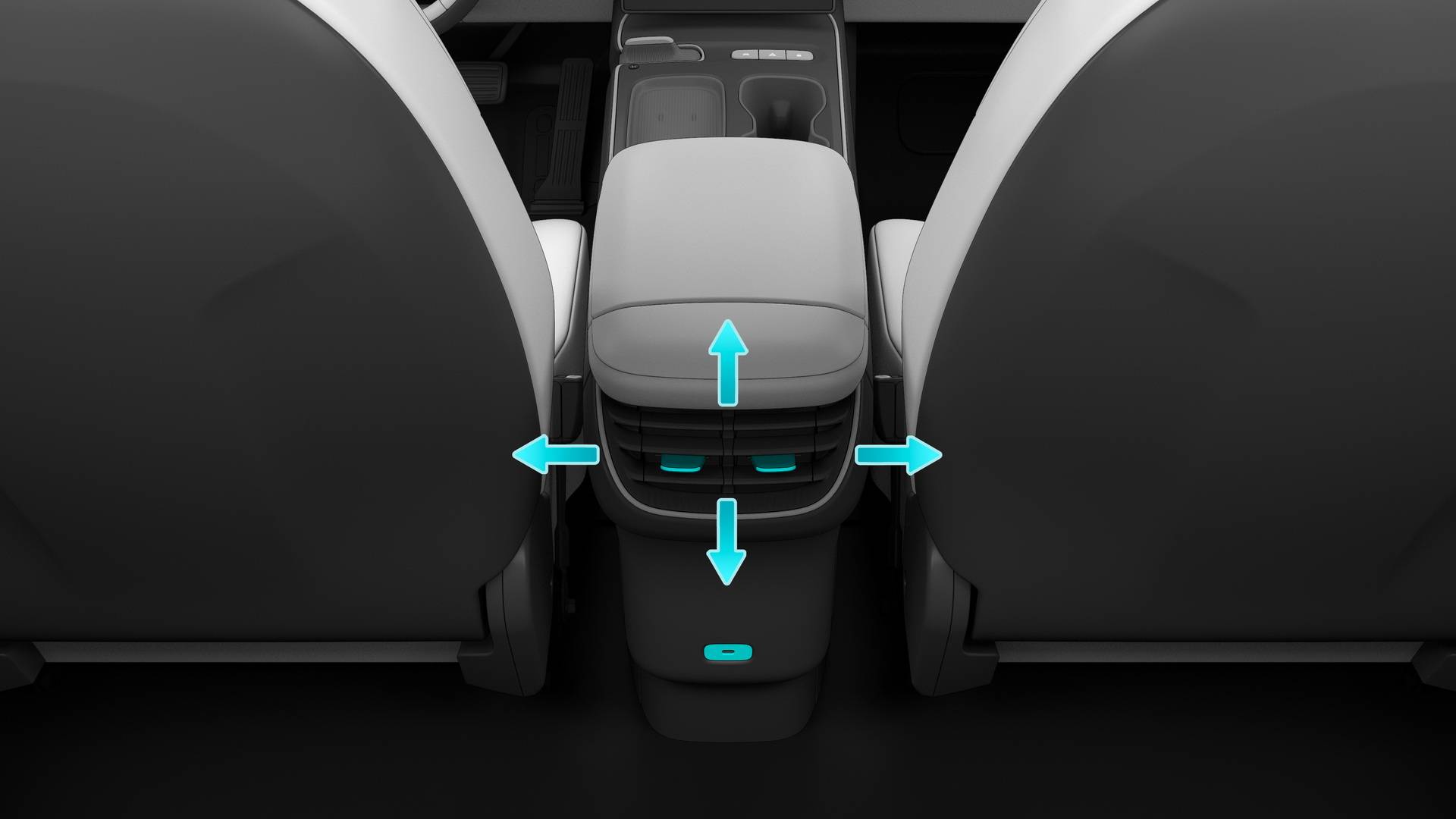

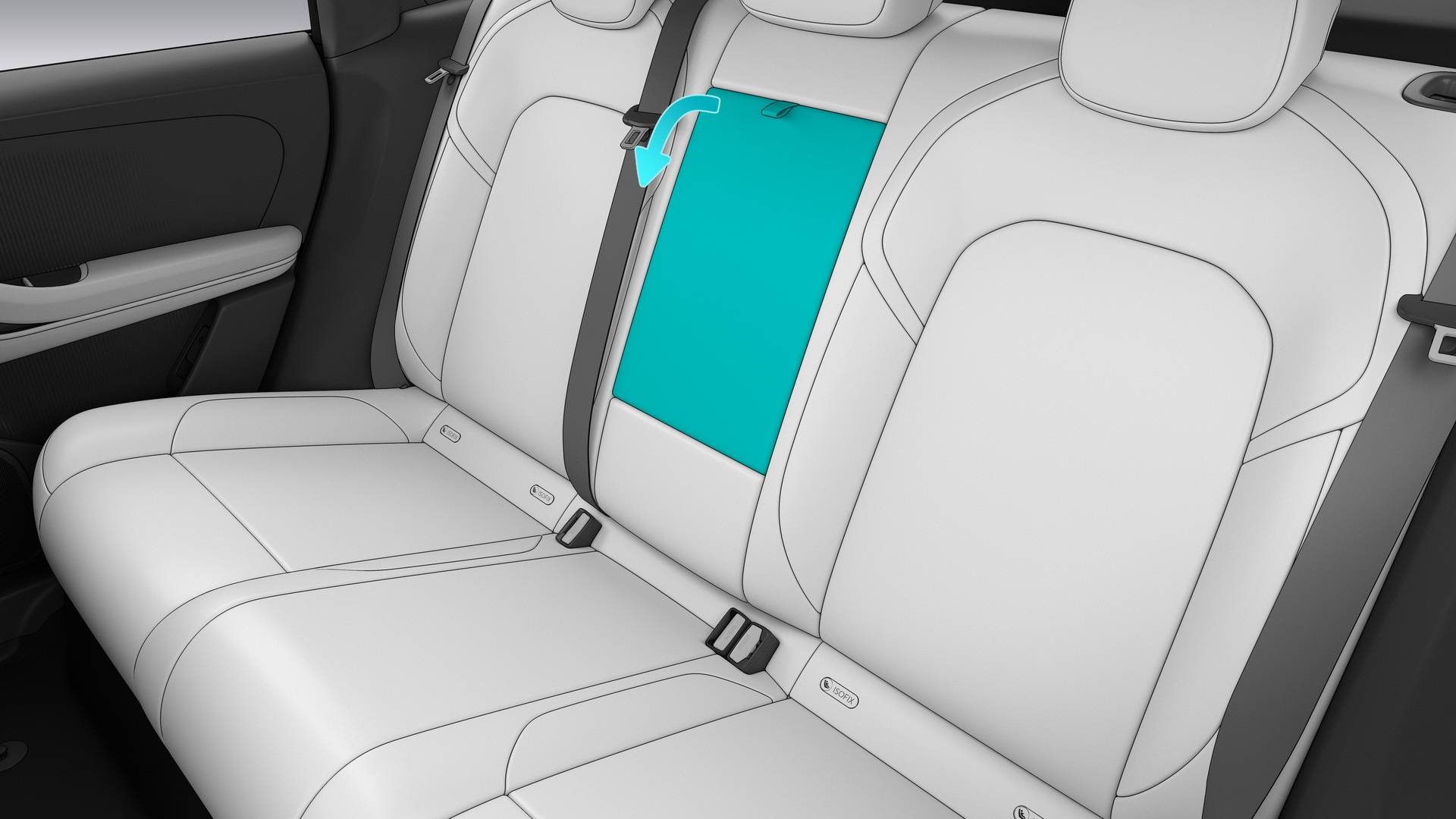

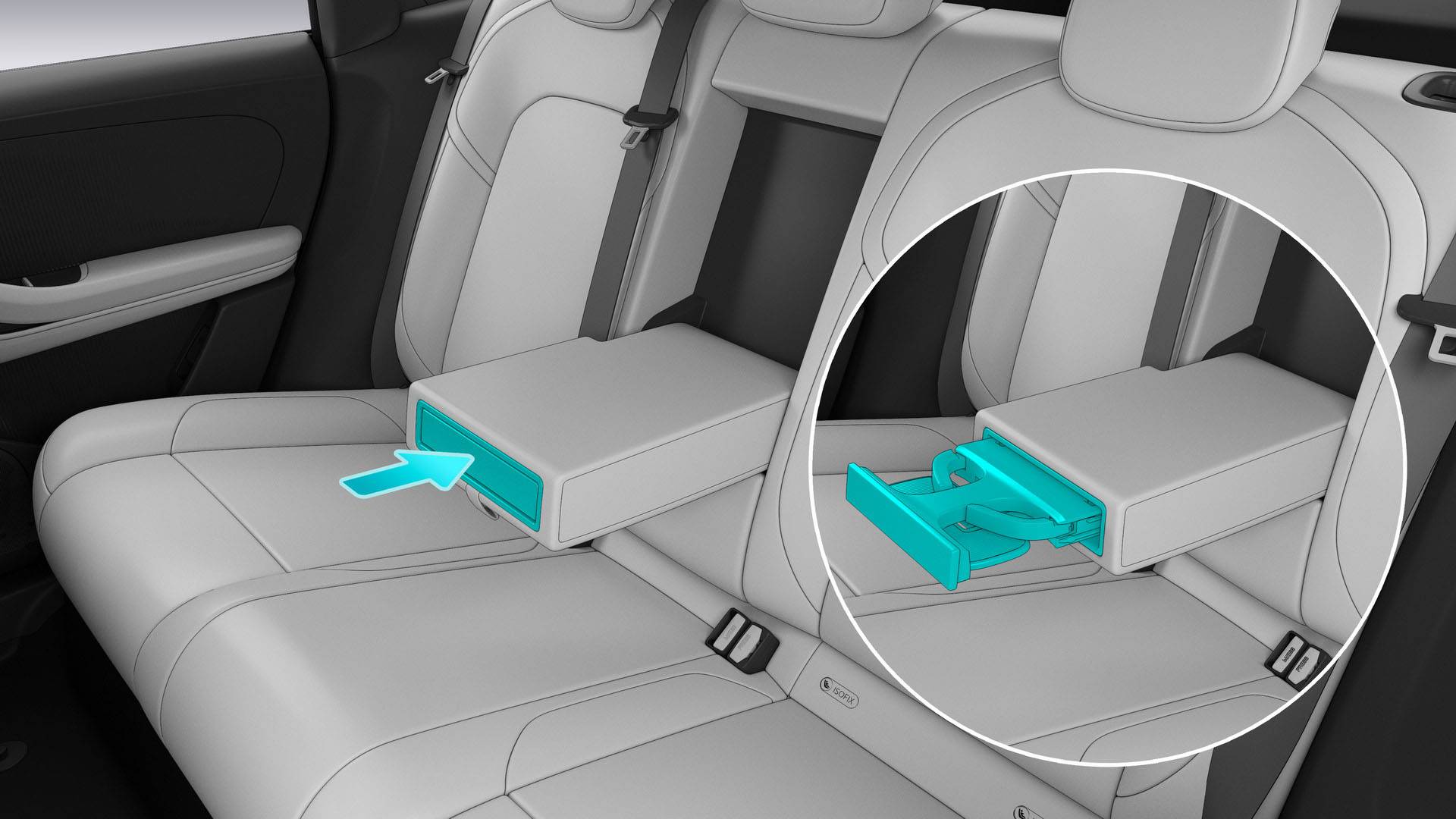

Rear Central Armrest

When the rear middle seat is not occupied, you can flip open the central armrest on the backrest to expose the cup holders.

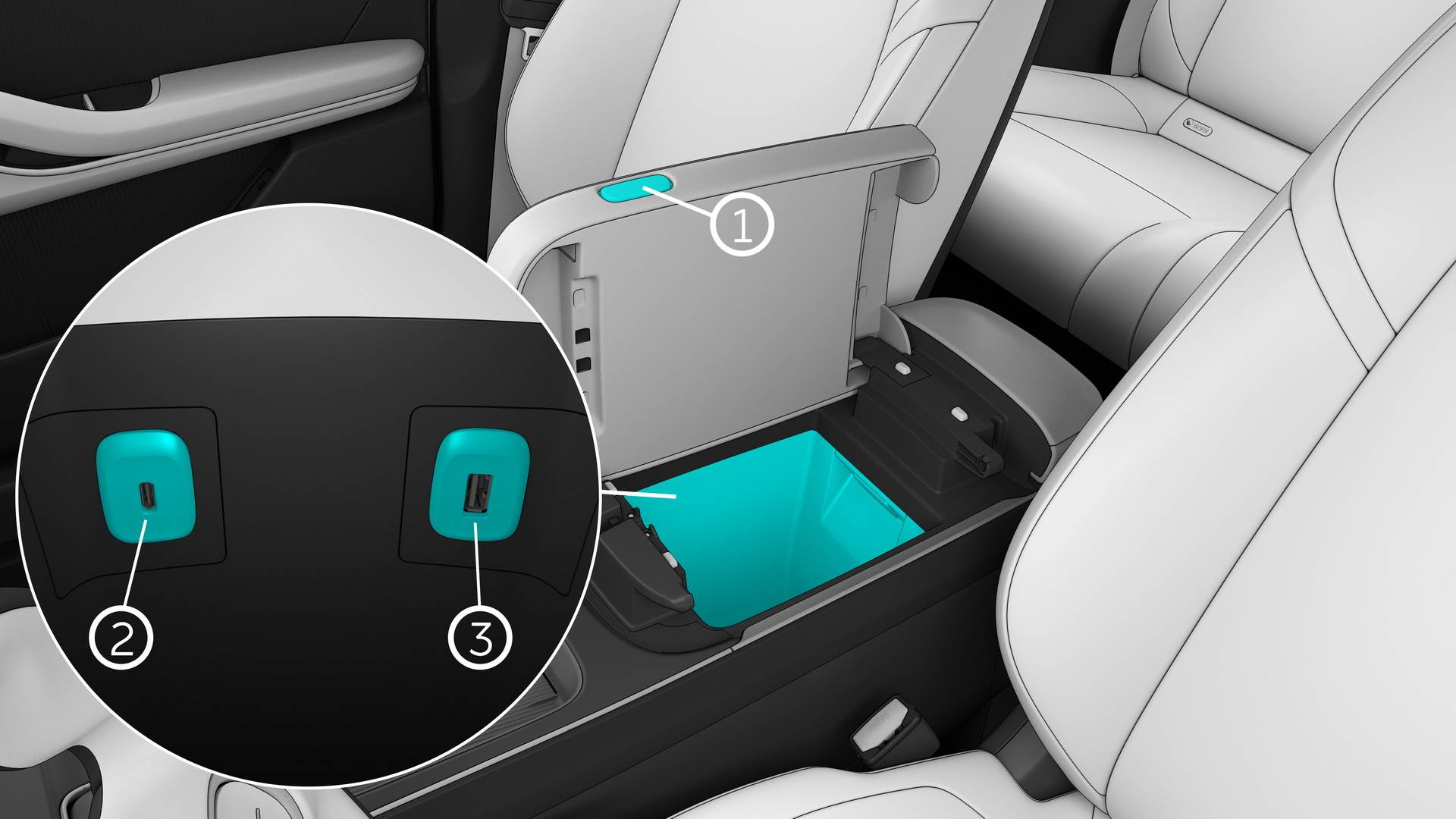

Storage Box Mode

The safety storage box is in the Storage Box Mode by default. In this mode, the safety storage box is not locked, and its flip cover can be opened through the buttons on the left and right sides of the central armrest:

1. Storage box buttons

   Press the button to open the flip cover. It can be used to store mobile phones, tissues and other items (one button on each side).

2. Storage box USB Type C port (60W)

   High-speed transmission port for charging mobile devices, not supporting data transmission.

3. Storage box USB Type A port (2.5W)

   Ordinary transmission port for data transmission such as USB media audio source, Digital Video Recorder (DVR) video export, microphone access, etc.

Safe Box Mode

Swipe right on the main interface of the center display to enter the Quick Access interface, and tap Safe Box. When the Safe Mode is turned on for the first time, a pop-up window for setting the password will pop up on the center display, and you need to set a password to finish setting up Safe Box Mode.

Once set, you need to enter the password on the center display to unlock the safety storage box, then you can open the flip cover through the buttons on both sides of the central armrest.

Mode Switch

To switch between the two modes of the safety storage box: enter the Settings interface from the control bar at the bottom of the center display, and tap Security > ARMREST BOX to switch between Storage Box Mode and Safe Box Mode.

Rear Trunk Hook

Two strap hooks are equipped on two sides of the rear trunk for hanging items such as handbags.

The strap hooks bear a maximum hanging weight of 3 kg.

Two hooks are installed on two sides of the rear trunk door for hanging camping lights and other items for static scenes.

The hooks bear a maximum hanging weight of 2 kg.

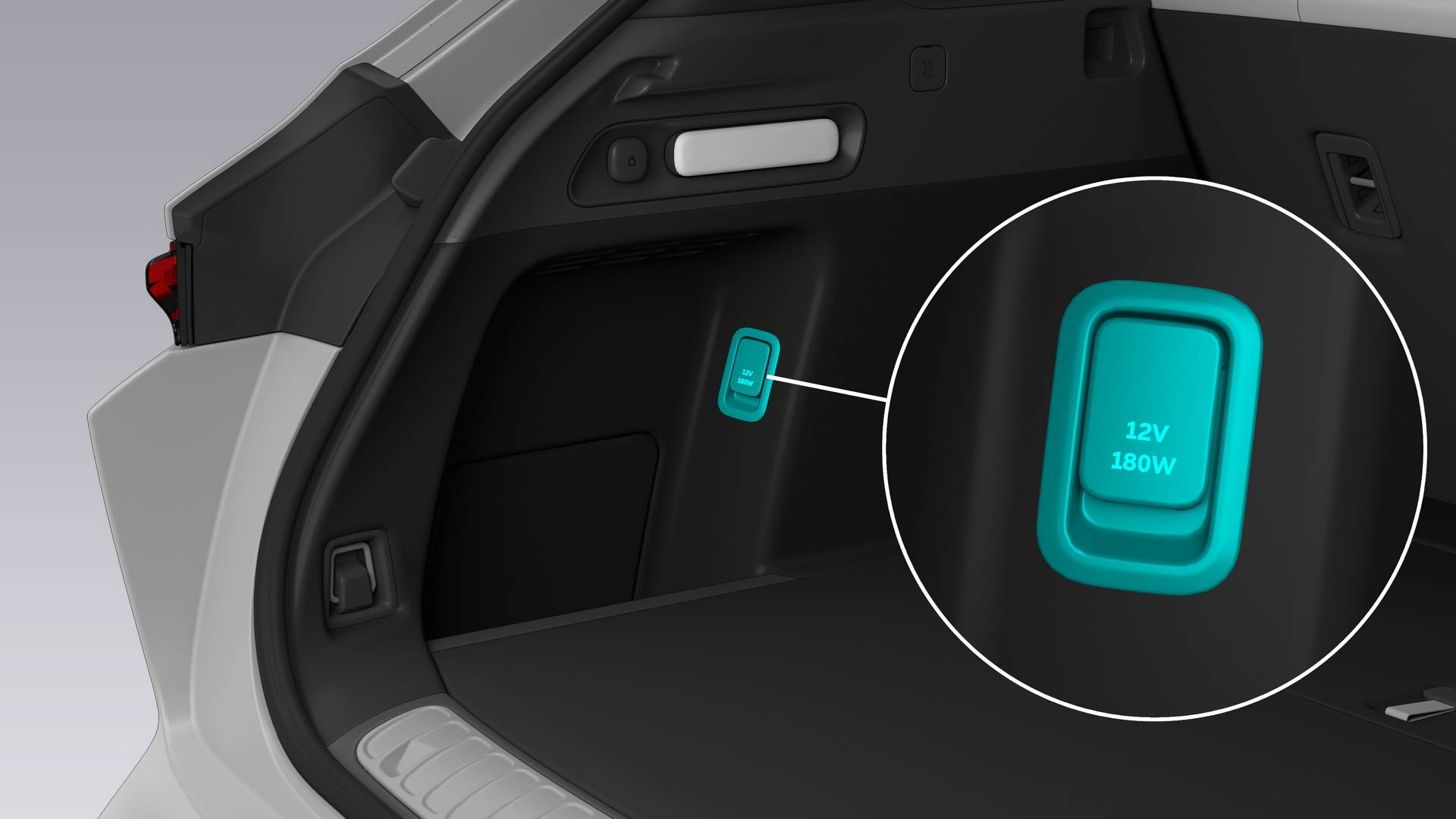

Rear Trunk 12V Power Supply

The 12V power supply is located at the left side of the rear trunk, which can supply power to external devices as needed.

Towing Accessory

The vehicle towing kit is a spherical coupling with the national standard ECR R55, which can support towing accessories (such as trailer, caravan, bicycle).

The spherical coupling is designed to support a vertical load of up to 75 kg. When carrying bicycles or other items in the towing device, always check to ensure that the maximum weight is not exceeded. When calculating the weight, please remember to include the weight of the accessory bracket. For example, if the weight of the carrier is 14 kg, it is sufficient to carry two bicycles with a weight of about 20 kg each or four bicycles with a weight of about 10 kg each for the weight threshold.

Towing a trailer and carrying accessories will increase the weight and resistance of the vehicle, so the driving range may be significantly reduced with a trailer. Although the vehicle range calculator tries to adjust the range estimate according to the Trailer Mode, the actual energy consumption may vary. You need to plan your travel distance and destination reasonably.

To install and use the accessory bracket, the towing device must be connected. Then follow the instructions provided with the accessory bracket. You need to comply with all regulations and legal requirements applicable to carrying accessories. The vehicle towing kit includes the wiring of the lights required for the accessory bracket.

When towing accessories, verify regularly that the accessory bracket and its goods are always in a safe state, and also verify that the lights on the accessories work properly (if any).

Towing Capacity

The total weight of the trailer (including all goods and additional equipment) and the carrying capacity of the tow hitch shall not exceed the following values:

The tow hitch carrying weight is the downward force exerted by the trailer weight on the tow hitch. It shall not be less than 4% of the trailer load. Loading a large number of equipment, passengers or goods in the trailer can reduce the towing weight that it can bear, which will also reduce the maximum towing capacity. Assuming that the trailer load does not exceed the Gross Vehicle Weight Rating (GVWR), the maximum towing capacity can be calculated. GVWR is printed on the vehicle nameplate.

If you drive a tractor with a C6 driver's license, you must ensure that the total mass, including the mass of the tractor and trailer, is less than (not including) 4,500 kg.

Tire Pressure During Towing

The tire pressure must be adjusted to adapt to the additional load for towing. Keep the tire inflated to 290 kPa. The maximum permitted uphill slope is 12% for towing.

Operations Before Towing

Before towing, the following operations must be performed:

• Inflate the tire to the specified cold tire inflation pressure for towing.

• Make sure you understand and comply with all local regulations and legal requirements for towing.

• Adjust the rearview mirror to provide a clear view behind you that avoids obvious blind spots.

• Enable Trailer Mode in the center display.

Confirm the following:

• The tractor driver must hold a C6 driver's license.

• The vehicle needs to be level when connecting to the towing device. If the front of the vehicle is tilted upward and the rear is tilted downwards, please confirm that the maximum towing capacity and tow hitch carrying weight provided in the "Towing Capacity" table are not exceeded.

• All towing device components, accessories, and electrical connectors (if any) are in good condition, and are connected correctly. Do not tow if there are any obvious problems.

• The trailer lights (brake lights, turn signal lights and marker lights) work properly.

• The towing tongue is firmly connected to the towing ball.

• All items inside the vehicle are secure in place.

• You may use wheel chocks.

• The towing load is evenly distributed so that the weight on the towing tongue is about 4% of the total towing weight and does not exceed the maximum bearing weight of the towing tongue provided in the "Towing Capacity" table.

Trailer Mode

Before towing, please shift to the P gear, go to the Settings interface from the control bar at the bottom of the center display, and tap Driving and Parking > Tow Hitch. This will extend the tow hitch. When a trailer is towed, Trailer Mode must always be active. When you connect the trailer's electrical harness, the vehicle will enable Trailer Mode after you confirm. Trailer Mode is deactivated when the trailer's electrical harness is disconnected. To manually enable or exit Trailer Mode, go to the Settings interface from the control bar at the bottom of the center display and tap Driving and Parking > Trailer Mode. One of the following indicators is displayed on the instrument cluster at this time:

ICON	Description
	The vehicle has detected the connection of the trailer lights, but Trailer Mode is not activated. The vehicle may already have an accessory connected.
	The vehicle has detected an electrical connection fault with the trailer lights. Some or all of the trailer lights may be faulty. To ensure your safety, pull over as soon as possible and check the wiring or connection of the trailer lights for faults. If the problem has been resolved but the red icon is still on, please try turning off Trailer Mode and then turning it on again.

Instructions for Towing

Your vehicle is mainly designed as a passenger vehicle. Towing a trailer puts an additional load on the vehicle's motor, transmission, brakes, tires and suspension and significantly reduces its range. If you decide to tow a trailer, please drive carefully and follow the following guidelines:

• Reduce your driving speed and avoid sudden maneuvers. When a trailer is towed, the steering, stability, turning radius, stopping distance and braking performance are different from those without a trailer.

• Keep at least twice the distance from the vehicle in front of you as when you are not pulling a trailer. This helps to avoid situations requiring emergency braking. Sudden braking may cause skidding or bottoming out and loss of control.

• Avoid sharp turns, which may cause the trailer to contact the vehicle and cause damage. Since the wheels of the trailer are closer to the inside of the turn than the wheels of the vehicle, the turn radius must be larger to prevent the trailer from hitting the curb, road signs, trees or other objects.

• Check the trailer lights and turn lights regularly to verify that they continue to work properly.

• Verify regularly that any items inside the vehicle are safe.

• Verify regularly that the trailer brake works properly.

• Avoid parking on a slope.

• Verify regularly that all towing parts have been firmly tightened.

• When a trailer is hitched, the LED taillight of the trailer may flash very slightly, which is normal.

• People are not allowed to ride in the trailer during towing.

• Place weight in the trailer near the axle as much as possible to reduce interference to the train set when swinging.

Trailer Parking

It is recommended not to park your vehicle on slopes with gradients exceeding 12%. If you have to park the vehicle on a slope, please place wheel chocks under the trailer wheels:

• One person depresses and holds the brake pedal;

• Another person places wheel chocks under the wheels on the downhill side;

• When the chocks are in place, release the brake pedal and ensure that the chocks can bear the weight of the vehicle and trailer (do not activate Autohold).

• Put the vehicle into the P gear and engage the parking brake.

Electrical Connection

All trailers are equipped with taillights, brake lights, side indicators and turn lights. In order to provide power for the trailer lighting, the towing device is equipped with a built-in 13-pin electrical connector. Inserting the trailer plug into the vehicle electrical connector will enable Trailer Mode after you confirm.

1. Left turn light (yellow)

2. Right fog light (blue)

3. Pin 1-8 grounding (white)

4. Right turn light (green)

5. Right taillight (brown)

6. Brake light (red)

7. Left taillight (black)

8. Reverse light (pink)

9. No output for now (orange)

10. 12V power output when the vehicle is awakened (gray)

11. Pin 10 grounding (black and white)

12. Reserved interface (light gray)

13. Pin 9 grounding (red and white)

Start Adjustment

Enter the Settings interface from the control bar at the bottom of the center display, and tap Position Adjustment > Steering Wheel > Start Adjusting to adjust the position through the buttons on the right side of the steering wheel. See Start Adjustment.

Adjusting the Right Side Mirror

Enter the Settings interface from the control bar at the bottom of the center display, and tap Position Adjustment > Rearview Mirrors > Start Adjusting to adjust the position of the right side mirror through the buttons on the right side of the steering wheel. See Side Mirrors Position Adjustment.

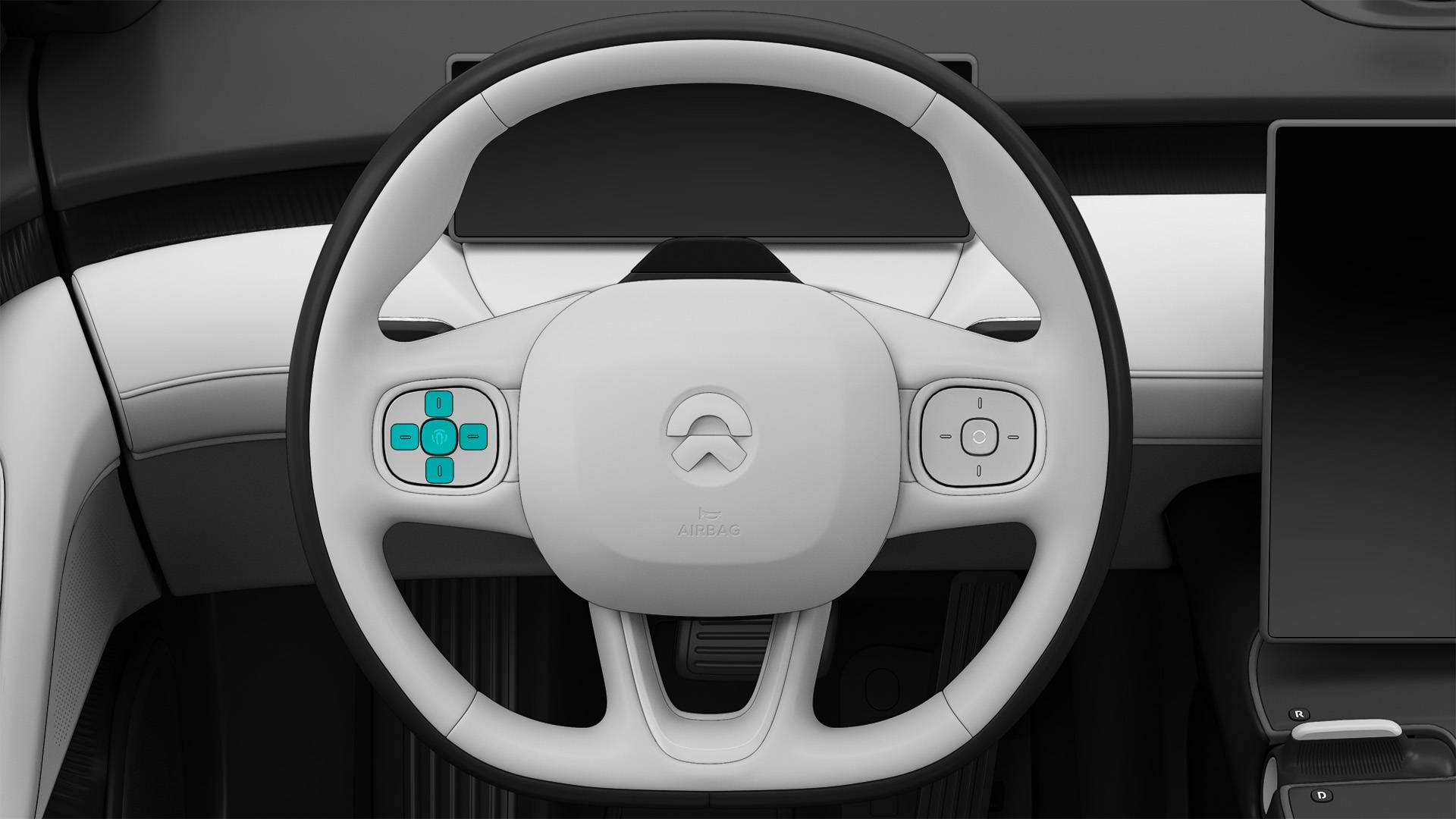

Volume Adjustment

In scenarios such as answering calls, talking with NOMI, and playing multimedia, press the Up or Down button to adjust the volume, and press+hold the Down button to mute the sound.

In other scenarios where there is no need for volume adjusting, holding the Up button gives no response, and press+hold the Down button to mute the sound.

In the mute state, press the Up button to unmute.

Triggering the Custom Feature

Press+hold the Middle button on the right side of the steering wheel to trigger the custom feature. The default triggered feature is NOMI, and you can change the custom feature on the Settings interface by tapping Position Adjustment > Steering Wheel > Steering Wheel Customized Keys.

Control within an Immediate Task

When the incoming call reminder is displayed, you can answer or reject the call through the Left and Right buttons, and the Middle button is for confirming the selection.

Switching the Normal Menu

Press+hold the Left or Right button to enter the "Switching Mode", in which you can press the Left or Right button to switch the order of the menus.

After pressing the Middle button, or after 3 seconds with no operation on the Left or Right button, the current menu will be selected automatically and the Switching Mode will be exited.

Controls within the Menu

When the instrument cluster shows the Media/Third-party Software, Estimated Range, Mileage, and Power Consumption menus, press the Left, Middle and Right buttons on the right side of the steering wheel to switch the media/third-party software type.

When the Media/Third-party Software menu is for Media: Left - previous track; Right - next track; Middle - play/pause;

When the Media/Third-party Software menu is for Karaoke: Left - redo; Right - next track; Middle - play/pause;

When the instrument cluster shows Team menu: Middle - sound record/send.

Adjusting the Left Side Mirror

Enter the Settings interface from the control bar at the bottom of the center display, and tap Position Adjustment > Rearview Mirrors > Start Adjusting to adjust the position of the left side mirror through the buttons on the left side of the steering wheel. See Side Mirrors Position Adjustment.

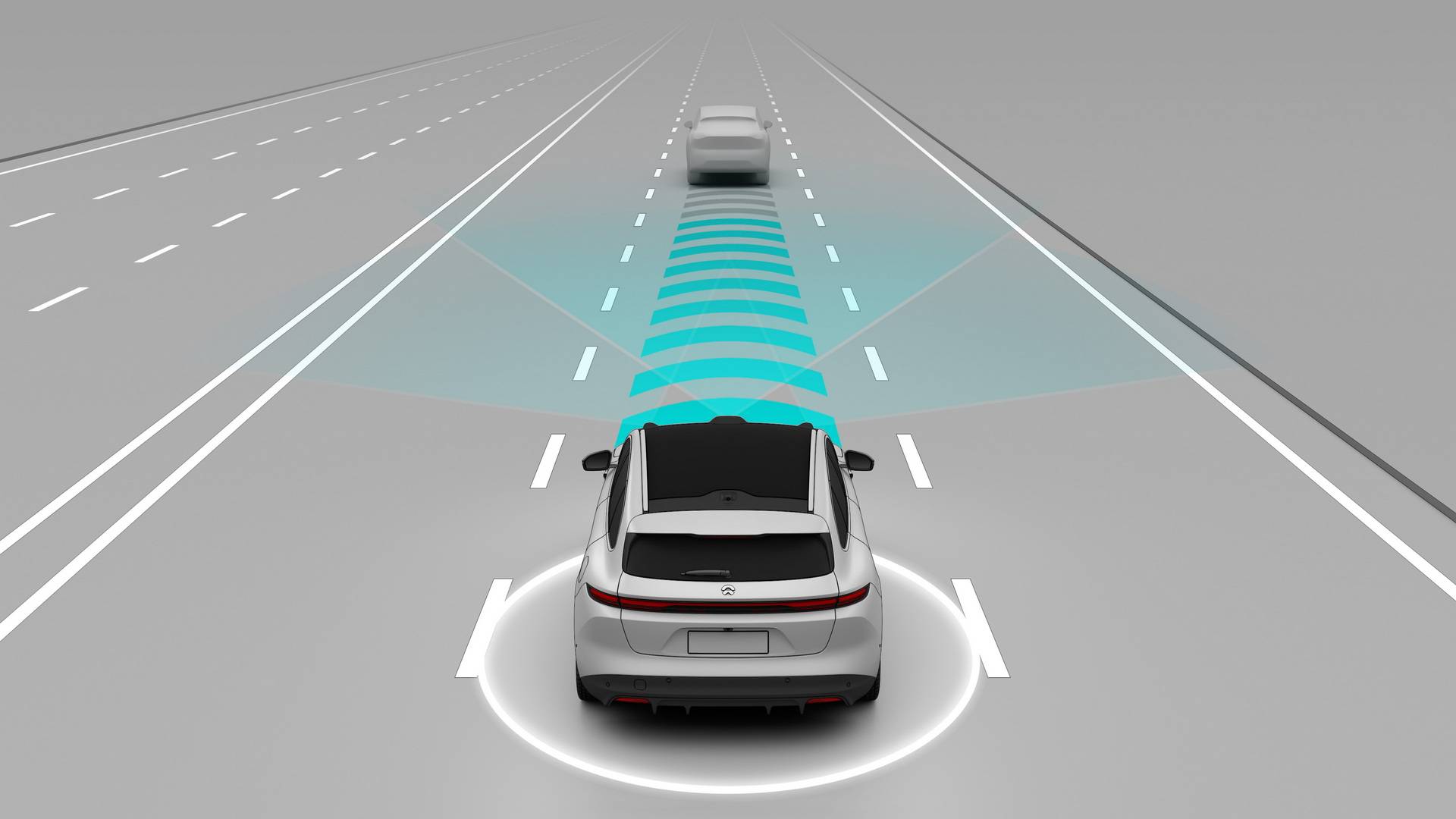

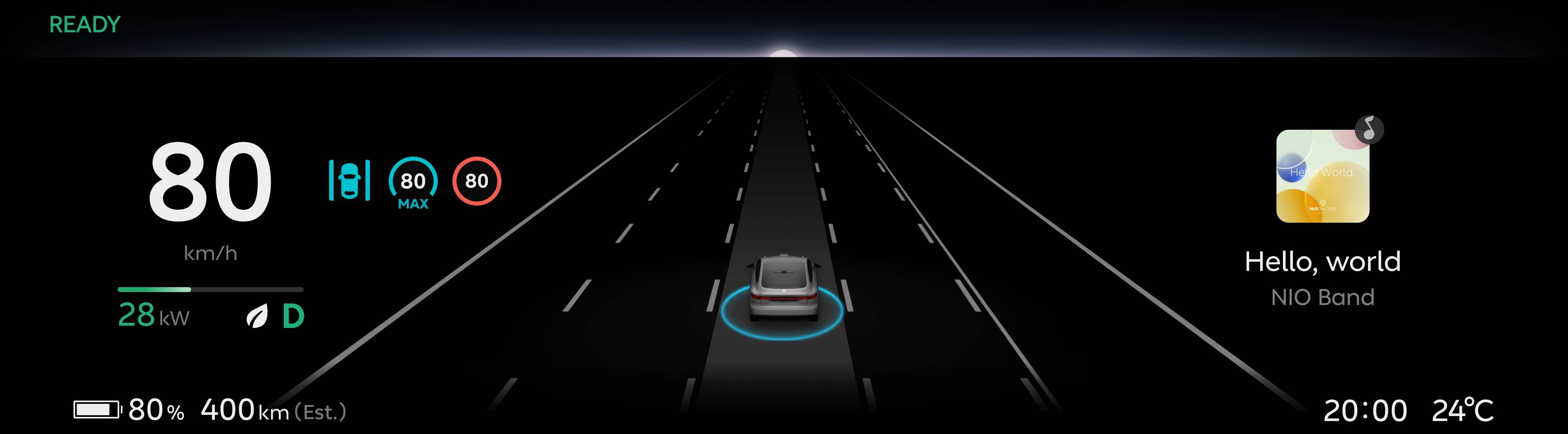

Adjusting the Driver assistance control

Middle button: activate or exit driver assistance.

Up button: increase the cruising speed.

Down button: decrease the cruising speed.

Right button: increase the following distance.

Left button: decrease the following distance.

Press the Up or Down button: increase/decrease the cruise speed by 5 km/h; press+hold the Up or Down button: increase/decrease the cruise speed by 1 km/h continuously.

Press the Left or Right button: increase/decrease the following distance by 1 level; where Level 1 is the closest, and Level 5 is the farthest.

Three USB ports are provided in your vehicle, including one Type A port and two Type C ports.

Automatic Heating of Side Mirrors and Windshield

Go to the Settings interface from the control bar at the bottom of the center display, tap on the Position Adjustment > Rearview Mirrors interface, and turn on the automatic heating feature of the side mirrors and rear windshield. When the front windshield wipers are turned on while driving on rainy days, the heating feature will be turned on automatically to help remove fog on the side mirrors and rear windshield.

Control Bar

You can control the temperature and airflow distribution through the control bar at the bottom of the center display.

1. Home

   Tap to return to the home interface.

2. Settings

   Tap to go to the list of settings.

3. Switching Between Recirculating Air and Outside Air

   The current air flow mode is displayed. You can tap to select the following three modes in sequence: recirculation , automatic recirculation or outside air , and outside air .

   With automatic recirculation or outside air mode, if air pollution is serious, outside air will be turned off automatically and switched to recirculation to realize automatic control of air quality in the vehicle.

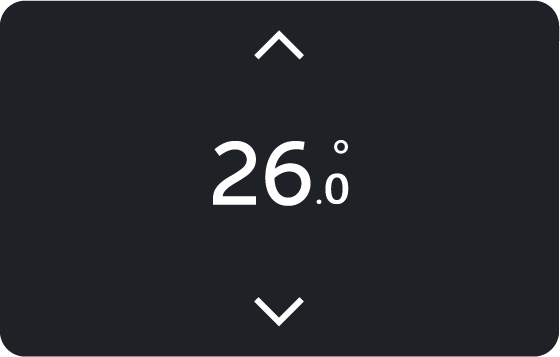

4. Driver Side Temperature Display

   The target temperature on the driver side is displayed. You may tap on it to enter the temperature control panel.

   Swiping left or right adjusts the target temperature. The adjustment range on the driver side is 15–31 ℃.

   You can also press the arrow to adjust the target temperature. Each time you press the arrow, the temperature can be adjusted by 0.5 ℃.

   Select "SYNC" to adjust the air conditioning temperature for the front and rear passengers together with the driver side. Manually adjusting the temperature on the front passenger side or in the rear row will exit SYNC mode.

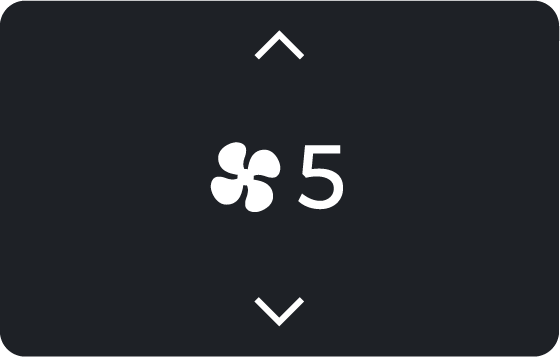

5. Air Conditioning Inlet and Air Volume Regulation

   The ON/OFF status of the air conditioning is displayed. Tap to expand or collapse the Climate Control Panel.

   Press+hold and slide to adjust the level of the front fan speed. There are eight levels, 0–8, where 0 turns off the air conditioning for the whole vehicle.h

6. Front Passenger Side Temperature Display

   The target temperature on the front passenger side is displayed. You may tap on it to enter the temperature control panel.

   Swiping left or right adjusts the target temperature. The adjustment range on the front passenger side is 15–31 ℃.

   You can also press the arrow to adjust the target temperature. Each time you press the arrow, the temperature can be adjusted by 0.5 ℃.

7. Front Windshield Defrosting/Defogging

   When the front windshield defrosting/defogging feature is turned on, the manual air conditioning (A/C) mode is turned on at the same time, the air distribution mode is defrosting mode, and the air circulation is switched to the automatic recirculation/outside air mode.

   If the outside of the front windshield is foggy, it is recommended to turn on the wipers and automatic climate control; if the inside of the front windshield is foggy, it is recommended to turn on defogging for the front windshield. After the fog is cleared, switch to automatic climate control and turn on auto defogging for the air conditioning.

   Go to the Air Conditioning interface in the control bar of the center display, tap , and turn on Auto Defogging. Front windshield defogging will be turned on automatically when the inside of the front windshield is about to become foggy or slightly foggy.

8. Application Center

   Applications in the center display of the vehicle.

9. Volume Adjustment

   The default volume is 50%. Tap and then slide left or right to adjust the volume.

   Press+hold to mute, and press+hold again to unmute, and return to the volume before the mute state.

Climate Control bar

To access the Climate Control Panel, tap the air conditioning button on the control bar at the bottom of the center display. You can set the air conditioning's air volume, temperature, airflow direction and other features through the climate control panel.

Icon	Name	Feature
	Air Conditioning Main Switch	It controls the ON/OFF of the air conditioning throughout the vehicle;
	Steering Wheel Heating	It controls the heating of the steering wheel;
	Cooling, Heating and Ventilation Switch	Turn on the A/C, and the whole vehicle's air conditioning cools or heats; Turn off the A/C, and the whole vehicle's air conditioning enters ventilation mode;
	Strong Cooling	When activated, the whole vehicle's air conditioning enters maximum cooling mode;
	Strong Heating	When activated, the whole vehicle's air conditioning enters maximum heating mode;
	Front Windshield Defrosting and Defogging	When activated, it removes fog from the interior of the front windshield;
	Rear Windshield Heating	When activated, the rear windshield begins to heat up, and the feature will be turned off automatically after 15 minutes;
	Air Conditioning Temperature Adjustment	It adjusts the air conditioning temperature within the range of 15~31℃;
	Air Conditioning Air Volume Adjustment	It adjusts the air conditioning air volume within the range of level 0~8;
	Window Blowing Mode	The air conditioning vents direct air to the front windshield;
	Face Blowing Mode	The air conditioning vents direct air to the upper body of the passenger;
	Foot Blowing Mode	The air conditioning vents direct air to the lower body of the passenger;
	Air Conditioning Comfort Setting	Tap to access the Settings interface for Ionizer, Auto Defogging, AC Deodorization and other features.
Auto	Automatic Mode	In this mode, the temperature, air volume, airflow direction of the front and rear rows' air conditioning, and the recirculation/outside air mode will be adjusted automatically according to the temperature preset.
SYNC	Sync Mode	In SYNC mode, the cabin temperature will be the same as that of the driver's.

Front Row Air Vents and Their Adjustment

The air vents in the front row of the vehicle are located at the front windshield, the instrument panel and the leg space under the instrument panel.

1. Defrosting air vent at front windshield

2. Face blowing air vent at instrument panel

3. Foot blowing air vent under instrument panel

To adjust the air vent at the front row instrument panel, do as follows:

Press and hold the blowing area on the center display and then slide up or down to control the vertical angle, and slide left and right to control the horizontal angle.

In the free mode, double-click the air vent position in the center display to close the corresponding air vent. However, at least one air vent must be left open.

Rear Air Conditioning Vents and Adjustment

The rear row air vents are located behind the center armrest and at the bottom of the driver and front passenger seats.

1. Rear row face blowing air vents

2. Rear row foot blowing air vents

To adjust the rear row face blowing air vents, do as follows:

The air conditioning on the left and right sides is managed by two knobs on the rear row face blowing air vents.

Turn the knob up and down, left and right to adjust the airflow direction; turn the knobs to the bottom on the left and right sides respectively to close the air vents.

Tips for Using Air Conditioning

• Make sure that the vent grille of the air conditioning is not blocked by foreign objects (leaves, snow, etc.).

• If the vehicle has been parked in the hot sun, opening the windows while running the air conditioning can create convection, which helps the vehicle to cool down faster.

PM2.5 Air Purification

View the current air quality in your vehicle at the upper right corner of the center display, and tap to switch to the corresponding air purification mode.

Ionizer

Go to the air conditioning comfort adjustment interface in the control bar at the bottom of the center display, and tap Ionizer to generate negative ions while purifying the air, thereby further improving the air comfort in the vehicle.

AC Deodorization

If the air conditioning cooling is turned on in hot weather, some condensate may remain in the climate control system when parking. Go to the air conditioning comfort adjustment interface in the control bar at the bottom of the center display and tap to enable AC Deodorization. When you leave and lock your vehicle, if the system detects the residual condensate in the climate control system, it will turn on the fan automatically and run it at the maximum air volume to keep the evaporator and air pipe dry, thereby reducing the risk of bacteria breeding in the humid environment.

You can select one of the two drying levels: Standard (the fan works for about 3 minutes continuously) and Strong (the fan works for about 20 minutes continuously).

This feature increases energy consumption in certain circumstances, so make sure that you plan your trip properly or turn the feature off if necessary.

Remaining Life of Air Filter

After replacing the filter element, go to the air conditioning comfort adjustment interface in the control bar at the bottom of the center display, tap , and select Air Conditioning Purifier Filter Element Life Timer to reset the filter element service life timer.

You can go to the Media interface from the main interface of the center display to select the program for listening to music:

• Select "Tidal" to discover and listen to your favorite music. You can also use it to build a library of your preferred songs or albums.

• Insert a USB flash disk into the USB port in your vehicle to play the music in the USB flash disk.

• After a mobile device is connected to your vehicle's Bluetooth, you can select "Bluetooth Music" to play the music in the mobile device.

You can go to the Settings interface from the control bar at the bottom of the center display, and tap Sound to set the volume for media music. Select "Sound Mode" to set the sound field effect in the passenger compartment. If necessary (for example, when a child is sleeping in the rear row), the rear mute feature can be turned on.

Dolby Atmos provides a finely tuned, balanced audio experience with an optimal music listening configuration for the vehicle's interior environment. As a result, the vehicle becomes an ideal immersive space for enjoying music, which sounds more layered and richer than ever before. This product is manufactured under the license of Dolby Laboratories. Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. This is an unpublished product. © 2012-2021 Dolby Laboratories, Inc. All rights reserved.

You can select your navigation route on the navigation interface from the main page of the center display. If you have previously sent a navigation route through your mobile app, the selected navigation route will be displayed automatically when the center display is turned on.

Tap to set navigation options, such as route preference, navigation voice broadcast, and map display mode.

Photographing

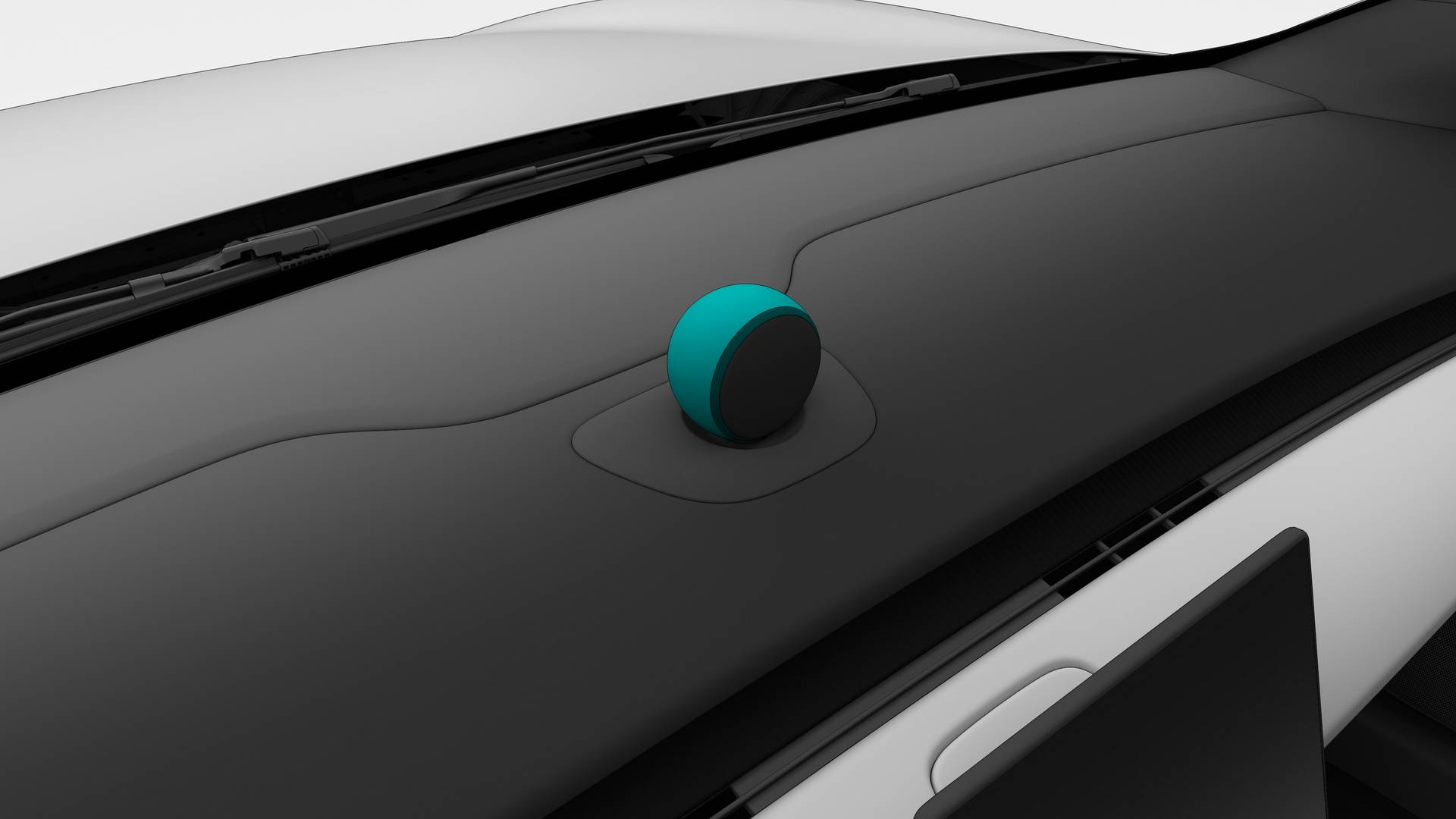

NOMI can capture your selfies inside the car upon request. The center display's Photos application is where videos or photos are stored. To transfer them, use a USB cable.

Photos

You can access Photos in the application center on the center display and see all the photos in it. You can select the ones to be exported or deleted. There are various categories of photos: All/Digital Video Recorder (DVR)/Smart Guardian/Quick Video Recording/Selfie/Screenshot, and more.

Nap Mode

You and your family can fall asleep to the sounds of nature in the vehicle and wake up to a soft alarm to embrace a beautiful world.

You or your authorized users can enter the application launcher to open the Tide > Nap page where sound scenarios and alarm time for the nap can be set and memorized for the specific account.

• Nap by Time: You can set a nap countdown to wake you up at the set time. You can also choose to continue or end the nap upon the alarm.

• Nap by Charge: If the vehicle is in the DC charging process, you can set a battery level within the charging limit to have a nap until the set level is reached.

• More settings are provided, including volumes and timed playback of sleep aid sounds, alarm clock sounds and volumes, and seat position restoration switch upon the end of nap.

• Set sleep aid sound scenarios.

After the vehicle enters the Nap Mode, the in-vehicle lighting will be turned off, with windows and doors closed and locked, the climate control will be automatically set to the temperature comfortable for a nap, and the air purifier will be automatically turned on. If you sit in a front seat, the seat will automatically move to the relax position (if set previously) or the default position. NOMI will enter the Do Not Disturb Mode to create a relaxing atmosphere for you. After the nap ends, the vehicle will restore the settings before the nap.

Meditation Mode

The Meditation Mode provides an immersive experience to give your brain break, so that you can feel your inner self and your surroundings and reduce your physical and mental exhaustion.

You or your authorized users can enter the application launcher to open the Tide > Meditation page where sound scenarios and sound volumes for the meditation can be set and memorized for the specific account.

After the vehicle enters the Meditation Mode, the in-vehicle lighting will be turned off, with windows and doors closed and locked, the climate control will be automatically set to the temperature comfortable for meditation, and the air purifier will be automatically turned on. NOMI will enter the Do Not Disturb Mode to create an immersive and quiet atmosphere for you. After the meditation ends, the vehicle will restore the settings before the meditation.

Breathing Mode

The Breathing Mode helps you learn how to breathe properly, calm yourself down, and relieve stress.

You or your authorized users can enter the application launcher to open the Tide > Breathing page where breathing scenarios and background sound scenarios and volumes can be set and memorized for the specific account.

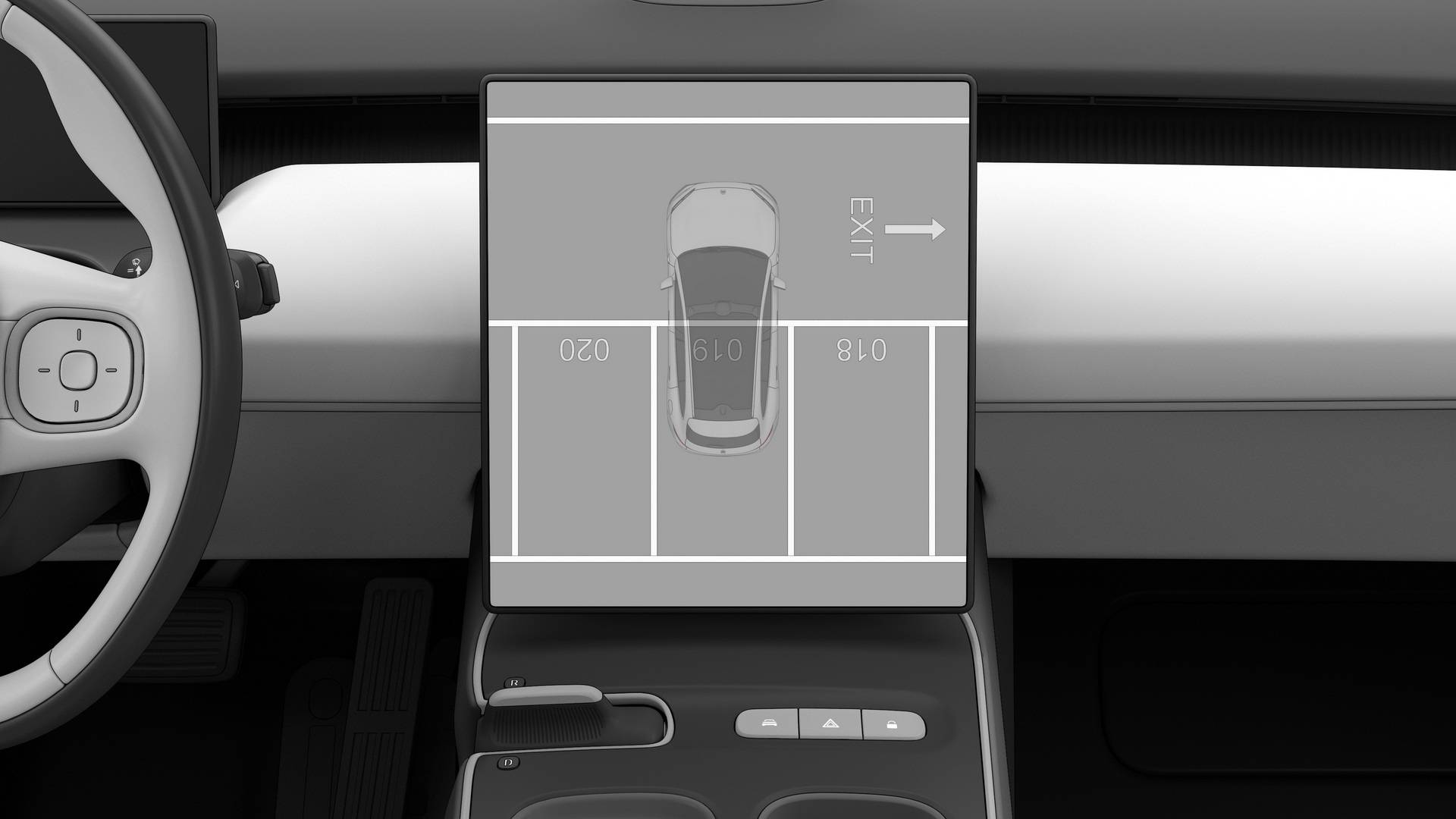

Front Center Display

After you or authorized users log in, the vehicle's center display can help you easily access rich personal resources such as music, navigation, and radio stations. You can also customize your favorite content and store it in your personal account. The personalized content saved in your account can be displayed the next time you login in to your account. You can switch different accounts freely in your vehicle, and the customized content for different accounts will be presented to you.

You can select different features (media, navigation, etc.) on the main interface of the center display. The features are as follows:

1. Prompt Bar

   Displays prompt messages, warning messages, warning icons, etc.

2. Tile Feature Menu

   Press+hold to switch to different feature tiles, such as music, weather, etc.

3. Main Interface

   To return to the main interface, tap this button or five-finger pinch on any interface of the center display.

4. Vehicle Settings

   Configure the settings for common features.

   You can also swipe right from the left edge of the center display to enter the Quick Access interface. On this interface, you can access frequently used features quickly and customize quick access features.

5. Air Conditioning and Comfort Feature Interface

   Quickly set the air conditioning, seats, and comfort features here.

6. Application Center

   Select different applications, such as weather and photos.

7. Volume Settings

   Quickly set the system and media volume.

Starting the Vehicle

The vehicle can get ready to drive when the following conditions are met:

1. The driver is seated.

2. Close the driver door or press the brake pedal.

The driver can start the vehicle in many ways such as with the Smart Key, NFC card, and mobile phone NFC.

If the mobile phone NFC or NFC card is used, place the mobile phone with the NFC key or NFC card on the wireless charging board, keep the mobile phone unlocked and fit it into the wireless charging board, and then try to engage the gear and start the vehicle.

Gear Shifting

After pressing the brake pedal and toggling the gear shifter into the D or R gear, the digital instrument cluster displays , indicating that power output is ready. After shifting the gear, the digital instrument cluster will display the real-time gear position of the vehicle. If the shifting fails, the digital instrument cluster will prompt you to confirm the current gear.

Go to Settings from the bottom of the center display, and tap Sound > Gear Shift Sound to enable or disable the ringer and alerts.

For example, the vehicle can be switched to Neutral (N) gear in specific conditions such as while pushing the vehicle and automatic washing.

Go to Settings from the bottom of the center display）, and tap Driving and Parking > N (NEUTRAL) to enable or disable Neutral (N) gear.

Electric Parking Brake

When switching to the Park gear, the parking brake will be automatically activated, and the digital instrument cluster displays , indicating that the Electric Parking Brake has been enabled.

When locked from the outside of the vehicle, the vehicle's power will be automatically turned off, and the center display and digital instrument cluster will be shut down at the same time.

You can switch the vehicle to the Park gear in the following ways:

• Press the P gear button on the side of the gear selector in the center console.

• Go to Settings from the bottom of the center display, and tap Driving and Parking > EPB to park.

When the digital instrument cluster displays , it indicates that the brake system is faulty. Please drive carefully and contact the NIO Service Center for maintenance.

Autohold

Autohold is to keep the vehicle stationary for temporary parking when the brake pedal is released.

During the driving process, when you press the brake pedal until the vehicle comes to a stop, pressing the brake pedal further will activate the Autohold feature.

The icon is displayed on the digital instrument cluster when the Autohold feature is activated. When it is activated, you can step on the accelerator pedal or the brake pedal to deactivate Autohold.

You can also floor the brake pedal to activate Autohold in an emergency.

You can also activate Autohold when parking on an uphill road, where the braking system will provide sufficient braking force to keep the vehicle stationary in accordance with the gradient of the slope.

Emergency Braking

In the event of a brake pedal failure, you can activate Emergency Braking by pressing the P gear button, which will produce full braking deceleration under normal circumstances to stop the vehicle.

• Press+hold the P gear button to activate Emergency Braking.

• Release the P gear button, or step on the accelerator pedal to deactivate Emergency Braking. To re-activate Emergency Braking, you will need to press the button again.

Hill Start Assist

Hill Start Assist prevents your vehicle from rolling backwards when starting uphill.

When your foot switches from the brake pedal to the accelerator pedal, the pressure on the brake pedal will be maintained in the brake system for a maximum of 2 seconds. The temporary braking effect will disappear after 2 seconds or when you accelerate.

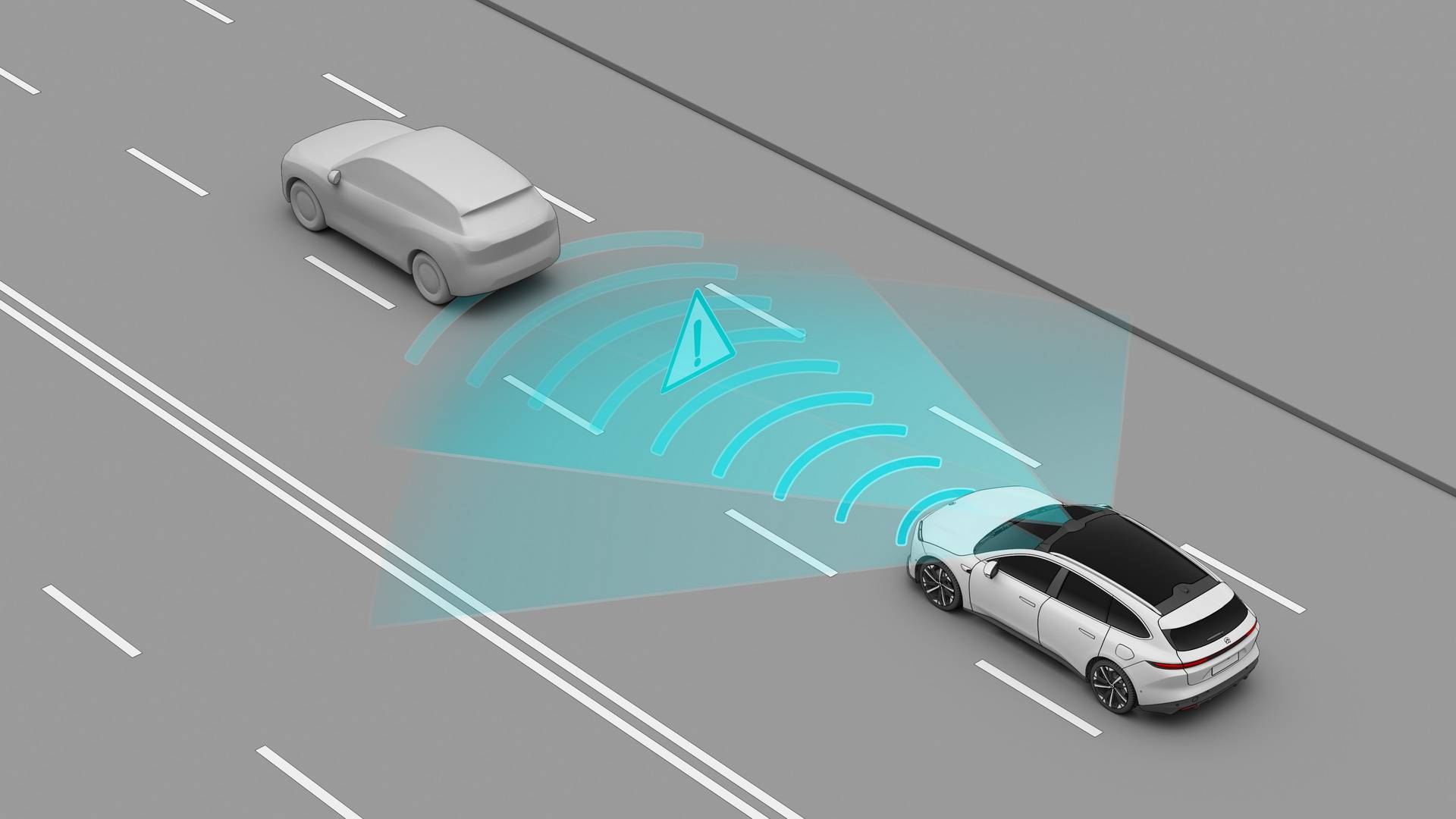

Lead Vehicle Start Alert

After the vehicle stops by following the lead vehicle, if the lead vehicle drives away, Lead Vehicle Start Alert will send you a reminder.

Go to Settings from the bottom of the center display, and tap Driver Assistance > Lead Vehicle Start Alert to turn this feature on or off.

With this feature enabled in the manual driving mode, if you do not follow after the lead vehicle starts, the vehicle will remind you.

Snow Mode

Snow mode is appropriate for snow-covered roads, low-traction roads with a mixture of wet asphalt, snow, and ice, as well as slippery grass.

When the mode is activated, the vehicle retains all-wheel drive, with power distributed evenly to the front and rear wheels, and the accelerator pedal is relatively gentle, so as to guarantee a smooth start and to avoid slipping on slippery surfaces such as ice, which secures the driving through snowy terrain.

Go to the Settings interface from the control bar at the bottom of the center display, and tap Driving and Parking > Snow Mode to turn this feature on or off.

Wet Mode

Wet Mode is appropriate for slick hard asphalt or flooded roads, as well as congested, slick sand and mud conditions.

Wet Mode increases stability and smoothness of the vehicle when starting, braking, and cornering. The vehicle retains all-wheel drive, with power distributed evenly to the front and rear wheels and with extremely low regenerative braking.

Go to the Settings interface from the control bar at the bottom of the center display, and tap Driving and Parking > Wet Mode to turn this feature on or off.

Sand Mode

Sand Mode is appropriate for congested hard roadbed sandy soil and Gobi road surfaces.

Sand Mode smooths out the vehicle's starting and braking, allowing for some side-to-side slippage while preventing bogging and retaining forward ability. To improve driving enjoyment in sandy conditions, the vehicle retains all-wheel drive with increased power delivery to the rear axle, more aggressive power delivery, and vehicle stability control with extremely low regenerative braking.

Go to the Settings interface from the control bar at the bottom of the center display, and tap Driving and Parking > Sand Mode to turn this feature on or off.

Trailer Mode

The vehicle automatically detects trailer connection and adjusts settings such as suspension height, rearview mirror angle, driver assistance, and safety features to adapt to the towing scenario.

Before towing, please shift to the P gear, go to the Settings interface from the control bar at the bottom of the center display, and tap Driving and Parking > Tow Hitch. This will extend the tow hitch. When a trailer is towed, Trailer Mode must always be active. When you connect the trailer's electrical harness, the vehicle will enable Trailer Mode after you confirm. Trailer Mode is deactivated when the trailer's electrical harness is disconnected. To manually enable or exit Trailer Mode, go to the Settings interface from the control bar at the bottom of the center display and tap Driving and Parking > Trailer Mode. One of the following indicators is displayed on the instrument cluster at this time:

Icon	Description
	The vehicle has detected the connection of the trailer lights, but Trailer Mode is not activated. The vehicle may already have an accessory connected.
	The vehicle has detected an electrical connection fault with the trailer lights. Some or all of the trailer lights may be faulty. To ensure your safety, pull over as soon as possible and check the wiring or connection of the trailer lights for faults. If the problem has been resolved but the red icon is still on, please try turning off Trailer Mode and then turning it on again.

ECO+ Mode

The power consumption of the vehicle can be reduced to attain greater range by disabling features that are not required for driving to meet the driving needs at the minimum.

In ECO+ Mode, the vehicle's top speed is constrained, driver assistance and other features are momentarily inaccessible, and comfort features like air conditioning and ambient lighting are also restricted.

Go to the Settings interface from the control bar at the bottom of the center display, and tap Driving and Parking > ECO+ Mode to turn this feature on or off.

You can switch to any regular drive mode or exit the ECO+ Mode by tapping the button again.

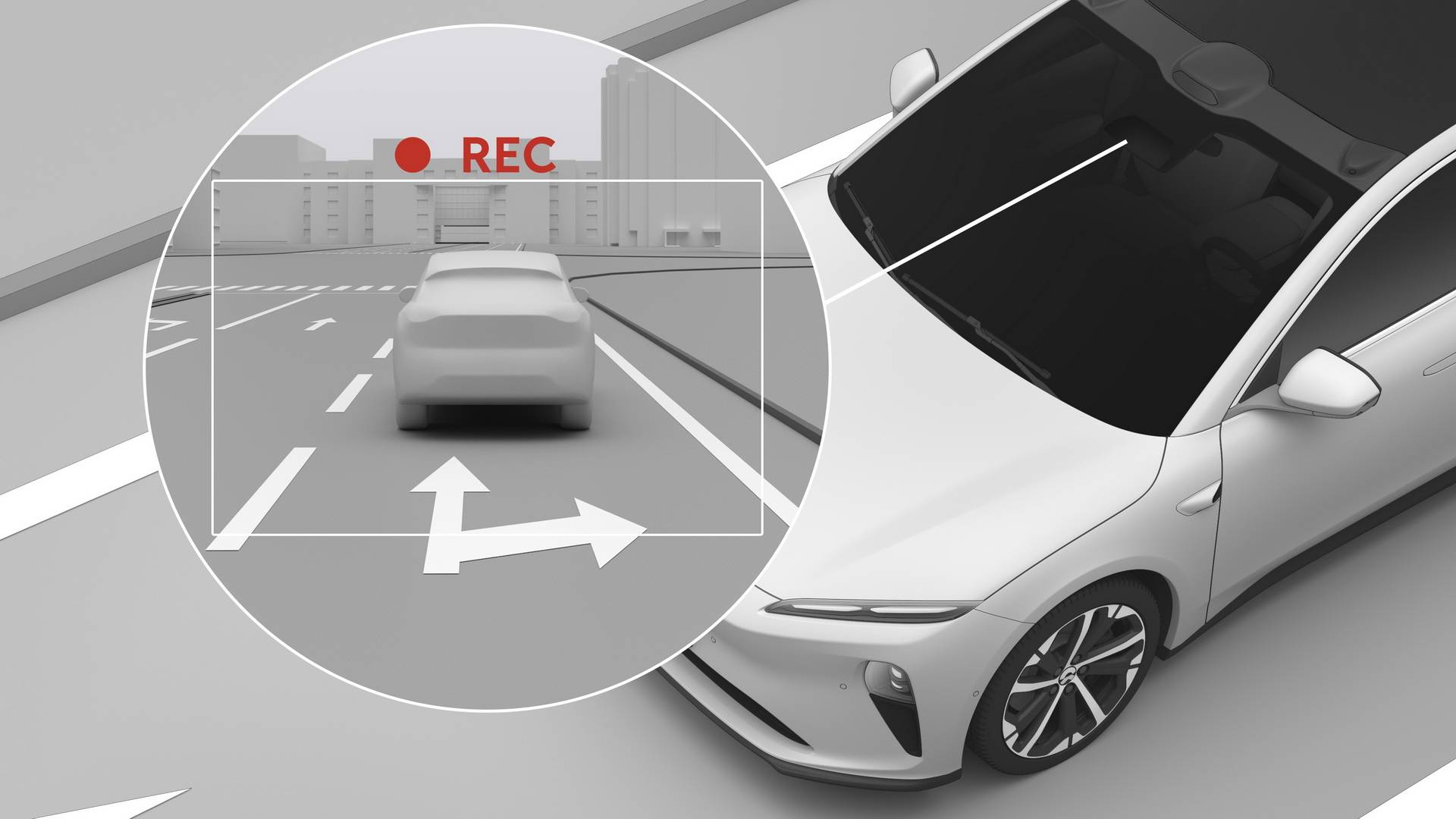

Rolling Recording

The recording angle of Digital Video Recorder includes the main view angle and the front, rear, left, right and surround view angles, supporting simultaneous recording and real-time previews.

• Main view: only records the main view angle of the camera, which supports a maximum resolution of 3,840x1,696 and has a picture fluency of 30 frames per second.

• Five-view: records all view angles of the camera, with four surround-view cameras that support a maximum resolution of 1,280×1,000 and have a picture fluency of 30 frames per second.

The longest continuous rolling recording time for the main view angle of Digital Video Recorder is about 10 hours, and 5.7 hours for the five-view angle. When the corresponding time is exceeded, the original video file will be overwritten.

The contents of the Rolling Recording will be stored in the Photos > DVR > Rolling Recording folder. If you want to save a specific video file, insert a storage device such as a USB flash drive, select the video file, and transfer it to save it in the storage device.

Go to Settings from the bottom of the center display, and tap Safety > DVR to enable or disable this feature.

• When the feature is enabled, will be displayed at the top of the center display.

• When the feature is disabled, will be displayed at the top of the center display.

When the Digital Video Recorder feature is enabled, the camera will be turned on and continue to record rolling videos until the video recording is terminated.

The Digital Video Recorder supports watermarking features, which are disabled by default and need to be enabled manually.

In the Settings for the recording interface of the Digital Video Recorder , tap Driving Data Embedding to enable or disable the feature.

Emergency Recording

The Emergency Recording feature can record video images in the vehicle's memory. If the Autonomous Emergency Brake is triggered or the airbag is deployed, the emergency video will be recorded and saved.

The emergency videos include clips recorded 30 seconds before the emergency and 60 seconds after the emergency. The contents of the emergency video recording will be stored in the Photos > DVR > Emergencies folder. If you want to save a specific video file, insert a storage device such as a USB flash drive, select the file, and transfer it to save it in the storage device.

Quick Video Recording

You can use the Quick Video Recording feature to promptly record and save the ongoing events.

Go to the Quick Access interface by swiping right on the home interface of the center display, tap Quick Video Record to start recording, while is displayed at the top of the center display.

The Quick Video Recording saves clips recorded 30 seconds before and 60 seconds after it is triggered. The contents of the emergency video recording will be stored in the Photos > DVR > Emergencies folder. If you want to save a specific video file, insert a storage device such as a USB flash drive, select the file, and transfer it to save it in the storage device.

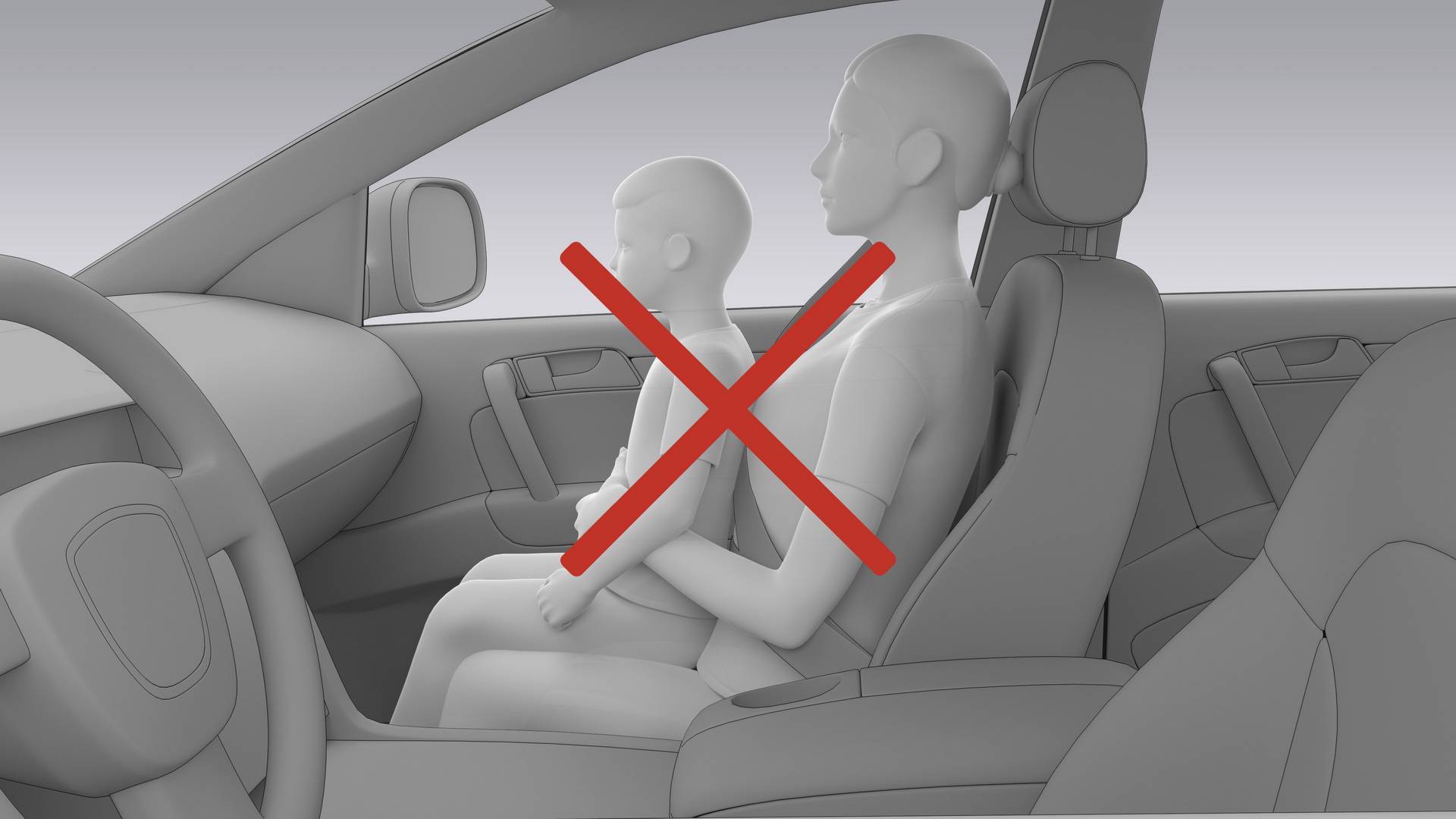

Seat Belt Instructions

Seat belts are the primary passenger safety protection system which can protect passengers from serious injury in the event of an accident especially when used with airbags.

There are pretensioning devices for both the front and both outer rear seats of the vehicle. This kind of device provides a certain pretension force for the seat belt in the event of a serious collision. They retract part of the seat belt quickly to protect passengers reliably. At the same time, they prevent excessive restraint force of the seat belts that could cause injury to passengers.

Seat Belt Unfastened Warning Light

All seats in your vehicle are equipped with seat belts.

When you, as a driver, are seated in the driver's seat (and the driver's door is closed or the brake pedal is depressed) or your vehicle is driving, if the front passenger does not fasten his/her seat belt, the Seat Belt Unfastened Warning Light on the digital instrument cluster will illuminate to remind you and the front passenger to fasten his/her seat belt immediately.

When you, as a driver, are seated in the driver's seat (and the driver's door is closed or the brake pedal is depressed), if a rear row passenger does not fasten his/her seat belt, the corresponding Seat Belt Unfastened Warning Light on the digital instrument cluster will illuminate to remind the rear row passenger to fasten his/her seat belt immediately. The warning light will go out after the seat belt is fastened.

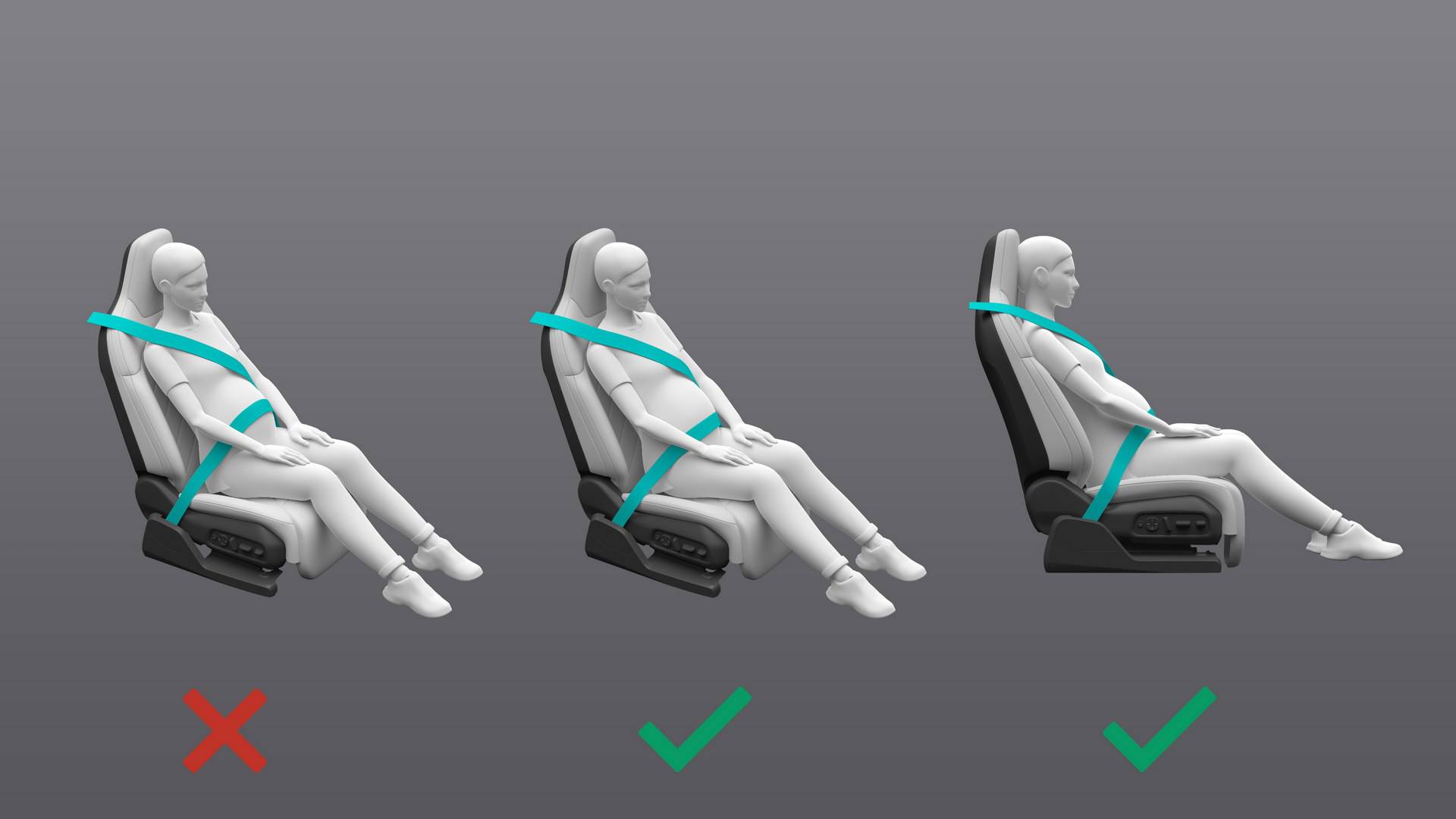

Use of Seat Belts

The correct use of seat belt is as follows:

1. Pull the seat belt tongue across the front of your body. The upper part of the seat belt shall be across your shoulder, and the lower part of the seat belt shall be across your hip. Do not put the seat belt across your neck or abdomen. Insert the tongue into the buckle for the same seat until you hear a click. Pull the seat belt to confirm that the seat belt is locked.



2. Press and hold the seat belt height adjustment button and move the seat belt up and down to adjust the seat belt height. After the seat belt reaches a comfortable height, release the adjustment button. After the height is adjusted, pull the seat belt shoulder part to confirm that the seat belt is locked.

To release the seat belt, press the red button at the buckle, and the tongue will pop out. Now the seat belt can be retracted by hand. The tongue can be rolled back automatically into the upper fixing device of the seat belt.

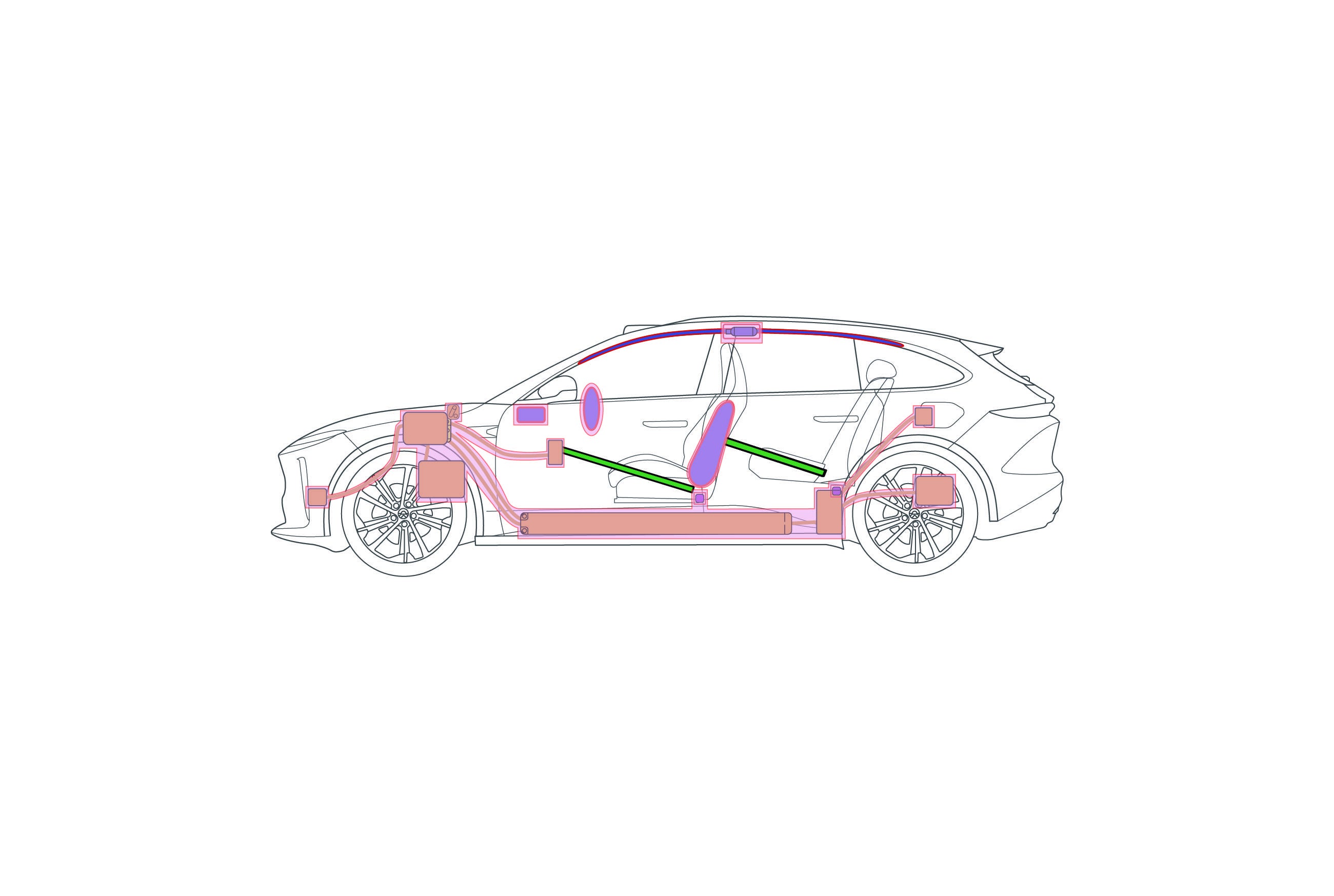

Airbag Instructions

Airbags are a supplementary restraint system that works with the seat belts. Airbags quickly deploy in serious accidents to protect the head and chest of passengers and reduce the severity of injury. However, they do not prevent limb injuries or scrapes and bruises. Therefore, the airbags should be used together with the seat belt to provide maximum protection.

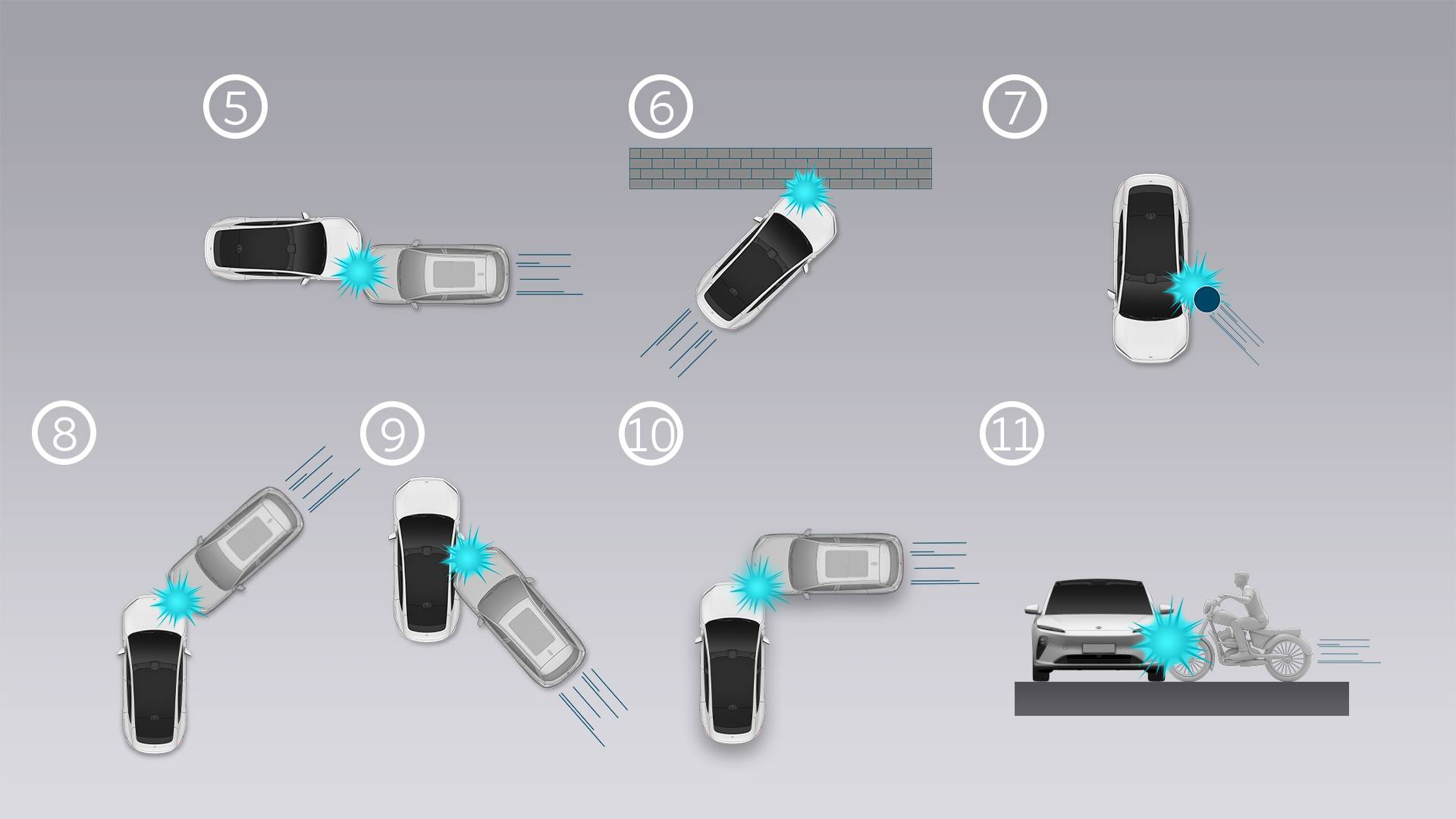

Your vehicle is equipped with collision sensors. In case of a frontal or side collision that meets the conditions (depending on the type, angle and object of collision) for the airbag system to deploy, the airbags will deploy from their position. The gas generator inside the airbag will ignite and release gas at high pressure to blow open the cover of the airbag. Gas will fill the airbag to form a buffer protection layer that protects passengers, thereby reducing the risk of injury or death.

The vehicle airbag system includes frontal airbags and side airbags. The word "AIRBAG" is marked on the places where the airbag is placed to remind you that there is an airbag herein.

• The front airbags include the front row head airbags, which are located in the trim cover of the steering wheel and at the instrument panel on the front passenger side respectively;

• The side airbags include the front side airbags (located on both sides of the driver's seat and the outside of the front passenger seat) and the curtain airbags (located above the doors on both sides, in the ceiling area from the A-pillar to the C-pillar).

1. Driver front airbag

2. Front passenger's front airbag

3. Front seat side airbag

4. Curtain airbag

5. Front row middle airbag

Airbag Deployment Conditions

The airbag may deploy in the following conditions:

1. High speed frontal impact with a wall or vehicle.

2. Impact with hard roadbed.

3. Falling into a deep ditch.

4. Side impact by a vehicle traveling at a high speed.

5. Leaving the road surface and then impacting it violently.

The airbags may not deploy in some collision situations, including but not limited to the following situations. Please use seat belts correctly to protect passengers.

1. Impact with a tree, column or other slender objects;

2. Rear collision from a vehicle behind;

3. Lateral roll;

4. Collision with or getting stuck under the rear of the truck in front;

5. A collision with a vehicle from the side at the nose of the vehicle;

6. A collision with a wall from the side at the nose of the vehicle;

7. Side collision with a post;

8. Side collision at the front of the vehicle at a certain angle;

9. Side collision on the body of the vehicle at a certain angle;

10. Partial side collision;

11. Partial side collision.

Airbag Warning Light

The airbag warning light indicating the airbag status is displayed on the digital instrument cluster. If this warning light is on after the digital instrument cluster is started, please stop using your vehicle and contact the NIO Service Center immediately.

Deactivating the Front Passenger Airbag

Because the airbag expands rapidly and has a large impact force when it deploys, it is safer for the front passenger to stay at least 25 cm away from the front airbag. However, if a child or a passenger with special medical needs must ride in the front row, go to the Settings interface in the control bar at the bottom of the center display, tap Security > Front Passenger Airbag, and select the option to turn off the front passenger airbag. At this time, the icon appears at the top of the center display to remind you that the front passenger airbag has been disabled to prevent the front passenger airbag from causing serious injury to the special front passenger.

Safety Measures after Airbag Deployment

Manually Activate and Deactivate Door/Window Child Locks

Tap Rear Door/Window Child Locks. ON represents that this feature is activated, and OFF represents that this feature is deactivated.

If the child lock of the corresponding door/window fails to be activated or deactivated, a pop-up reminder will appear on the center display. Repeat the above procedure until it is successful.

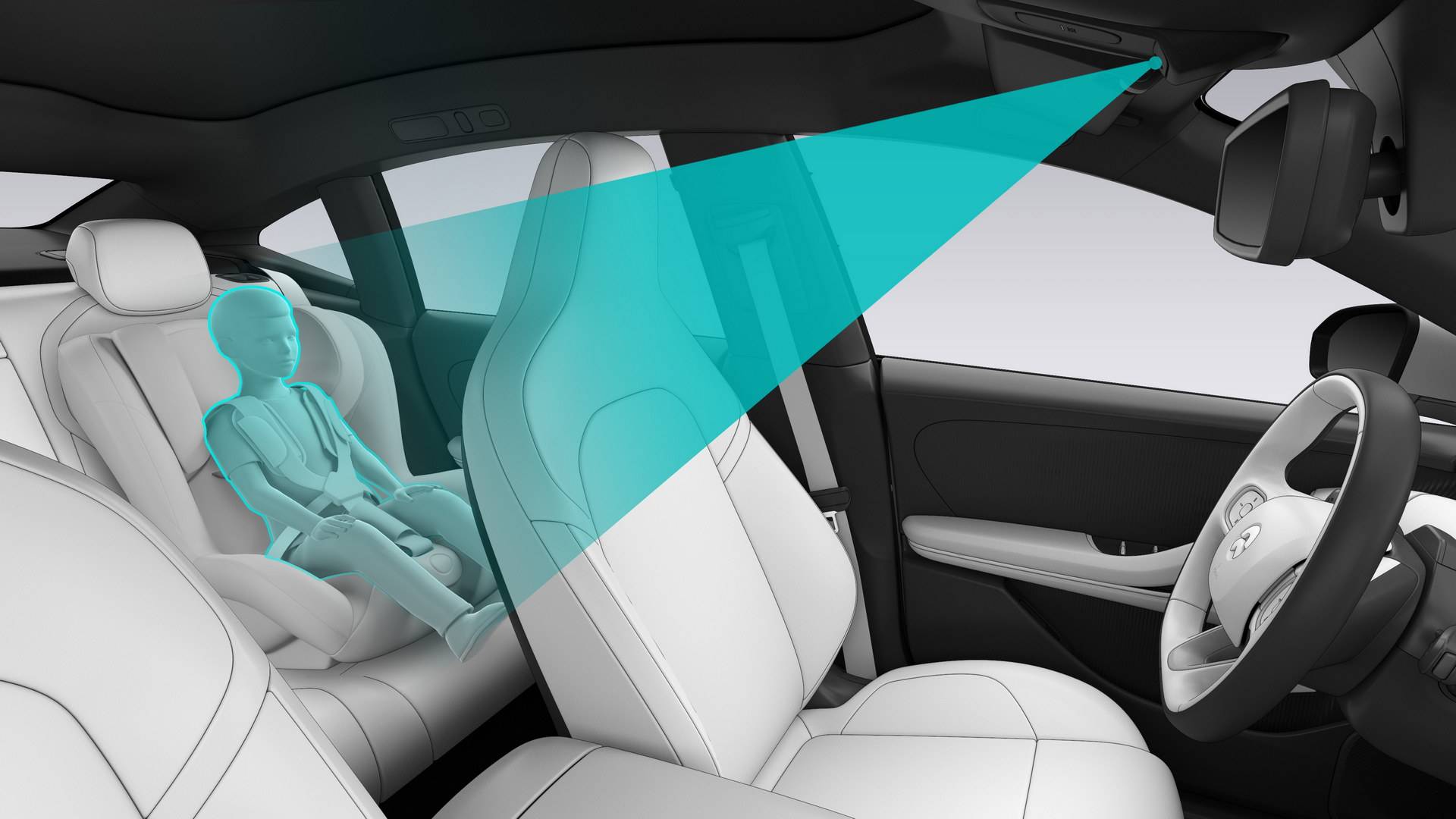

Important Instructions for Using Child Safety Seats

Child Safety Seat Grouping

Only a child safety seat that is approved and suitable for the child is allowed to be used. Children taller than 1.5 meters can use the vehicle seat belts as would an adult. If a child safety seat needs to be used, it must comply with relevant regulations or standards.

Selection of Child Safety Seat

There is a warning label for the front row airbag on the sun visor on the front passenger side.

To place a child safety seat in the front row seat, you need to disable the front passenger airbag. Go to the Settings interface from the control bar at the bottom of the center display, tap Security > Front Passenger Airbag, and turn off the front passenger airbag. After doing so, the icon appears at the top of the center display to remind you that the front passenger airbag is disabled.

Children should use a child safety seat or seat belt in either outer rear seat according to the age, height and weight of the child:

• Reclining child safety seats should be used for infants weighing less than 13 kg. They should be installed rearwards in rear seats whenever possible.

• Child safety seats with safety platforms or five-point seat belts should be used for children with a weight of 9-18 kg. It is recommended to install them rearwards in rear seats.

• Forward-facing child safety seats should be used for children with a weight of 15-25 kg. They should be installed in rear seats in coordination with seat belts.

• Child booster cushions should be used for children with a weight of 22-36 kg and a height less than 1.5 meters. They should be installed in rear seats in coordination with seat belts.

Installation of Child Safety Seat

Before installing a child safety seat, please read the instructions for the child safety seat carefully to confirm that it can be installed in your vehicle. If the vehicle seat belt or ISOFIX connection can be used to fix the child safety seat according to the installation method of the child safety seat, it is recommended to use the ISOFIX connection preferentially.

• Securing with Vehicle Seat Belt

  Install the child safety seat in the rear seat, put the vehicle seat belt through the child safety seat and insert the tongue into the buckle. Make sure that the seat belt is straight, not twisted. Pull the seat belt to confirm that it cannot be pulled out.



• Securing with ISOFIX Connection

  Both outer rear seats in your vehicle are equipped with ISOFIX connections suitable for installing child safety seats. The ISOFIX connection is hidden under the cover between the seat back and the seat cushion. After opening the cover, insert it into the gap between the seat back and the cushion, and then use the ISOFIX connection to install the child safety seat.

  1. Lift the cover between the seat back and the seat cushion, and insert the lower part of the child safety seat into the hook in the ISOFIX connection until you hear a click.



  2. Pass the upper fixing belt of the child safety seat under the seat headrest and connect it with the hook in the safety device at the back of the rear seat.



  3. Pull the child safety seat hard to check whether it is firmly installed.

Precautions and Restrictions

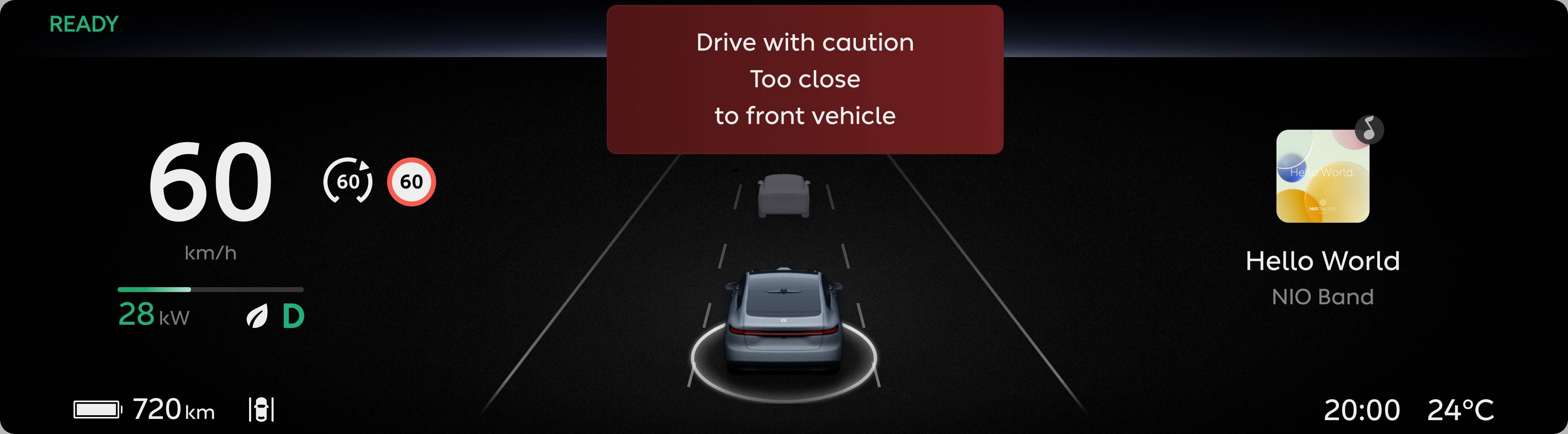

Forward Collision Warning may fail to function as intended due to the camera detection failures in some situations, including but not limited to:

• The positions of the cameras have been modified.

• The camera cannot focus or malfunctions.

• The cameras are obstructed or stained.

• The cameras are obstructed by water, dust, small scratches, grease, dirt, wipers, frost, or snow on the windshield.

• Severe weather conditions such as rain, snow, fog, haze.

• Visibility is poor in dim environments, such as at dawn, dusk, night, or in a tunnel, resulting in impaired recognition.

• Sudden changes in brightness, such as when entering or exiting a tunnel

• The view of the cameras is interfered by large shadows cast by buildings, landscape features, or large vehicles.

• The view of the camera is interfered by direct sunlight or other light sources.

• Exhaust gas, water spray, snow, or dust lifted by the vehicle ahead.

• The road is wet.

Forward Collision Warning system may not function as intended due to failures in the LiDAR sensor in certain situations. These situations may include, but are not limited to:

• Severe weather conditions such as rain, snow, fog, and haze.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead.

• Driving on wet or waterlogged roads.

• The LiDAR window is obstructed by water, dust, transparent vehicle covers, color-changing films, micro-scratches, oil sludge, dirt, ice, snow and other obstacles.

• Due to the limitation of LiDAR characteristics, in rare special cases, false alarms may occur for the traffic signs, high-speed anti-collision barrels in high-speed or elevated sections.

• Overheating of the LiDAR caused by prolonged sun exposure.

• The installation position of the LiDAR has been modified.

The Forward Collision Warning feature will only respond to eligible vehicles travelling in the same direction. Some targets will not trigger a response, including but not limited to:

• Animals

• Traffic lights

• Wall

• Barriers (cone barrels, etc.)

• Other non-vehicle objects.

Forward Collision Warning system may not function as intended if the target is not positioned in front of the vehicle in certain situations. These situations include, but are not limited to, the following:

• It will not respond to targets in the blind spots of the sensor, such as targets in blind spots at corners, sides, and back of the vehicle.

• The target may be incorrectly selected or missed when the vehicle is approaching or navigating a curve.

• The target may be lost or the distance to the target may be misjudged when the vehicle is on a slope.

• When a vehicle in an adjacent lane cuts in front of your car with only a portion of its body (especially when a large vehicle such as a bus or truck cuts in), it may not be recognized in time.

• When your vehicle suddenly maneuvers to the rear of a vehicle in front, or when other vehicles abruptly change direction or position in front of your vehicle, the target may not be identified in time.

Forward Collision Warning may fail to function as intended due to special or complicated road conditions, including but not limited to:

• Water, mud, potholes, snow, ice, speed bumps, or obstacles on the road.

• Large numbers of pedestrians, bicycles, electric bicycles, or animals.

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, and congested roads.

• Winding roads and sharp turns.

• Driving on hills.

• Bumpy roads.

• Tunnel entrances and exits.

The above warnings, precautions, and restrictions do not exhaust all the situations that may affect the proper operation of Forward Collision Warning. Forward Collision Warning may be affected by many factors. To avoid safety accidents, always pay attention to traffic, road, and vehicle conditions and drive with caution.

Precautions and Restrictions

The camera system may fail to recognize obstacles and thus Automous Emergency Braking may fail to operate as intended in some situations, including but not limited to:

• The positions of the cameras are changed.

• The cameras are obstructed or stained.

• Visibility is poor in dim environments, such as at dawn, dusk, night, or in a tunnel, resulting in impaired recognition.

• Sudden changes in brightness, such as when entering or exiting a tunnel

• The view of the cameras is interfered by large shadows cast by buildings, landscape features, or large vehicles.

• The view of the camera is interfered by direct sunlight or other light sources.

• In rain, snow, fog, haze, and other bad weather.

• When exhaust gas, splashes, snow, or dust is kicked up by vehicles in front of you.

• The cameras are obstructed by water, dust, small scratches, grease, dirt, wipers, frost, or snow on the windshield.

• The road is wet.

• The camera cannot focus or malfunctions.

The LiDAR sensor may fail to recognize obstacles and thus Autonomous Emergency Braking may fail to operate as intended in some situations, including but not limited to:

• The position of the LiDAR sensor is changed.

• In rain, snow, fog, haze, and other bad weather.

• Exhaust fumes, spray, snow or dust from the vehicle ahead can cause poor detection.

• The vehicle is driving on wet or waterlogged roads.

• The window of the LiDAR sensor is obstructed by water, dust, paint protection film, wrap film, small scratches, grease, dirt, frost, snow, etc.

• The LiDAR sensor overheated due to extended exposure of the vehicle to the sunlight.

• Due to the limitations of LiDAR characteristics, in rare special cases, false alarms may occur for traffic signs and high-speed anti-collision barrels in high-speed and elevated sections of road

Autonomous Emergency Braking will only respond to road users that satisfy the feature's operational conditions. Some targets will not trigger a response, including but not limited to:

• Animals.

• Traffic lights.

• Walls.

• Barriers (cones barrels, etc.).

• Other non-vehicle objects.

Vehicle targets may prevent the Autonomous Emergency Braking from operating as expected in the following situations, which include but are not limited to:

• The Autonomous Emergency Braking will not respond to targets in blind spots of the sensor, such as those in blind spots at the corners, sides and back of the vehicle.

• It may wrongly select or miss targets when approaching or crossing a turn in the road.

• When going uphill, it may miss a target or misjudge the distance to the target.

• When only part of the body of a vehicle in the adjacent lane cuts in front of your vehicle (especially when it's a larger vehicle cutting in, like a bus, truck, etc.), it may not be able to recognize it in time.

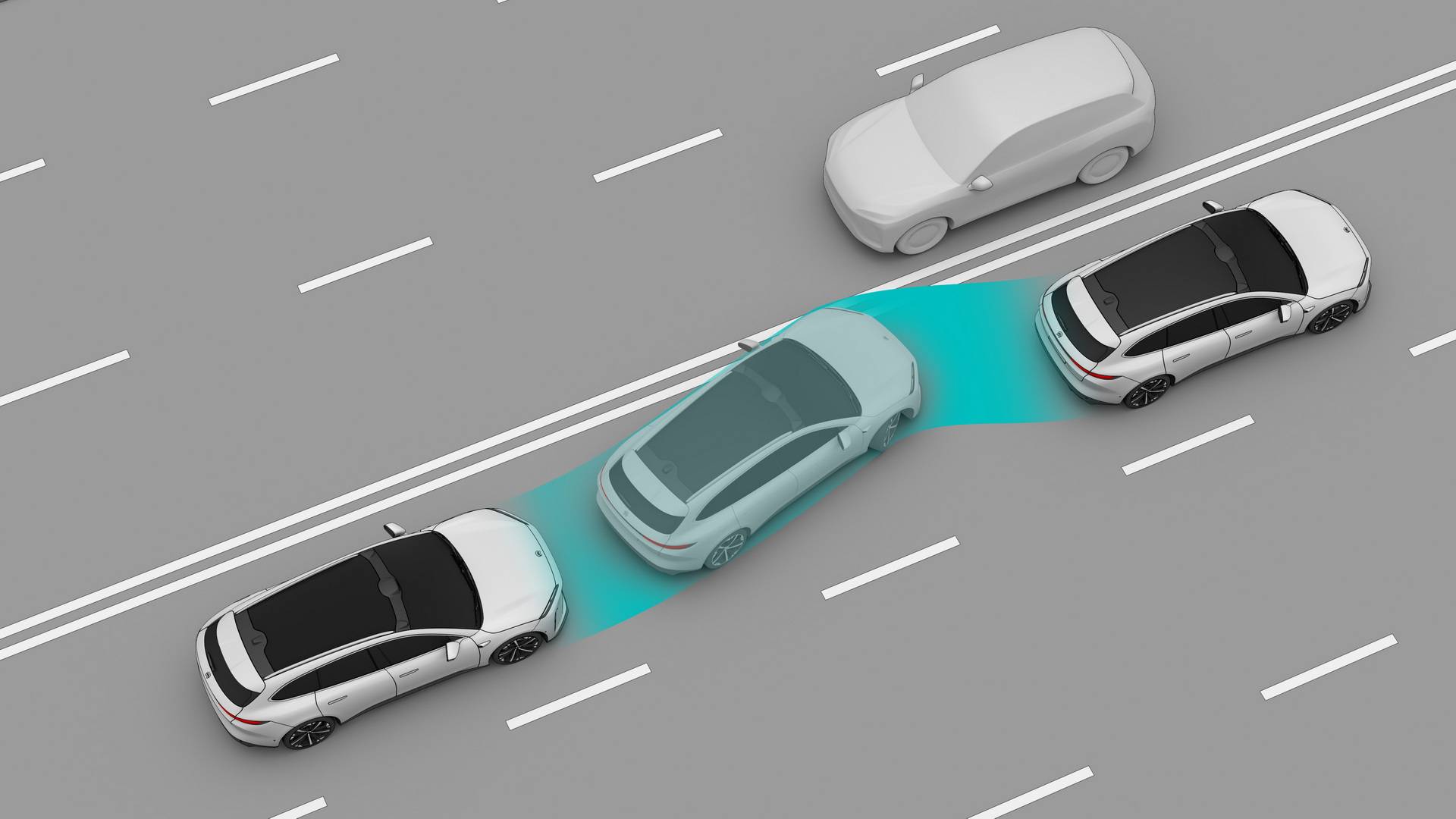

• When your vehicle abruptly cuts into the rear of the vehicle ahead, or another vehicle abruptly cuts into or out of the front of your vehicle, it may not be able to recognize it in time.

• When the lead vehicle is positioned at a large angle to this vehicle, it may not be able to be recognized in time.

• When only part of the body of the lead vehicle overlaps with this vehicle, that vehicle may not be recognized in time.

• Situations such as during the short amount of time after the power-on, when the vehicle is in the Park gear, and when the seat belt is unfastened, etc.

The performance of Autonomous Emergency Braking in reducing the impact of a collision may be affected due to special or complex road conditions, including but not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles.

• Large numbers of pedestrians, bicycles, electric bicycles, or animals.

• Complex and changing traffic flows, such as busy intersections, freeway ramps, and congested roads.

• Winding roads and sharp turns.

• Uphill and downhill roads.

• Bumpy roads.

• Tunnel entrances and exits.

The above warnings, precautions and restrictions do not exhaust all the situations that may affect the proper operation of Autonomous Emergency Braking. Autonomous Emergency Braking may be affected by many factors. To avoid safety accidents, be sure to always pay attention to traffic, road and vehicle conditions and drive with caution.

Enabling/Disabling the Lane Departure Warning

Enter the Settings interface at the bottom of the center display, and tap Driver Assistance > Lane Departure Warning and Assist to enable or disable this feature.

This feature will be turned on when the vehicle's system restarts. When enabled, you can select the warning type and sensitivity:

• Warning types:

  • Visual: visual warning

  • Audio: audible warning

  • Vibration: steering wheel vibration warning

• Sensitivity:

  • Low: gives an alert later than normal sensitivity under the same conditions.

  • Medium: normal sensitivity.

  • High: gives an alert earlier than normal sensitivity under the same conditions.

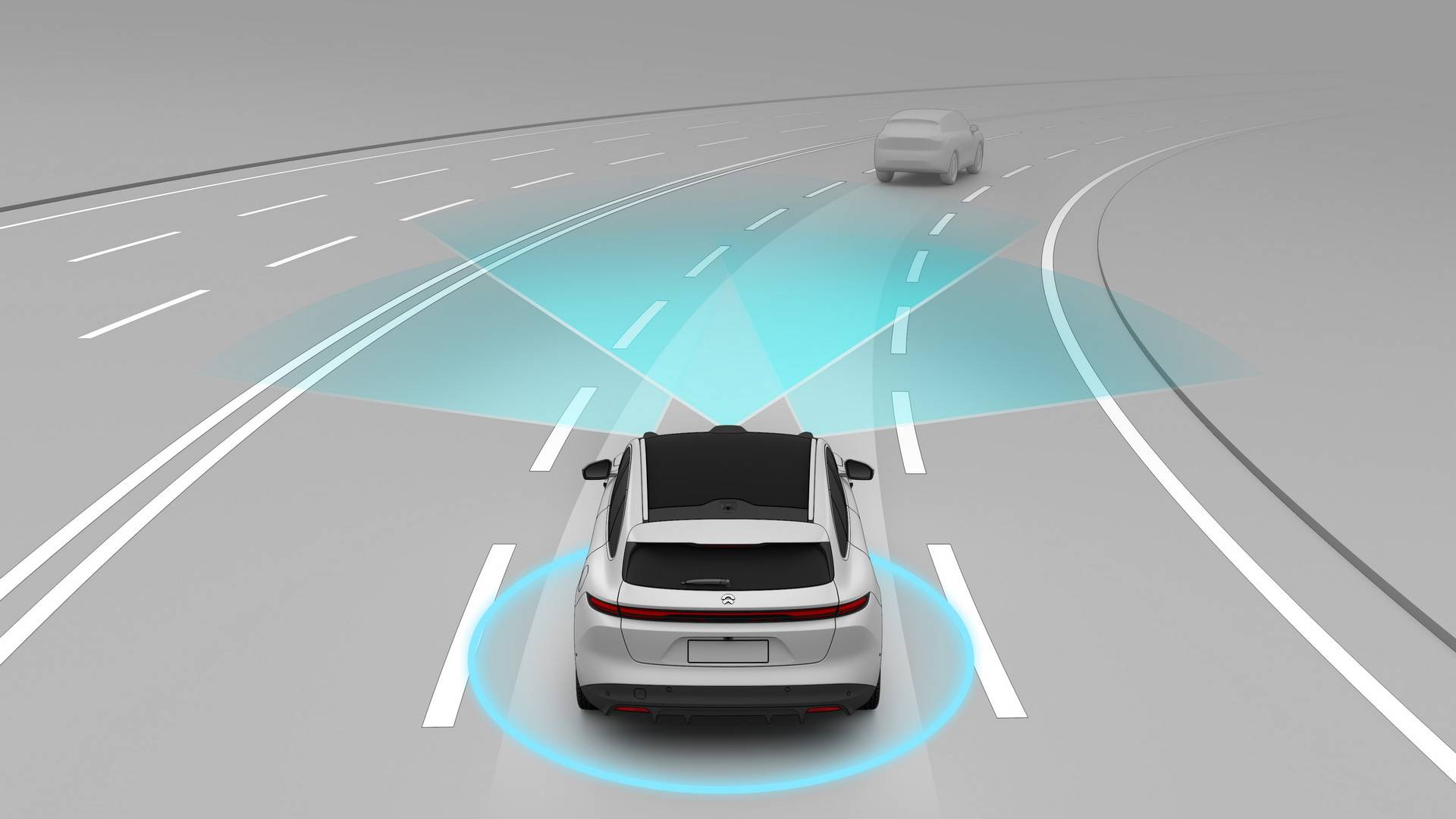

Operating Conditions of Lane Departure Warning:

• Lane Centering Control feature is not activated.

• Your vehicle speed is about 50-130 km/h.

• Your vehicle drives normally without suddenly accelerating, decelerating or steering.

• Your vehicle is in the center of its lane and does not drive on the lane marking.

• The lane markings on at least one side are clear.

• The high-definition cameras work normally and provide clear vision

• No components of the Lane Departure Warning system are faulty.

• Your vehicle meets all safety conditions, such as:

  • The driver is seated.

  • The driver has fastened the seat belt.

  • All doors are closed.

  • Your vehicle is in D gear.

  • Anti-lock brake system, traction control system and vehicle stability control system are not triggered.

  • The traction control system and vehicle stability control system are not manually disabled.

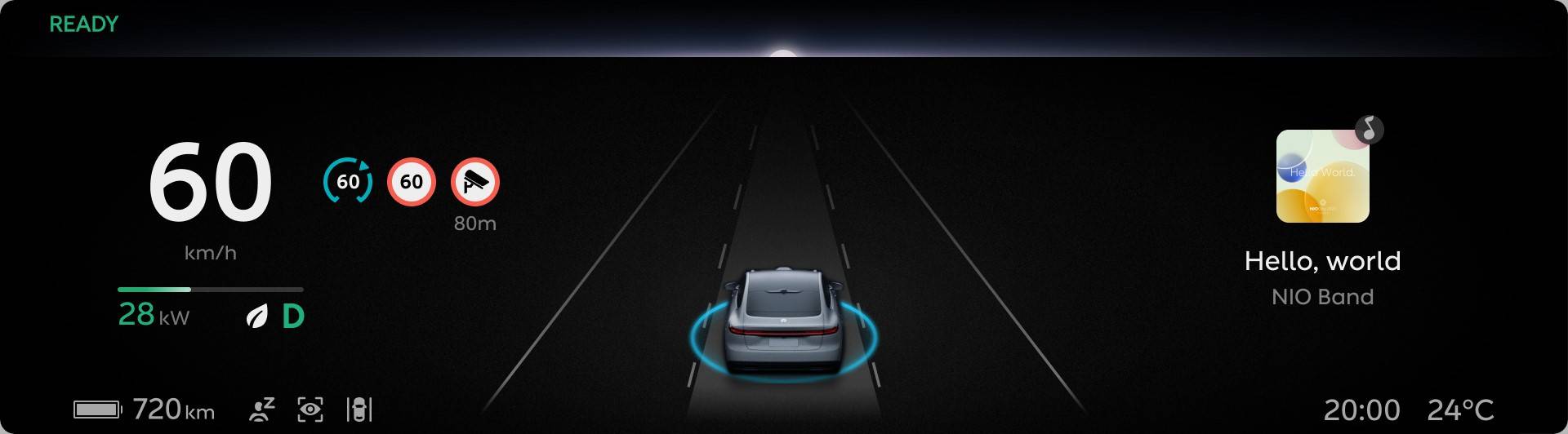

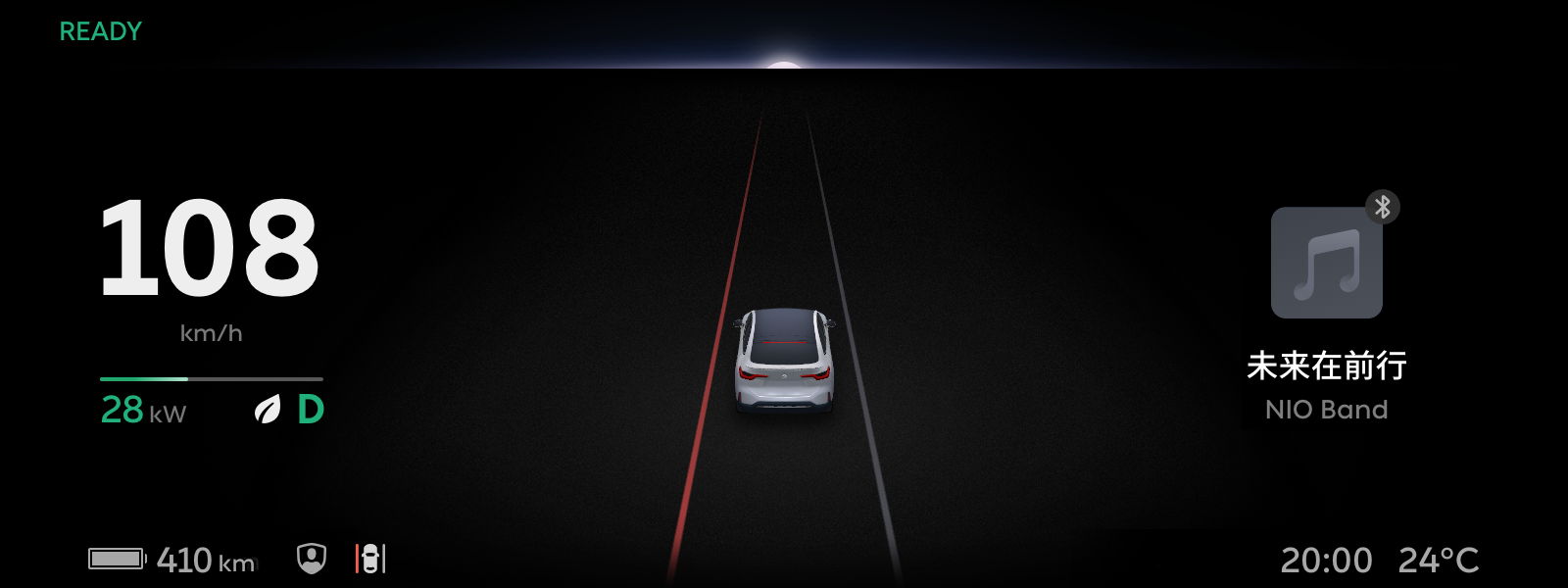

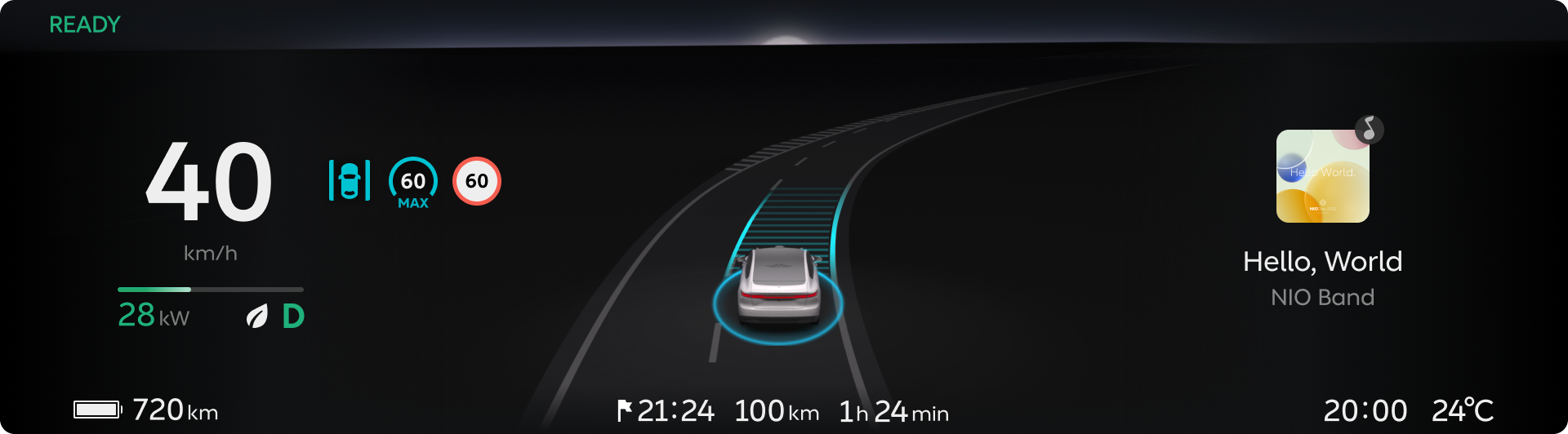

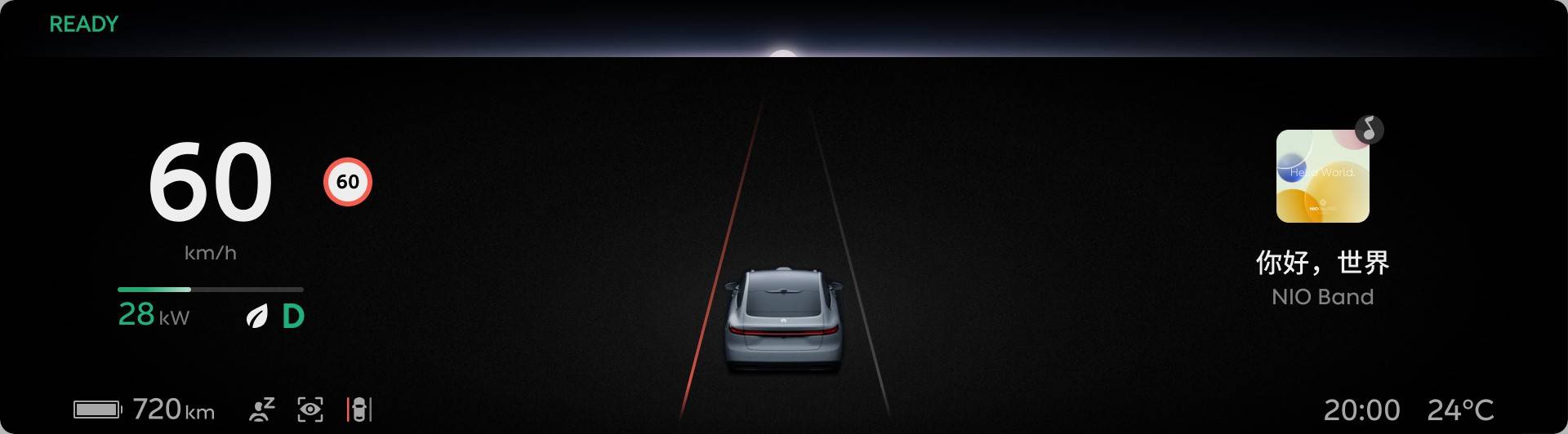

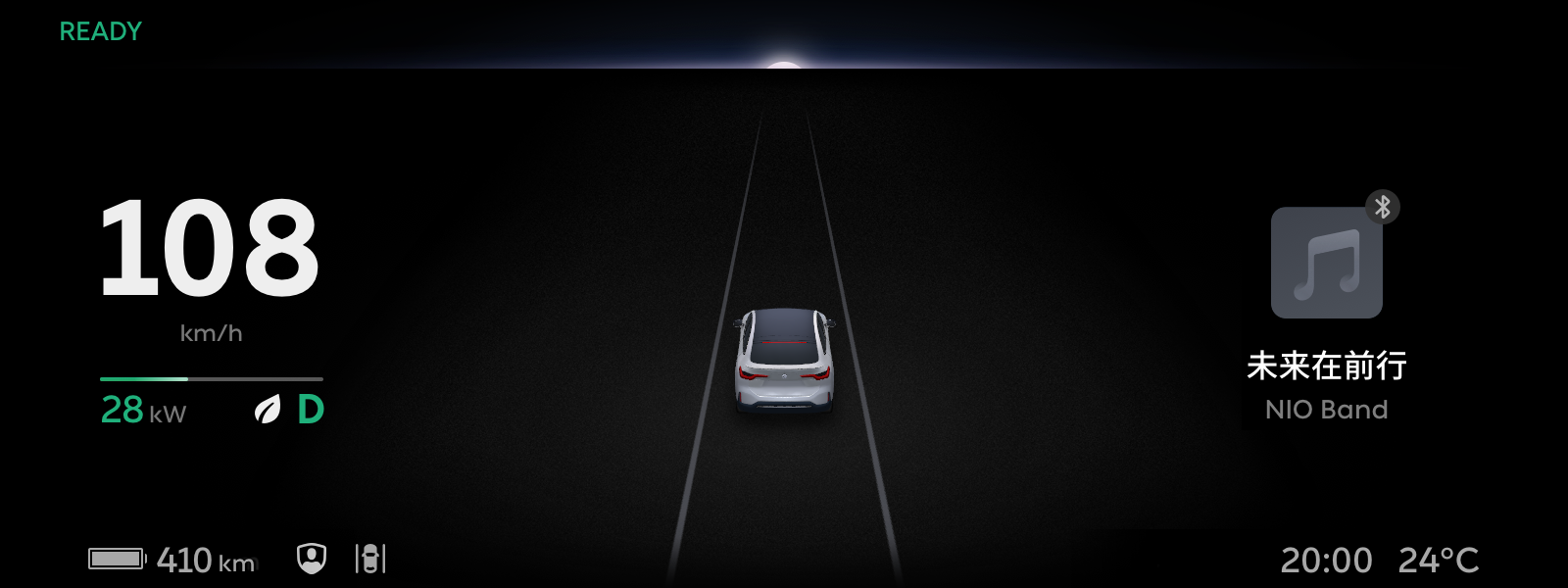

Digital Instrument Cluster Display

• ① Lane Departure Warning system status icon

• ② Lane marking display

• No status icon: the Lane Departure Warning system is not enabled.

• Gray status icon: the Lane Departure Warning system is enabled, in standby status, and not activated yet.



• White status icon and central lane marking: the Lane Keeping Assist system is active.



• Red status icon and one side of the central lane marking: there is a risk of unintentional lane departure on the corresponding side.



Precautions and Restrictions

The following situations may prevent the Lane Departure Warning system from operating as expected or cause it to automatically exit, which include but are not limited to:

• The vehicle is navigating sharp curves, such as on expressway ramps.

• Lane lines are unclear, worn, missing, overlapping, or obscured by shadows cast by other vehicles, buildings, or landscape features.

• The road section has no lane lines, such as non-standard roads, intersections, or construction areas.

• Passing through road sections with special lane markings, such as speed reduction markings and channelizing-line markings.

• Lane lines are not clearly divided, such as merging or diverging lanes, expressway ramps, urban intersections, or left-turn waiting areas.

• There are edges or other high-contrast lines on the road instead of lane lines, such as road joints or curbs.

• Lane lines cannot be or are incorrectly identified due to changes in height, such as on sloped roads.

• Lane markings cannot be recognized or are not recognized correctly due to light, such as reflection of lane markings caused by strong light, poor visibility or insufficient light caused by bad weather and or at night.

• The distance between lane markings on both sides is too wide or too narrow.

The following situations may prevent the Lane Departure Warning system from operating as expected or cause it to automatically exit due to a camera failure, which include but are not limited to:

• Changed installation position of camera.

• Blocked or dirty camera.

• Limited recognition at night.

• Dark surroundings, such as at dawn, dusk, night, in tunnels.

• Sudden changes in ambient brightness, such as tunnel entrances or exits.

• Large shadows cast by buildings, landscapes or large vehicles.

• Camera directly exposed to light.

• Severe weather such as rain, snow, fog, haze, etc.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle.

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera.

• Wet roads.

It is not recommended to use the Lane Departure Warning system in special or complex road conditions, as that may prevent the Lane Departure Warning system from operating as expected or cause it to automatically exit, which include but are not limited to:

• Water, mud, potholes, snow, ice, speed bumps, or obstacles on the road.

• Large numbers of pedestrians, bicycles, or animals on the road.

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads.

• Winding roads and sharp turns.

• Driving on the hills.

• Bumpy roads.

• Narrow roads.

• Tunnel entrances and exits.

• Non-standard roads.

• Roads without a median.

Enabling/Disabling the Lane Keeping Assist System

Enter Settings interface from the control bar at the bottom of the center display, and tap Driver Assistance > Lane Departure Warning and Assist to enable or disable this feature.

When enabled, you can select the assist levels, warning type and sensitivity:

• Assist level

  • Warning: only provides an alert feature.

  • Warning & Lane Correction: provides an alert and a slight Steer Assist.

• Warning types

  • When it is set to "Warning", the available warning types include visual, audio, and vibration.

  • When it is set to "Warning & Lane Correction", the warning types cannot be set and the default setting is visual and audio warnings.

• Sensitivity

  • Low: Gives an alarm later than normal sensitivity under the same conditions.

  • Medium: Normal sensitivity.

  • High: Gives an alarm earlier than normal sensitivity under the same conditions.

Operating conditions for the Lane Keeping Assist system:

• Your vehicle speed is about 50-130 km/h.

• Your vehicle drives normally without suddenly accelerating, decelerating or steering.

• Your vehicle is in the center of its lane and does not drive on the lane marking.

• The lane markings on at least one side are clear.

• The high-definition camera works normally and provides clear vision.

• No components of the Lane Keeping Assist system are faulty.

• Your vehicle meets all safety conditions, such as:

  • The driver is seated.

  • Your vehicle is in gear position D.

  • Anti-lock brake system, traction control system and vehicle stability control system are not triggered.

  • The traction control system and vehicle stability control system are not manually disabled.

Dynamic Environment Simulation and Display

1. Status icon of the Lane Keeping Assist system

   • No icon: Not enabled.

   • Gray icon: Standby status.

   • White lane marking: The lane marking on the corresponding side has been detected.

   • Yellow lane marking: Level 1 Lane Departure Warning.

   • Red lane marking: Level 2 Lane Keeping Assist.

2. Lane Marking Display

• The status icon is gray: The Lane Keeping Assist system is enabled, in standby status, and not activated yet.



• The status icon and the central lane marking are white: The Lane Keeping Assist system is active.



• The status icon and one side of the central lane marking is red:



  • When Warning is selected, it indicates that there is a risk of accidental departure from the lane on the corresponding side.

  • When Warning & Lane Correction is selected, it indicates that the vehicle has deviated from the lane unexpectedly, and the Lane Keeping Assist is no longer able to prevent the vehicle from deviating from the lane through a slight Steer Assist to correct lanes.

• The status icon and one side of the central lane marking are yellow: Only occurs whenWarning & Lane Correction is selected. It indicates that the Lane Keeping Assist is providing a certain Steer Assist to correct lanes at the corresponding side to reduce the possibility of the vehicle deviating from the lane.



Precautions and Restrictions

Lane Keeping Assist may fail to function as intended or be disabled automatically in some situations, including but not limited to:

• The vehicle is navigating sharp curves, such as on expressway ramps.

• The lane markings are not clear, worn, missing, interweaving, or shaded by other vehicles or buildings or landscapes.

• Passing through road sections without lane markings, such as non-standard roads, intersections and construction areas.

• Passing through road sections with special lane markings, such as speed reduction markings and channelizing-line markings.

• Passing through areas with unclear lane division, such as areas with merging or dividing lane markings, high-speed ramp crossings, urban intersection zones and left turn waiting zones.

• There are edges or other high-contrast lines on roads instead of lane markings, such as pavement joints and curbs.

• Lane markings cannot be recognized or are not recognized correctly due to height change, such as on the uphill and downhill.

• Lane markings cannot be recognized or are not recognized correctly due to light, such as reflection of lane markings caused by strong light, poor visibility or insufficient light caused by bad weather and or at night.

• The distance between lane markings on both sides is too wide or too narrow.

The following situations may prevent the Lane Keeping Assist (LKA) system from operating as expected or cause it to automatically exit due to a camera failuref, which include but are not limited to:

• Changed installation position of camera.

• Blocked or dirty camera.

• Limited recognition at night.

• Dark surroundings, such as at dawn, dusk, night, in tunnels.

• Sudden changes in ambient brightness, such as tunnel entrances or exits.

• Large shadows cast by buildings, landscapes or large vehicles.

• Camera directly exposed to light.

• Severe weather such as rain, snow, fog, haze, etc.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle.

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera.

• Wet roads.

It is not recommended to use the Lane Keeping Assist system in specific or complex road conditions, as this may result in the LKA system malfunctioning or automatically disengaging. Such conditions may include, but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles.

• Traffic conditions with a lot of pedestrians, bicycles or animals.

• Complex and changing traffic flows, such as busy intersections, freeway ramps, and congested roads.

• Winding roads and sharp turns.

• Driving on uphill and downhill.

• Driving on bumpy roads, narrow roads, non-standard roads.

• Tunnel entrances and exits.

• Roads without center medians.

Precautions and Restrictions

The following situations may lead to a camera failure that affects the performance of Emergency Active Stop, which include but are not limited to:

• Changed installation position of camera.

• Blocked or dirty camera.

• Reduced recognition capability due to dim surrounding environments, such as at dawn, dusk, night, or in a tunnel.

• Sudden changes in ambient brightness, such as tunnel entrances or exits.

• Large shadows cast by buildings, landscapes or large vehicles.

• Camera directly exposed to light.

• Severe weather such as rain, snow, fog, haze.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle.

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera.

• Wet roads.

The following situations may lead to a radar failure that affects the performance of Emergency Active Stop, which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as heavy rain, snow, fog, which may affect radar performance.

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The following situations may lead to a LiDAR failure that affects the feature of Emergency Active Stop, or even deactivates the feature. These situations include but are not limited to:

• The position of the LiDAR installation has been changed.

• Severe weather conditions such as rain, snow, fog, haze,etc.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead.

• Driving on wet or waterlogged roads.

• Water, dust, micro-scratches, oil sludge, dirt, ice, snow, tinted or transparent film or other obstructions on the LiDAR window

• Overheating of the LiDAR caused by prolonged sun exposure

• Due to the limitations of LiDAR characteristics, in rare special cases, false alarms may occur for traffic signs and high-speed anti-collision barrels in high-speed and elevated sections of road.

The targets below cannot be guaranteed to be identified, and may trigger a response, which include but are not limited to:

• Side-crossing vehicles

• Motorcycles, tricycles

The targets below will not trigger a response, which include but are not limited to:

• Pedestrians

• Bicycles

• Animals

• Traffic lights

• Traffic cones

• Walls

• Barriers

• Side-crossing vehicles

• Oncoming vehicles

• Other non-vehicle objects

The following situations may cause late recognition and response of Emergency Active Stop (EAS) because the target is not directly ahead, which include but are not limited to:

• Emergency Active Stop will not respond to targets in the sensor blind zone. For example, it cannot detect the blind spots at the corners of the vehicle and the blind spots on the sides of the vehicle.

• When approaching or turning along the road, some targets may be mis-selected or missed, resulting in the unexpected acceleration and deceleration of the vehicle.

• When going uphill, it may miss a target or misjudge the distance to the lead vehicle. When going downhill, it may accelerate the vehicle, causing it to exceed the cruising speed.

• When only part of the body of a vehicle in the adjacent lane cuts in front of your vehicle (especially when it's a larger vehicle cutting in, like a bus, truck, etc.), it may not be able to recognize and respond to the target.

• When your vehicle abruptly cuts into the rear of the vehicle ahead, or another vehicle abruptly cuts into or out of the front of your vehicle, it may not be able to recognize the target in a responsive manner.

Emergency Active Stop does not guarantee reliable target recognition in all circumstances, as its operation may be affected by special or complicated road conditions, including but not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles.

• Traffic conditions with a lot of pedestrians, bicycles or animals.

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads.

• Winding and turning roads, rapid turning roads.

• Uphill and downhill roads.

• Rough roads.

• Narrow roads.

• Tunnel entrances and exits.

• Non-standard roads

• Roads without a median

It may not be able to provide sufficient lateral grip in the following situations, including but not limited to:

• The brake feature cannot fully work (such as when brake parts are too cold, too hot, wet, etc.).

• Improper vehicle maintenance (excessive wear of the brake or tires, abnormal tire pressure, etc.).

• The vehicle is driving on special roads (such as uphill and downhill, water, mud, potholes, ice and snow roads, etc.).

The above warnings, precautions and restrictions have not fully covered all the situations that may affect the normal operation of the Emergency Active Stop system. There are many factors that may interfere with the Emergency Active Stop system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enabling/Disabling Emergency Lane Keeping

Go to the Settings interface from the control bar at the bottom of the center display, and tap Driver Assistance > Emergency Lane Keeping to turn this feature on or off.

It is not recommended to turn off this feature. When this feature is turned off, it will not be able to assist the driver by taking emergency control of the steering when there is a potential risk of a side collision.

Emergency Lane Keeping in Case of Deviation to Road Curb

When the operating conditions of Emergency Lane Keeping are met, it can provide a certain degree of steer assist if your vehicle deviates from its lane involuntarily to the roda curb without having the turn light on. At this time, the corresponding side of the central lane marking will be displayed in yellow.

Emergency Lane Keeping in Case of Deviation to Solid Lane Marking

When the operating conditions of Emergency Lane Keeping are met, ELK can provide a certain degree of Steer Assist if your vehicle deviates from its lane involuntarily to the solid lane marking without having the turn light on. At this time, the corresponding side of the central lane marking will be displayed in red.

Emergency Lane Keeping with Risk of Left Front Collision

When the operating conditions of Emergency Lane Keeping are met, ELK can provide a certain degree of steer assist if your vehicle deviates from its lane involuntarily to the left without having the turn light on when there is an oncoming vehicle in your left lane and the lane marking is clear. At this time, the left side of the central lane marking will be displayed in red.

Emergency Lane Keeping with Risk of Left Rear Collision

When the operating conditions of Emergency Lane Keeping are met, ELK can provide a certain degree of steer assist if your vehicle deviates from its lane involuntarily or actively changes lane to the left when there is a vehicle approaching rapidly from behind in your left lane and the lane marking is clear. At this time, the left side of the central lane marking will be displayed in red.

Precautions and Restrictions

The following situations may cause Emergency Lane Keeping to fail to operate as expected or exit automatically due to a camera failure. Please steer your vehicle in a timely manner. These situations include but are not limited to:

• Changed installation position of camera.

• Blocked or dirty camera.

• Reduced recognition capability due to dim surrounding environments, such as at dawn, dusk, night, or in a tunnel.

• Sudden changes in ambient brightness, such as tunnel entrances or exits.

• Large shadows cast by buildings, landscapes or large vehicles.

• Camera directly exposed to light.

• Severe weather such as rain, snow, fog, haze,etc.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle.

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera.

• Wet roads.

The following situations may cause the Emergency Lane Keeping to fail to operate as expected or exit automatically due to a radar failure. Please steer your vehicle in a time. These situations include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as rain, snow, fog, haze, which may affect radar performance.

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The following situations may lead to a LiDAR malfunction, affect Emergency Lane Keeping feature and even cause the feature to deactivate. These situations include but are not limited to:

• Changed installation position of LiDAR.

• Severe weather such as rain, snow, fog, haze.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead.

• Driving on wet or waterlogged roads.

• Water, dust, micro-scratches, oil sludge, dirt, ice, snow, tinted or transparent film or other obstructions on the LiDAR window.

• Overheating of the LiDAR caused by prolonged sun exposure.

• Due to the limitation of LiDAR characteristics, in rare special cases, false alarms may occur for the traffic signs/high-speed anti-collision barrels in high-speed/elevated sections.

Special or complex road conditions may cause the Emergency Lane Keeping System to fail to operate as intended or may exit automatically. Please steer your vehicle promptly, including but not limited to the following conditions:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles.

• Traffic conditions with a lot of pedestrians, bicycles or animals.

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads.

• Winding and turning roads, rapid turning roads.

• Driving on uphill and downhill roads.

• Rough roads.

• Narrow roads.

• Tunnel entrances and exits.

• Construction areas.

The above warnings, precautions and restrictions have not fully described all the situations that may affect the normal operation of the Emergency Lane Keeping system. There are many factors that may interfere with the Emergency Lane Keeping system. In order to avoid accidents, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enabling/Disabling Front Cross Traffic Alert

Enter the Settings interface from the bottom of the center display, and tap Driver Assistance > Front Cross Traffic Alert to enable or disable this feature.

When the operating conditions are satisfied, if a potential collision risk with the front crossing vehicle is detected, it will remind you through visual and auditory alerts on the Dynamic Environment Simulation and Display, 360 Surround View interface and Parking Assist interface.

Operating conditions for the Front Cross Traffic Alert:

• The vehicle speed is lower than 15 km/h and higher than 0 km/h.

• The speed of the front crossing vehicle is within a certain range of the normal vehicle speed.

• The front lateral radar operates normally and has a clear field of view.

• The driver is seated.

• Your vehicle is in gear position D.

Precautions and Restrictions

The targets below cannot be guaranteed to be identified, and may trigger a response, which include but are not limited to:

• Pedestrians

• Animals

• Motorcycles, electric bikes,tricycles, or icycles

• Other non-vehicle objects

The targets below will not trigger a response, which include but are not limited to:

• Oncoming vehicles driving in the same direction.

• Stationary objects.

The Front Cross Traffic Alert does not respond to targets in blind spots of the sensor. The Front Cross Traffic Alert cannot detect lateral vehicles in front of this vehicle through obstacles or parked vehicles.

For example, the Front Cross Traffic Alert cannot detect the front crossing vehicles in the following situations, which include but are not limited to:

• Parked in the innermost position.

• The parking space is at an angle.

The following situations may lead to a radar failure and affect the performance of the Front Cross Traffic Alert, which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as rain, snow, fog, haze, which may affect radar performance

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The above warnings, precautions and restrictions have not fully described all the conditions that may affect the normal operation of the Front Cross Traffic Alert system. There are many factors that may interfere with the Front Cross Traffic Alert system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enabling/Disabling Rear Cross Traffic Alert

Enter the Settings interface from the bottom of the center display, and tap Driver Assistance > Rear Cross Traffic Alert to enable or disable this feature.

When it is enabled, you can select the assist level in the Rear Cross Traffic Alert Settings:

• Warning: When the vehicle speed is lower than about 15km/h and the operating conditions are satisfied, if a potential collision risk with rear crossing vehicles from behind is detected, it will remind the vehicle in the rear through visual and auditory alerts on the digital instrument cluster, 360 Surround View interface and Parking Assist interface.

• Warning & Braking: When the vehicle speed is about 1-15km/h and the operating conditions are satisfied, besides visual and auditory alerts, the system will warn you by a brief instance of active braking if necessary, but cannot ensure that the vehicle will come to a complete stop.

Operating conditions for the Rear Cross Traffic Alert:

• The speed of the rear crossing vehicle is between about 5 and 60 km/h.

• The rear lateral radar operates normally and has a clear field of view.

• The driver is seated.

• All doors are closed.

• Your vehicle is in REVERSE.

Precautions and Restrictions

The targets below cannot be guaranteed to be identified, and may trigger a response, which include but are not limited to:

• Pedestrians

• Animals

• Motorcycles, electric bikes, bicycles, or tricycles

• Other non-vehicle objects

The targets below will not trigger a response, which include but are not limited to:

• Oncoming vehicles driving in the same direction

The Rear Cross Traffic Alert does not respond to targets in blind spots of the sensor. The Rear Cross Traffic Alert is not designed to detect vehicles behind this vehicle through obstacles or parked vehicles.

The Rear Cross Traffic Alert is not designed to detect rear crossing vehicles in the following situations, which include but are not limited to:

• Parked in the innermost position.

• The parking space is at an angle.

The following situations may lead to a radar failure and affect the performance of the Rear Cross Traffic Alert, which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as rain, snow, fog, haze, which may affect radar performance.

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The above warnings, precautions and restrictions have not fully described all the conditions that may affect the normal operation of the Rear Cross Traffic Alert system. There are many factors that may interfere with the Rear Cross Traffic Alert system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enabling/Disabling the Drowsiness and Distraction Warning System

The Advanced Driver Monitoring System monitors the driver's drowsiness and attention state.

• Drowsiness Warning



• Distraction Warning



Enter Settings interface from the control bar of the center display and tap Driving Assistance > Drowsiness Warning or Driving Assistance >Distraction Warning to enable or disable this feature.

After this feature is enabled, when the vehicle speed is 20 km/h or above, the system will keep monitoring the status and provide sound or voice warnings.

Dynamic Environment Simulation and Display

• Level 1 Alarm (take the Distraction Warning feature for example).



• Level 2 Alarm (take the Distraction Warning feature for example).



• If the driver still does not take control of the vehicle after a Level 2 alarm, the Emergency Active Stop will be activated when the normal working conditions of the system are met.

• When the following are displayed due to a system fault or malicious occlusion of the camera, it indicates that the feature is limited. Please promptly contact the NIO Service Center.

  Malicious occlusion



  System fault



Precautions and Restrictions

In some cases, the detection of Distraction Warning and Drosiness Driving behaviors may be affected or fail, resulting in the system not providing corresponding warnings, being partially unavailable or providing false alarms, such as:

• At night and in low light.

• Sunlight, opposite headlights and other direct light interference.

• While adjusting the Seat.

• In the event of eye occlusion, including but not limited to the use of dark glasses with low transmittance, polarizers, sunglasses, and eyeglass frame occlusion, etc.

• Wearing accessories such as hats, scarves and bandanas that may alter the shape of the head.

• Wearing a mask.

The above warnings, precautions and restrictions have not fully covered all the conditions that may affect the normal operation of the Advanced Driver Monitoring System. There are many factors that may interfere with the Advanced Driver Monitoring System. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enable/Disable the Auto High Beams

1. Enter the Settings page from the control bar at the bottom of the center display, and tap Light > Headlights. Select to turn on the Automatic Headlights.

2. Go to the Settings page from the control bar at the bottom of the center display, and tap Light > Auto High Beams to enable or disable this function.

3. When the Auto High Beams (AHB) are enabled:

   Push the light control lever forward to activate the Auto High Beams (AHB) function.

   Push the light control lever forward or pull it backward again to enter the standby status of the function.

4. When the Auto High Beams are disabled:

   Push the light control lever forward to turn on the high beam headlights.

   Push the light control lever forward or pull it backward again to turn off the high beam headlights.

Automatic control may not be performed under, but also not be limited to, the following situations:

• Turn on the turn light.

• Turn the steering wheel hard.

• Pass a sharp turn.

• The wiper is set to its maximum speed.

• The fog lights are on.

Only targets that satisfy the conditions will be responded to by the Auto High Beams (AHB). The targets below will not trigger a response, which include but are not limited to:

• Pedestrians.

• Cyclists (including but not limited to bicycles, motorcycles, electric bikes, tricycles, etc.).

• Other non-vehicle objects.

The above warnings do not cover all conditions that may affect the proper operation of the Auto High Beams (AHB) system. There are many factors that may interfere with the Auto High Beams system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enabling/Disabling Active Lane Change

Enter the Settings interface from the center display, and tap Driver Assistance > Active Lane Change to enable or disable this feature.

Operating conditions for the Active Lane Change:

• The driver's hands on the steering wheel.

• The Lane Centering Control is enabled and operating normally.

• The Active Lane Change is enabled and operating normally.

• The sensor features properly and the field of view is clear.

• Driving speed is at 60-130 km/h.

• The current and target lanes meet all the safety conditions to change lanes. When:

  • The lane marking on the side of the lane change is a dotted line.

  • The curvatures of the current and target lanes are small.

  • The vehicle maintains a safe distance to the vehicles in front of and behind it in the current and target lanes.

  • There is no Blind Spot Detection and Lane Change Alert and other alarms for the target lane.

  • The lane markings on both sides of the target lane are clear.

• None of the components for the Active Lane Change are faulty and the vehicle meets all safety conditions. For example:

  • No malfunction with the turn light.

  • The driver is seated.

  • The driver has fastened the seat belt.

  • All doors are closed.

  • Your vehicle is in gear position D.

  • The driver does not step on the brake pedal.

  • Anti-lock brake system, traction control system and vehicle stability control system are not triggered.

Enabling the Active Lane Change feature in Settings does not mean that the feature has been activated.

After meeting the operating conditions, you must perform a visual check to confirm the safety of the lane change environment, and then toggle the turn light lever on the corresponding side. The system will detect if your hands are on the steering wheel.

• The system will activate the Active Lane Change feature to assist the lane change if it detects that the conditions to change lanes have been met. At this time, the Dynamic Environment Simulation and Display will display the light band on the corresponding side turning blue and disappearing after a successful lane change. After the lane change is completed, please confirm that the turn light lever has been toggled back.

• The system will not perform the lane change if it detects that the conditions to change lanes has not been met and the Dynamic Environment Simulation and Display (ESD) will display the light band on the corresponding side turning red.

Before or during a lane change, toggle the turn light lever in the opposite direction of the lane change to cancel the lane change. When the following situations occur, the lane change will be interrupted, and you will be reminded through the digital instrument cluster and sound alerts of the need to take control of your vehicle:

• The Active Lane Change detects an unsafe lane change environment, such as when the activation alarms for Blind Spot Detection go off.

• Steer Assist is exited for reasons such as taking over the steering wheel control, unclear lane markings, and passing through excessively curved bends.

• Adaptive Cruise Control and Steer Assist are exited at the same time for reasons such as pressing the button and depressing the brake pedal.

Dynamic Environment Simulation and Display

• Active Lane Change is making a lane change.



• Active Lane Change suspends or cannot make a lane change.



• Active Lane Change completes the lane change.



Precautions and Restrictions

The following situations may prevent the Active Lane Change from completing the lane change or operating as expected, requiring the driver to take control of the steering wheel at any time, which include but are not limited to:

• Passing through bends with excessive curvature, such as high-speed ramps

• The lane markings of the current lane and target lane are not clear, worn, missing, crossed, or shaded by other vehicles or buildings or landscapes

• Passing through road sections without lane markings, such as non-standard roads, intersections and construction areas

• Passing through areas with unclear lane division, such as areas with merging or dividing lane markings, high-speed ramp crossings, urban intersection zones and left turn waiting zones

• Passing through road sections with special lane markings, such as speed reduction markings and channelizing-line markings

• There are edges or other high-contrast lines on roads instead of lane markings, such as pavement joints and curbs

• Lane markings cannot be recognized or are not recognized correctly due to height change, such as on the uphill and downhill

• Lane markings cannot be recognized or are not recognized correctly due to light, such as reflection of lane markings caused by strong light, poor visibility or insufficient light caused by bad weather and or at night

• The distance between the lane markings on both sides of the current lane or the target lane is too wide or too narrow

The following situations may lead to a camera failure, thus making it impossible to complete the lane change assistance, which include but are not limited to:

• Changed installation position of camera

• Blocked or dirty camera

• Limited recognition at night

• Dark surroundings, such as at dawn, dusk, night, in tunnels

• Sudden changes in ambient brightness, such as tunnel entrances or exits

• Large shadows cast by buildings, landscapes or large vehicles

• Camera directly exposed to light

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera

• Wet roads

The following situations may lead to a radar failure, thus making it impossible to complete the lane change assistance, which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as rain, snow, fog, haze, which may affect radar performance

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The following situations may lead to a LiDAR failure, affect the feature of lane change assistance, and even cause the feature to deactivate, which include but are not limited to:

• Changed installation position of LiDAR

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead

• Driving on wet or waterlogged roads

• Water, dust, micro-scratches, oil sludge, dirt, ice, snow, tinted or transparent film or other obstructions on the LiDAR window

• Overheating of the LiDAR caused by prolonged sun exposure

• Due to the limitation of LiDAR characteristics, in rare special cases, false alarms may occur for the traffic signs/high-speed anti-collision barrels in high-speed/elevated sections

The Active Lane Change may omit or misdetect obstacles in the target and current lanes. You must always confirm whether it is safe and appropriate to change lanes before and during the lane change. The targets below cannot be guaranteed to be identified, and may trigger a response, which include but are not limited to:

• Side-crossing vehicles

• Motorcycles, tricycles

The targets below will not trigger a response, which include but are not limited to:

• Pedestrians

• Bicycles

• Animals

• Traffic lights

• Walls

• Barriers

• Oncoming vehicles

• Other non-vehicle objects

It is not recommended to use Active Lane Change in special or complex road conditions, which include but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles.

• Traffic conditions with a lot of pedestrians, bicycles or animals.

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads.

• Winding and turning roads, rapid turning roads.

• Driving on uphill and downhill roads.

• Rough roads.

• Narrow roads.

• Tunnel entrances and exits.

• Non-standard roads.

• Roads without a median.

The above warnings, precautions and restrictions have not fully covered all the situations that may affect the normal operation of the Active Lane Change system. There are many factors that may interfere with the Active Lane Change system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enabling/Disabling Lane Centering Control

Enter the Settings interface from the bottom of the center display, tap Driver Assistance and choose Lane Centering Control to turn this feature on or off.

Turning on Lane Centering Control in the Settings does not mean that LCC is activated.

• Middle button: activate or deactivate Lane Centering Control

• Up button: increase or resume the cruising speed

• Down button: decrease the cruising speed

• Left button: decrease the following distance

• Right button: increase the following distance

When the operating conditions are met, press the Middle button to activate Lane Centering Control.

• If the lane markings on both sides are clear and the vehicle is in the center of the current lane, activating Steer Assist will activate Adaptive Cruise Control as well.

• If the lane markings on both sides are unclear or the vehicle is not in the center of the current lane, it will first activate Adaptive Cruise Control and start searching for lane markings, and then activate Steer Assist when the conditions are met.

Lane Centering Control is enabled at a vehicle speed of 0-180 km/h.

• If the vehicle speed is lower than 10 km/h, 10 km/h will be set as the cruising speed.

• If the vehicle speed is higher than 10 km/h but not higher than 180 km/h, the current vehicle speed will be set as the cruising speed.

When Lane Centering Control activates Adaptive Cruise Control and starts searching for lane markings, you can release the accelerator pedal, and the system will maintain the set cruising speed.

• If there is a lead vehicle, Lane Centering Control will adjust the speed of your vehicle according to the speed and distance of the lead vehicle, and the maximum speed will not exceed the cruising speed.

• When there is no vehicle ahead, Lane Centering Control will quickly adjust the speed of your vehicle to the cruising speed.

When Lane Centering Control activates Steer Assist, it will actively assist with steering control, however, please keep your hands lightly on the steering wheel. The pressure of your hands may have a slight effect on the steer assist control, please pay close attention to the driving situation, and be ready to take control of the steering wheel at any time to control the direction of the vehicle.

The steering wheel turns when Lane Centering Control is controlling the steering. When Lane Centering Control is actively accelerating, the accelerator pedal does not move; when it’s decelerating, the brake pedal may move.

Working Condition for Lane Centering Control:

• The speed does not exceed 180 km/h.

• High-definition cameras, radar and LiDAR functioning properly with a clear view

• No components of Lane Centering Control are faulty

• The feature cannot be activated when the steering angle of the steering wheel is too large

• Your vehicle meets all safety conditions, such as:

  • The driver's hands on the steering wheel.

  • The driver is seated.

  • The driver has fastened the seat belt.

  • All doors are closed.

  • Your vehicle is in gear position D.

  • The driver does not step on the brake pedal.

  • Anti-lock brake system, traction control system and vehicle stability control system are not triggered.

Adjusting the speed under Lane Centering Control

When Lane Centering Control is active, you can increase or decrease the cruise speed by pressing on the Up or Down button on the left side of the steering wheel. You can customize the cruise speed adjustment from the menu by tapping Driver Assistance > Cruise Speed Adjustment.

The available options are:

• Press for 1 km/h, Press and Hold for 5 km/h

  • Press the Up or Down button on the left side of the steering wheel to increase/decrease the cruise speed by 1 km/h

  • Press and hold the Up or Down button on the left side of the steering wheel to increase/decrease the cruise speed to the closest 5 km/h increment, that is, if the speed is 82 km/h, press and hold the Up button on the left side of the steering wheel, and the speed will be increased to 85 km/h

• Press and hold for 1 km/h, press for 5 km/h

  • Press and hold the Up or Down button on the left side of the steering wheel to increase or decrease the cruise speed by 1 km/h.

  • Press the Up or Down button on the left side of the steering wheel to increase or decrease the cruise speed to the closest 5 km/h increment, if the speed is 82 km/h, press the Up button on the left side of the steering wheel, and the speed will be increased to 85 km/h

The maximum set speed for Lane Centering Control is 180 km/h.

The minimum set speed for Lane Centering Control is 10 km/h, but it allows the vehicle to decelerate to 0 km/h when following the vehicle ahead.

Adjusting the Time-Distance to the Lead Vehicle

When Lane Centering Control is activated or awaiting activation, the following time-distance can be set to one of five levels.

• Press the left Right button on the steering wheel to increase the following time-distance by one level.

• Press the left Left button on the steering wheel to decrease the following time-distance by one level.

Takeover and Resumption

When driving with Lane Centering Control, you can take over the vehicle by firmly pressing the accelerator pedal or turning the steering wheel. When you take over by firmly pressing the accelerator pedal, Lane Centering Control will no longer respond to the movements of the target lead vehicle.

When you stop firmly pressing the accelerator pedal, Lane Centering Control will immediately resume Adaptive Cruise Control.

When you take over by turning the steering wheel, Steering Assist will temporarily switch to standby, but Adaptive Cruise Control will remain on and search for lane lines. In this case, steering is under your control.

When you stop turning the steering wheel, if the lane lines on both sides are clear and your vehicle is in the center of the current lane, Steering Assist will automatically resume.

If Lane Centering Control is deactivated by pressing or the brake pedal, it can be reactivated by pressing the left Up button on the steering wheel, and this will resume the previously set cruise speed.

After following the lead vehicle to a stop, Lane Centering Control can be reactivated by pressing the left Up button on the steering wheel or the accelerator pedal and this will resume the previously set cruise speed.

When Lane Centering Control is reactivated, Adaptive Cruise Control will engage first and start searching for lane lines. If the lane lines on both sides are clear and your vehicle is in the center of the current lane, Steering Assist will engage.

Disabling Lane Centering Control

Lane Centering Control will be deactivated, and will no longer be in active control of speed and direction, and alert you audibly when:

• The steering wheel button is pressed.

• The brake pedal is pressed.

In addition, when the working conditions are no longer met, Lane Centering Control will be automatically deactivated, and you should take control of the brake pedal, accelerator pedal and steering wheel immediately after that to control the speed and direction of the vehicle.

Dynamic Environment Simulation and Display

An intelligent driving status indicator light has been added next to the real-time vehicle speed on the left side of the digital instrument cluster. The intelligent driving status indicator light can be used to understand the features of intelligent driving that can be activated now and that is running now, as well as the cruise speed status of intelligent driving.

Feature	Active state	To be activated	Loss of lateral control
Lane Centering Control
Adaptive Cruise Control			/

Keep your hands on the steering wheel and eyes on the road ahead when driving with Lane Centering Control active.

• When the system detects that your hands have been off the steering wheel and your eyes have been off the road ahead for a period of time, Dynamic Environment Simulation and Display will display "Please keep your hands on the steering wheel" or "Please concentrate on driving", and alert you audibly.

• When the system detects that your hands have been still off the steering wheel and your eyes have been still off the road ahead after a period of time, Dynamic Environment Simulation and Display will display "LCC is about to be deactivated, please put your hands on the steering wheel immediately", or "LCC is about to be deactivated, please take control of the vehicle immediately", and keep alerting you audibly.

• When the system detects that your hands have been always off the steering wheel and your eyes have been always off the road ahead after a period of time, Dynamic Environment Simulation and Display will display "Emergency Active Stop is activated, the vehicle is about to stop" and alert you audibly, accompanied by a NOMI voice prompt of "The vehicle is stopping" and double flashing lights.

When the system detects that your hands are on the steering wheel and your eyes are on the road ahead, the warning will disappear.

Maintaining Safe Distance

When Dynamic Environment Simulation and Display displays a warning, it means that there is a risk of collision because the maximum deceleration available to Lane Centering Control can no longer maintain a safe distance, and you need to take control of the brake pedal and steering wheel immediately to control the speed and direction of the vehicle.

Go Notifier

Lane Centering Control stops the vehicle as the lead vehicle stops:

• If the lead vehicle starts, Lane Centering Control will follow it and actively start the vehicle as well. You need to pay attention to the surrounding environment at all times to prevent collision accidents from occurring.

• When the vehicle stops as the lead vehicle stops for more than about 5 seconds, before it starts again to follow the lead vehicle, it will alert you audibly.

• When the vehicle stops as the lead vehicle stops for more than about 5 seconds, and the system detects obstacles ahead that may affect driving, Dynamic Environment Simulation will display "The lead vehicle starts moving" prompt, and you need to re-activate Following Start by pressing the Up button on the left side of the steering wheel or stepping on the accelerator pedal after checking the surroundings.

• After approximately 5 minutes, Lane Centering Control will be deactivated and Electric Parking will be activated instead.

After Lane Centering Control stops the vehicle as the lead vehicle stops, it will start the vehicle again only when the distance to the lead vehicle exceeds about 4 meters.

Intelligent Speed Assist

Once activated, when the vehicle detects new speed limit signs, it will ask you to manually confirm adjusting your cruise speed to the new speed limit.

Enter the Settings interface from the bottom of the center display, tap Driver Assistance > Intelligent Speed Assist to turn this feature on or off.

Precautions and Restrictions

The following situations may cause the camera to misidentify obstacles, affect the performance of Lane Centering Control, or even cause deactivation, which include but are not limited to:

• Changed installation position of camera.

• Blocked or dirty camera.

• Limited recognition at night.

• Dark surroundings, such as at dawn, dusk, night, in tunnels.

• Sudden changes in ambient brightness, such as tunnel entrances or exits.

• Large shadows cast by buildings, landscapes or large vehicles.

• Camera directly exposed to light.

• Severe weather such as rain, snow, fog, haze.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle.

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera.

• Wet roads.

The following situations may cause the radar to misidentify obstacles, affect the performance of Lane Centering Control, or even cause deactivation, which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as heavy rain, snow, fog, which may affect radar performance.

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The following situations may cause the LiDAR to misidentify obstacles, affect the performance of Lane Centering Control, or even cause deactivation, which include but are not limited to:

• Changed installation position of LiDAR.

• Severe weather such as rain, snow, fog, haze.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead.

• Driving on wet or waterlogged roads.

• Water, dust, micro-scratches, oil sludge, dirt, ice, snow, tinted or transparent film or other obstructions on the LiDAR window.

• Overheating of the LiDAR caused by prolonged sun exposure.

• Due to the limitation of LiDAR characteristics, in rare special cases, false alarms may occur for the traffic signs/high-speed anti-collision barrels in high-speed/elevated sections

The vehicle will only respond to Lane Centering Control when the conditions are met The targets below cannot be guaranteed to be identified, and may trigger a response, which include but are not limited to:

• Transverse vehicles.

• Motorcycles, tricycles.

The targets below will not trigger a response, which include but are not limited to:

• Pedestrians.

• Bicycles.

• Traffic cones.

• Animals.

• Traffic lights.

• Walls.

• Barriers.

• Oncoming vehicles.

• Other non-vehicle objects.

The following situations may cause the late recognition and response of Lane Centering Control because the target is not directly ahead, which include but are not limited to:

• Lane Centering Control will not respond to targets in the sensor blind zone. For example, it cannot detect the blind spots at the corners of the vehicle and the blind spots on the sides of the vehicle.

• When approaching or turning along the road, some targets may be mis-selected or missed, resulting in the unexpected acceleration and deceleration of the vehicle.

• When going uphill, it may miss a target or misjudge the distance to the lead vehicle. When going downhill, it may accelerate the vehicle, causing it to exceed the cruising speed.

• When only part of the body of a vehicle in the adjacent lane cuts in front of your vehicle (especially when it’s a larger vehicle cutting in, like a bus, truck, etc.), it may not be able to recognize the target in a responsive manner and you need to take over in time.

• When your vehicle abruptly cuts into the rear of the vehicle ahead, or another vehicle abruptly cuts into or out of the front of your vehicle, it may not be able to recognize the target in a responsive manner and you need to take over in time.

When driving in special or complex road conditions, it is not recommended to activate Lane Centering Control because it may affect the performance of Adaptive Cruise Control and Keeping, or even cause deactivation, which include but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles.

• Traffic conditions with a lot of pedestrians, bicycles or animals.

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads.

• Winding and turning roads, rapid turning roads.

• Uphill and downhill roads.

• Rough roads.

• Narrow roads.

• Tunnel entrances and exits.

• Non-standard roads.

• Roads without a median.

In the following ss, if the vehicle is driving at a speed that is too fast in relation to the lead vehicle, the Lane Centering Control may be subject to limited control, resulting in an inability to maintain a safe distance responsively. It may be unable to provide sufficient braking force in the following situations, which include but are not limited to:

• The brake feature cannot fully work (such as when brake parts are too cold, too hot, wet, etc.)

• Improper vehicle maintenance (excessive wear of the brake or tires, abnormal tire pressure, etc.)

• The vehicle is driving on special roads (such as uphill and downhill, water, mud, potholes, ice and snow roads, etc.)

The above warnings, precautions and restrictions do not exhaust all the situations that may affect the proper operation of Lane Centering Control. Lane Centering Control may be affected by many factors. To avoid safety accidents, be sure to always pay attention to traffic, road and vehicle conditions and drive with caution.

Enabling Adaptive Cruise Control

Enter the Settings interface from the bottom of the center display, tap Driver Assistance, and chooseAdaptive Cruise Control to enable or disable this feature.

Choosing Adaptive Cruise Control in the Settings does not mean that ACC is activated.

• Middle button : activate or exit Adaptive Cruise Control (ACC)

• Up button: increase or resume the cruising speed

• Down button: decrease the cruising speed

• Left button: decrease the following distance

• Right button: increase the following distance

When the operating conditions of Adaptive Cruise Control are met, press the Middle button on the left side of the steering wheel to activate Adaptive Cruise Control.

Adaptive Cruise Control can be enabled at the vehicle speed of 0-180 km/h.

• If the vehicle speed is lower than 10 km/h, 10 km/h will be set as the cruising speed.

• If the vehicle speed is higher than 10 km/h but not higher than 180 km/h, the current vehicle speed will be set as the cruising speed.

When Adaptive Cruise Control is activated, you can release the accelerator pedal to maintain the set cruising speed.

• If there is a lead vehicle, Adaptive Cruise Control will adjust the speed of your vehicle according to the speed and distance of the lead vehicle, and the maximum speed will not exceed the cruising speed.

• When there is no vehicle ahead, Adaptive Cruise Control will quickly adjust the speed of your vehicle to the cruising speed.

When driving with Adaptive Cruise Control, you can press the accelerator pedal hard at any time to take over your vehicle in a short amount of time. At this time, Adaptive Cruise Control will no longer respond to the target lead vehicle, and your vehicle will be completely under your control. When you release the accelerator pedal, your vehicle will return to the cruising speed.

When Adaptive Cruise Control actively accelerates your vehicle, the accelerator pedal will not move. When Adaptive Cruise Control decelerates your vehicle, the brake pedal may move.

After you exit Adaptive Cruise Control by pressing the Middle button on the left side of the steering wheel or pressing the brake pedal, you can activate it again by pressing the Up button on the left side of the steering wheel, and you can restore the vehicle speed to the previously set cruising speed. If you press the Up button on the left side of the steering wheel while pressing the accelerator pedal, the current speed will be set as the cruising speed. The maximum set speed is 180 km/h (110 mph).

Operating Conditions of Adaptive Cruise Control :

• The high-definition camera, LiDAR and radar function normally, and the field of vision is clear.

• No components of Adaptive Cruise Control are faulty.

• Your vehicle meets all safety conditions, such as:

  • The driver is seated.

  • The driver's hands on the steering wheel.

  • The driver has fastened the seat belt.

  • All doors are closed.

  • Your vehicle is in gear position D.

  • The driver does not step on the brake pedal.

  • Anti-lock brake system, traction control system and vehicle stability control system are not triggered.

• The feature cannot be activated when the steering angle of the steering wheel is too large.

• The speed does not exceed 180 km/h.

Disabling Adaptive Cruise Control

Adaptive Cruise Control is deactivated when:

• The steering wheel button is pressed

• The brake pedal is pressed.

In addition, when the conditions for Adaptive Cruise Control are not met, it will be automatically deactivated. You can take control of the vehicle immediately after Adaptive Cruise Control is deactivated.

After Adaptive Cruise Control is deactivated, the vehicle may slow down due to regenerative braking, and will not be able to maintain the set distance to the lead vehicle.

Adjusting Adaptive Cruise Control Speed

When Adaptive Cruise Control is active, go to the Settings interface from the control bar of the center display, tap Driver Assistance > Cruise Speed Adjustment, and select the appropriate way to adjust the cruising speed.

The cruise speed can be adjusted by:

• Press for 1 km/h, Press and hold for 5 km/h.

  • Press the Up or Down button on the left side of the steering wheel to increase or decrease the cruise speed by 1 km/h.

  • Press the Up or Down button on the left side of the steering wheel to increase/decrease the cruise speed to the closest 5 km/h increment, that is, if the speed is 82 km/h, press+hold the Up button on the left side of the steering wheel, and the speed will be increased to 85 km/h

• Long press for 1 km/h and short press for 5 km/h.

  • Long press the Up or Down button on the left side of the steering wheel to increase or decrease the cruise speed by 1 km/h.

  • Press the Up or Down button on the left side of the steering wheel to increase or decrease the cruise speed to the closest 5 km/h increment, that is, if the speed is 82 km/h, press the Up button on the left side of the steering wheel, and the speed will be increased to 85 km/h

The maximum set speed for Adaptive Cruise Control is 180 km/h.

The minimum set speed for Adaptive Cruise Control is 10 km/h, but it allows the vehicle to decelerate to 0 km/h when following the vehicle ahead.

Adjusting Following Time and Distance with Adaptive Cruise Control

When Adaptive Cruise Control is active or in standby, the following time and distance can be adjusted in 5 levels.

• Press the Right button on the left side of the steering wheel to set the following time and distance to a farther setting.

• Press the Left button on the left side of the steering wheel to set the following time and distance to a closer setting.

Dynamic Environment Simulation and Display (ESD)

An intelligent driving status indicator light has been incorporated into the digital instrument cluster, situated to the left of the real-time vehicle speed. This indicator light enables the user to comprehend the features of intelligent driving that can be activated at this time and those that are currently operational. Furthermore, the status of cruise speed in intelligent driving can be discerned.

Feature	Active state	To be activated	Loss of lateral control
Lane Centering Control
Adaptive Cruise Control			/

When Dynamic Environment Simulation and Display displays a warning to drive cautiously, it means that there is a risk of collision because the maximum deceleration available to Adaptive Cruise Control can no longer maintain a safe distance, and you need to take control of the brake pedal and steering wheel immediately to control the speed and direction of the vehicle.

Go Notifier

When the vehicle is stopped when following the lead vehicle under Adaptive Cruise Control：

• If the lead vehicle starts, Adaptive Cruise Control will follow it and actively start the vehicle as well. You need to pay attention to the surrounding environment at all times to prevent collision accidents from occurring.

• When the vehicle is stopped for no more than about 5 minutes when following the lead vehicle, starting while following is available under Adaptive Cruise Control.

• After the vehicle is stopped for about 5 minutes when following the lead vehicle, Electric Parking Brake will be activated and Adaptive Cruise Control will be deactivated.

• If the system detects obstacles ahead that may affect driving, making it impossible to follow the lead vehicle, you may, after checking the surroundings, reactivate Adaptive Cruise Control by stepping on the accelerator pedal.

Intelligent Speed Assist

Once activated, when the vehicle detects new speed limit signs, it will ask you to manually confirm adjusting your cruise speed to the new speed limit.

Enter the Settings interface from the bottom of the center display, and tap Driver Assistance > Intelligent Speed Assist to turn this feature on or off.

Precautions and Restrictions

The following situations may lead to a camera failure, affect the performance of Adaptive Cruise Control , or even cause deactivation, which include but are not limited to:

• Changed installation position of camera.

• Blocked or dirty camera.

• Reduced recognition capability due to dim surrounding environments, such as at dawn, dusk, night, or in a tunnel.

• Sudden changes in ambient brightness, such as tunnel entrances or exits.

• Large shadows cast by buildings, landscapes or large vehicles.

• Camera directly exposed to light.

• Severe weather such as rain, snow, fog, haze.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle.

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera.

• Wet roads.

The following situations may lead to a LiDAR failure, affect the performance of Adaptive Cruise Control, or even cause deactivation, which include but are not limited to:

• Changed installation position of LiDAR.

• Severe weather such as rain, snow, fog, haze.

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead.

• Driving on wet or waterlogged roads.

• Water, dust, transparent vehicle coverings, color-changing film, micro-scratches, oil sludge, dirt, ice, snowfall and other obstructions on the LiDAR window.

• Overheating of the LiDAR caused by prolonged sun exposure.

• Due to the limitation of LiDAR characteristics, in rare special cases, false alarms may occur for the traffic signs/high-speed anti-collision barrels in high-speed/elevated sections

The following situations may lead to a radar failure, affect the performance of Adaptive Cruise Control, or even cause deactivation, which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as heavy rain, snow, fog, which may affect radar performance.

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

Only the vehicles that meet the conditions will trigger a response by Adaptive Cruise Control. The targets below cannot be guaranteed to be identified, and may trigger a response, which include but are not limited to:

• Transverse vehicles.

• Motorcycles, tricycles.

The targets below will not trigger a response, which include but are not limited to:

• Pedestrians.

• Animals.

• Traffic lights.

• Walls.

• Barriers.

• Oncoming vehicles.

• Bicycles.

• Other non-vehicle objects.

The following situations may cause late recognition and response in Adaptive Cruise Control because the target is not directly ahead, which include but are not limited to:

• Adaptive Cruise Control will not respond to targets in the sensor blind zone. For example, Adaptive Cruise Control cannot detect the blind spots at the corners of the vehicle and the blind spots on the sides of the vehicle

• When approaching or turning along a road, some targets may be mis-selected or missed, resulting in unexpected acceleration and deceleration of the vehicle

• When going uphill, it may miss a target or misjudge the distance to the lead vehicle. When going downhill, it may accelerate the vehicle, causing it to exceed the cruising speed

• When only part of the body of a vehicle in the adjacent lane cuts in front of your vehicle (especially when it’s a larger vehicle cutting in, like a bus, truck, etc.), it may not be able to recognize the target in a responsive manner and you need to take over in time

• When your vehicle abruptly cuts into the rear of the vehicle ahead, or another vehicle abruptly cuts into or out of the front of your vehicle, it may not be able to recognize the target in a responsive manner and you need to take over in time

When driving in special or complex road conditions, it is not recommended to activate Adaptive Cruise Control because it may affect the performance of Adaptive Cruise Control, or even cause deactivation, which include but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles.

• Traffic conditions with a lot of pedestrians, bicycles or animals.

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads.

• Winding and turning roads, rapid turning roads.

• Uphill and downhill roads.

• Rough roads.

• Narrow roads.

• Tunnel entrances and exits.

• Non-standard roads.

• Roads without a median.

In the following situations, if the vehicle speed is too high relative to the lead vehicle, Adaptive Cruise Control may be subject to limited control, which will result in an inability to maintain the safe distance in a responsive manner, which include but are not limited to:

• Sudden maneuvers of the vehicle ahead (such as sudden turns, acceleration, deceleration, etc.).

• Another vehicle abruptly cutting in or out of the front of your vehicle.

• Your vehicle abruptly cutting in behind the vehicle ahead.

• Your vehicle driving towards a stationary or slow-moving target at a high speed.

It may not be able to provide sufficient braking force in the following situations, which include but are not limited to:

• The brake feature cannot fully work (such as when brake parts are too cold, too hot, wet, etc.).

• Improper vehicle maintenance (excessive wear of the brake or tires, abnormal tire pressure, etc.).

• The vehicle is driving on special roads (such as uphill and downhill, water, mud, potholes, ice and snow roads, etc.).

The above warnings, precautions and restrictions have not fully covered all the situations that may affect the normal operation of the Adaptive Cruise Control system. There are many factors that may interfere with the Adaptive Cruise Control system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enabling and Disabling Parking Camera

You can enable the parking camera in the following ways:

• Swipe right from the home interface of the center display to enter the Quick Access interface, and tap Surround View icon to open the 360° surround view.

• Enter the application center from the center display and tap Parking to open the memory view (360° surround view or dual-view).

• Engage the vehicle in R gear and open the memory view (360° surround view or dual-view).

• After setting the custom feature of the Middle button on the right side of the steering wheel to Surround View, to press+hold it will activate the 360° surround view.

• Wake up NOMI, enable Parking with your voice, and enable the 360° surround view.

You can tap on the Settings icon in the upper right side of the Parking Camera interface and select to turn off the warning sound. You should take full responsibility for any risks that may arise from disabling the warning sound.

Parking Camera Interface

The parking camera consists of two interfaces: 360° surround view and dual-view. Tap the button on the 360° surround view to switch the interfaces.

Button	Feature
	Switch to the dual-view.
	Switch to the 360° surround view.
	Quick Access.
	Switch to the hub view.

Parking Camera View

After opening the Dual-View interface, you can switch to the front view and rear view by switching between the Drive (D) gear and the Reverse (R) gear, or tap the 3D view, front view, rear view, left and right hub view, front hub view and rear hub view in the lower left area of the center display to switch between different views.

When using the 3D view, you can adjust the viewing angle by swiping with one finger, adjust the viewing distance by zooming in with two fingers and adjust the viewing height by swiping up and down with two fingers.

Adjusting the Brightness of the Parking Camera

Auto Adjustment

Tap Quick Access in the Parking Camera interface to find Brightness Adjustment, then select Auto. The brightness of the center display can be automatically adjusted along with the brightness of the environment.

Manual Adjustment

Tap Quick Access in the Parking Camera interface to find Brightness, then slide the brightness adjustment slider to manually adjust the brightness of the central display.

Dynamic Steering View

After the feature is activated, the viewing angle of the front and rear reversing images will be adjusted according to the rotation angle of the steering wheel, helping users expand their reversing view and improving parking safety.

Enter the application center from the bottom of the center display, tap Parking, and turn on Dynamic Steering View in the Parking settings.

Dynamic Transparent Chassis

Dynamic transparent chassis refers to a transparent effect that can be presented, via technical processing, on the road images collected by the camera in advance when the vehicle is moving, and transmitted to the center display of the vehicle so that the road conditions can be seen in the vehicle.

You can enable this feature on the Settings interface of the parking camera. After the dynamic transparent chassis is enabled, the transparency of the model during driving can be customized, which includes four options: Opaque, Low, Medium and High.

Dynamic Blind Spot

Due to the relative positioning of the cameras and the body, there is a dynamic blind spot range covering 20 centimeters around the model of your vehicle in the 360° Surround View. Please pay attention to the actual situation around your vehicle when parking.

Enabling Shiftless Advanced Parking Assist with Fusion

Shiftless Advanced Parking Assist with Fusion parks the vehicle as follows:

1. Parking space search:

   • Manual parking space search: Enter the Dual-view Image interface and open Parking Space Search. Drive forward slowly at a speed of lower than 16 km/h, and stop after the instrument cluster or center diaplay show that a parking space has been found. Keep the brake on, check and choose a safe and suitable parking space.

   • Auto parking space search: When the road conditions and system conditions are met, drive forward slowly at a speed of lower than 16 km/h. When a parking space is found in the background, the Parking Assist button will appear on the Map interface. Touch the button and stop the vehicle according to the text prompts on the interface. Keep the brake on, check and choose a safe and appropriate parking space.

2. Parking:

   • Select a safe and suitable parking space, and follow the instructions in the center display to allow the vehicle to perform the parking maneuvers. Keep checking the surroundings to ensure that the vehicle is parked safely.

3. Parking completed：

   • When Parking is completed, the Dual-view Image interface will prompt P inthe instrument cluster.

Details are as follows:

1. Parking Space Search

   Before searching for a parking space, the vehicle must meet the following conditions:

   • The vehicle speed is lower than 16 km/h.

   • The vehicle is in the D or R gear position.

   • All doors are closed.

   • The driver is seated.

   • ACC or LCC is not enabled.

   • Ultrasonic sensors and surround-view cameras function properly with a clear view.

   • No system error.

   • Anti-lock brake system, traction control system and vehicle stability control system are not triggered.

   • Traction control system, vehicle stability control system are not disabled.

   • Not available in ECO+ Mode.

   When the above conditions are met, you can initiate Parking Space Search in any of the following ways:

   • Where the parking camera is off, say a command like "I want to park"or "Park the vehicle" to wake up NOMI, which will open the Dual-view Image interface directly and enter Parking Space Search.

   • Swipe right on the center display to enter the Quick Access interface, tap Parking Assist, enter the Dual-view Image interface and open Parking Space Search.

   • Put your vehicle in Reverse, and tap the button in the upper left corner to open Parking Space Search.

   • Tap the parking camera to enter the 360° image interface, tap the button in the upper left corner to open Parking Space Search.

   After turning on Parking Space Search feature, keep the vehicle at a distance of 0.5 to 1.5 meters from the target parking space, while driving at a speed of less than 16 km/h to search for a parking space.

   During the search for a parking space, when a white "P" appears on the center display, it means that the system has found a parking space on the corresponding side. If a "P" appears on both sides, it means that the system has found parking spaces on both sides.

   Stop the vehicle at this time, keep the brake on, and check whether the parking space is safe and suitable. If multiple parking spaces are found, you can manually select the appropriate parking space on the Dual-view Image interface.



   Note 开始搜索车位后，若爱车挂入 R 挡并后退，车位搜索将保持。

   After the vehicle starts searching a parking space, if you shift into REVERSE and reverse the vehicle, it will continue searching.

   Caution 若车速大于约16 公里/小时，车位搜索会退出。

   If the vehicle speed is above 16 km/h, the parking space search will stop.

   Caution 若搜索车位时，车辆前进方向与道路方向偏角过大，会影响最终泊车的效果。

   When searching for parking spaces, parking may not be successful if the vehicle’s direction has significantly deviated from the direction of the road.

   Caution 狭窄通道上的泊车空位或者狭窄的泊车空位可能不会被选为停车位，因为不具备必要的操作空间。视觉融合泊车辅助功能不支持在车位内开启车位搜索，并且进行移库的操作。

   Parking spaces on narrow roads or spaces that are too narrow may not be selected due to a lack of space.

   Shiftless Advanced Parking Assist with Fusion does not support parking space search and lateral shift in a parking space.

   Caution 视觉融合泊车辅助可以识别车位内无障碍车位标识，识别成功后，左下方的车位界面中的无障碍车位会出现对应图标显示。非车位内的无障碍物标识暂不支持识别，比如竖立的金属牌，文字标识牌等。此外，该类型车位的识别可能会存在一定误差，请以实际情况为准，按需选择泊入。

   Shiftless Advanced Parking Assist with Fusion can be used to identify the barrier-free parking space sign in the parking space. After successful identification, the barrier-free parking space will display the corresponding icon on the lower-left corner of the parking space interface. Currently, the identification of barrier-free signs that are not located within parking spaces, such as standing metal plates and text signs, is not supported. Additionally, this type of parking space may be misidentified. Please select a parking space according to the actual situation.

   Warning 您必须始终自行检查并确认系统搜索到的停车位安全且合适泊车，切勿依赖视觉融合泊车辅助搜索合适的停车位。不可在高速路段以及城市快速路段使用该功能。不可在拖挂模式下使用该功能。

   • You must always check and confirm if the detected parking space is safe and suitable for parking. Do not rely solely on Shiftless Advanced Parking Assist with Fusion to search for suitable parking spaces.

   • This feature is not available on high-speed roads and urban expressways.

   • Never use this feature in the Trailer Mode.

   • The system may misidentify parking spaces on roads, at entrances, in bushes, etc. You need to determine if the parking space is suitable.

   • Shiftless Advanced Parking Assist with Fusion cannot determine if the detected parking space is legitimate. You need to confirm the legitimacy before starting the parking procedure.

2. Parking

   Select a safe and suitable parking space, release the steering wheel and brake pedal according to instructions displayed on the interface, and then initiate the S-APA with Fusion feature. During the parking process, the interface will display the current gear and the remaining length of the route in this gear as a reference. Keep checking the surroundings to ensure the safety of the parking process.

   After selecting a parking space, you can de-select it by tapping the space again before releasing the brake pedal.

   When the vehicle is parked, the "P" on the left or right side of the vehicle in the digital instrument cluster will turn green.

   Caution 请在车辆提示“请松开刹车和方向盘”后，再释放制动踏板，以免泊车功能退出，车辆后退。

   Please only release the brake pedal when you receive the prompt “Release the brake pedal and the steering wheel” on the center display. Otherwise, Shiftless Automatic Parking Assist will cancel and the vehicle will move backwards.

   Warning 释放制动踏板前，请确保双手和手臂不在方向盘轮廓和运行范围内，以免方向盘快速转动导致受伤 。但请随时准备通过踩下制动踏板暂停功能或接管车辆。

   Before releasing the brake pedal, make sure that your hands and arms do not interfere with the steering wheel to avoid any injuries caused by its rapid movement. When parking, always be prepared to apply the brakes to pause the process or take over.

   Warning 在狭小场地使用视觉融合泊车辅助功能，限制了传感器准确检测障碍物位置的能力，可能导致车辆或周围物体损坏的风险上升。

   Initiating Shiftless Advanced Parking Assist with Fusion in a narrow parking space may affect the performance of the sensors, which can increase the risk of damaging the vehicle or surrounding objects.

   Warning 泊车过程中，您作为行车安全负责人，需实时关注车辆周边环境，确保泊车过程的安全，并做好随时接管车辆的准备。尤其需要重点关注周围是否有行人、儿童、动物，和其他细、尖、矮、悬空等超声波传感器检测受限的障碍物。

   You are responsible for driving safely. Always pay attention to your surroundings when parking, ensure that the parking process is safe, and be prepared to take over at any time. In particular, you should pay special attention to pedestrians, children, or animals near your vehicle, and other fine, pointed, low, or suspended obstacles the ultrasonic sensors may not be able to detect.

   Any retrofits or modifications made to the steering wheel, including but not limited to steering wheel cover, steering wheel modification, and counterweight ring, will increase the parking risk caused by failed or affected Shiftless Advanced Parking Assist with Fusion.

   The center display only shows available parking spaces that Shiftless Automatic Parking Assist is capable of parking in, which are subject to both the size of the parking space and its surroundings. If you spot any obstacles that suddenly appear around the car while parking, take over immediately as the system may not apply the brakes in time.

3. Parking Completed



   The vehicle is properly parked when the Dual-view Image interface prompts a "P" on the left or right side of the vehicle in the digital instrument cluster turns green.

   After parking, you may need to make further adjustments to the vehicle in order to ensure that the vehicle is in the best parking position.

   Before leaving, make sure that the electric parking brake is activated and the vehicle is in Park gear.

   Caution 受周围环境影响，系统可能会提前完成泊车，需要您酌情调整车辆位置。

   Parking may be finished in advance due to the surroundings. In this case, you may need to adjust the vehicle’s position manually.

Pausing Parking

During the process of parking under Shiftless Advanced Parking Assist with Fusion, you can lightly step on the brake pedal to slow the vehicle down without disengaging the feature; only when you keep stepping on the brake pedal until the speed is reduced to 0 km/h, will the feature be suspended. In addition, stepping on the accelerator pedal during parking will also suspend the parking.

If you actively intervene with the steering wheel, the parking feature will be suspended.

Intervention includes, but is not limited to, the process of perpendicularly backing into a parking space with Shiftless Advanced Parking Assist with Fusion active, if the system detects that there may be a safety risk or the parking result cannot be guaranteed, the system will pause parking and ask you whether to continue parking.

After parking is paused, check the surroundings to ensure that it is safe to continue parking, then release the brake pedal, and tap the “Resume Parking” button on the center display to re-activate Shiftless Advanced Parking Assist with Fusion.

Disabling Shiftless Advanced Parking Assist with Fusion

You can deactivate the parking operation process manually in the following ways. Take over control of the speed and direction of your vehicle after actively disengaging Shiftless Advanced Parking Assist with Fusion:

• Step on the brake pedal and shift gears

• When Shiftless Advanced Parking Assist with Fusion is suspended, tap the "Stop Parking" button on the Dual-view Image interface.

• Actively exit the Dual-view Image interface

In addition, when Shiftless Advanced Parking Assist with Fusion is active, the following situations will cause the ongoing parking to stop, requiring you to take over the vehicle in time:

• Too close to an obstacle.

• Front trunk, liftgate or any door is open.

• Electric parking brake is activated.

• Anti-lock brake system, traction control system and vehicle stability control system triggered.

• Driver leaves seat.

• Shiftless Advanced Parking Assist with Fusion has been suspended for more than about 30 seconds.

• Too many front and rear adjustments.

• The overall parking process has timed out.

• System fault.

When Shiftless Advanced Parking Assist with Fusion is deactivated abnormally, the "P" in the instrument cluster will turn red.

Precautions and Restrictions

Shiftless Advanced Parking Assist with Fusion may not be able to function as expected when the vehicle is driving under the following road conditions, which include but are not limited to:

• Do not activate Shiftless Advanced Parking Assist with Fusion when the road surface is slanted or sloped. Shiftless Advanced Parking Assist with Fusion is only designed for use on road surfaces with no gradients.

• Do not activate Shiftless Advanced Parking Assist with Fusion if the road surface is uneven or there are steps on the road. Shiftless Advanced Parking Assist with Fusion is designed for use on flat roads only.

• Do not activate Shiftless Advanced Parking Assist with Fusion if there is water, mud, potholes, ice and snow, speed bumps, and obstacles on the road.

• The curb material is special or cannot be detected. If parked improperly, the tires and wheel rims of the vehicle are at risk of being damaged by the curb, and you need to promptly take over the vehicle.

• When the road surface is slanted or the slope is beyond the supported range, the success rate of Shiftless Advanced Parking Assist with Fusion cannot be guaranteed.

• If the angle of the slanted parking space exceeds the supported range, the parking space will not be released, and the success rate for parking cannot be guaranteed.

Ultrasonic sensors may have limited detection of the following obstacles, requiring you to be ready to take over the vehicle at any time, so as to prevent property damage or personal injury, which include but are not limited to:

• Pedestrians, children, animals, etc.

• Thin, pointed, short, and suspended obstacles, such as ground locks, low stone piers, low cylinders, thin rods, sharp objects, etc.

• Wall corners, parking lot columns, etc.

Ultrasonic sensors may have limited detection in the following situations, resulting in Shiftless Advanced Parking Assist with Fusion being unable to function or not functioning as expected, which includes but is not limited to:

• One or more ultrasonic sensors are damaged, misplaced, or obscured (such as by mud or ice)

• Severe weather like rain, snow, fog, and haze affect the performance of ultrasonic sensors

• Sensors are affected by other electrical equipment or installations that can cause interference

The surround-view camera may have limited detection in the following situations, resulting in Shiftless Advanced Parking Assist with Fusion being unable to function or not functioning as expected, which includes but is not limited to:

• The left and right side mirrors or the front and rear of the vehicle are damaged, resulting in an abnormal position of the surround-view camera

• The surround-view camera is soiled (such as by mud or ice) or obscured

• Under strong sunlight or dappled tree shade

• Reflective ground or water on the ground

• Poor lighting conditions (dark), strong reflection from the ground, or poor visibility (heavy rain, heavy snow, dense fog)

• A parking space of an unconventional size (too narrow or too wide), or a tile-paved parking space

• Worn, unclear, covered, or overlapping parking space lines

• Cylindrical, square and other shaped pillars near the parking space

• Parking space at a corner

• The system may not be able to judge and exclude parking spaces with no-parking markings, cones, restricted-stop signs, ground locks, or other special parking spaces

• The system may not be able to exclude parking spaces with obstacles, such as pedestrians, bicycles, tricycles, low debris, bricks, etc.

Shiftless Advanced Parking Assist with Fusion may not be able to function as expected when the vehicle is driving in the following situations, which include but are not limited to:

• Any addition or modification of the steering wheel, which will increase the risk of parking and may cause the Shiftless Advanced Parking Assist with Fusion to not work, or not function as expected, which includes but is not limited to: installing a leather steering wheel cover, or modifying the steering wheel or weight ring, etc.

• Do not activate Shiftless Advanced Parking Assist with Fusion if a trailer is attached to the rear of the vehicle.

• Do not activate Shiftless Advanced Parking Assist with Fusion if the vehicle is fitted with snow chains or a spare wheel.

• Do not activate Shiftless Advanced Parking Assist with Fusion if a loaded object protrudes into the area surrounding the vehicle.

• Non-original tires or low tire pressure will affect the driving trajectory of Shiftless Advanced Parking Assist with Fusion. When Shiftless Advanced Parking Assist with Fusion is active, make sure the tires are original and properly inflated.

• After changing the tire size and specifications, you need to update the relevant parameters at the After-sales Services. Currently only the tire models specified by us are supported; any modification of the vehicle's tire size and specifications may affect parking performance.

Shiftless Advanced Parking Assist with Fusion may not be able to function as expected due to the following target parking space conditions, which include but are not limited to:

• The target parking space is adjacent to the roadside fence, high walls, street lights, trees, bushes, pillars, suspended obstacles such as railings, distribution boxes, chargers, etc., which will affect the final parking effect and may even cause vehicle damage.

• The target parking space is on a curve, which will affect the final parking effect.

• Do not activate Shiftless Advanced Parking Assist with Fusion when the target parking space is at an angle.

• Do not activate Shiftless Advanced Parking Assist with Fusion when there are obstacles such as unlocked ground locks, cones, shopping carts, and lampposts in the target parking space.

Do not activate Shiftless Advanced Parking Assist with Fusion when the following conditions may lead to poor vision of the observed environment while driving, which include but are not limited to:

• Any one of the left and right side mirrors is blurred, damaged or in an abnormal position.

• The surround-view camera is blurry, damaged, or in an unusual position.

• Inclement weather (rain, snow, fog, haze, etc.) results in poor visibility.

• Poor vision at night or due to insufficient light.

Do not activate Shiftless Advanced Parking Assist with Fusion repeatedly in the following situations, which include but are not limited to:

• After vigorous driving or repeated parking operations, which may trigger overheating protection of the steering system. Do not activate Shiftless Advanced Parking Assist with Fusion for prolonged periods of time or repeatedly.

The above warnings, precautions and restrictions have not fully covered all the situations that may affect the normal operation of the Shiftless Advanced Parking Assist with Fusion system. There are many factors that may interfere with the Shiftless Advanced Parking Assist with Fusion system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.
